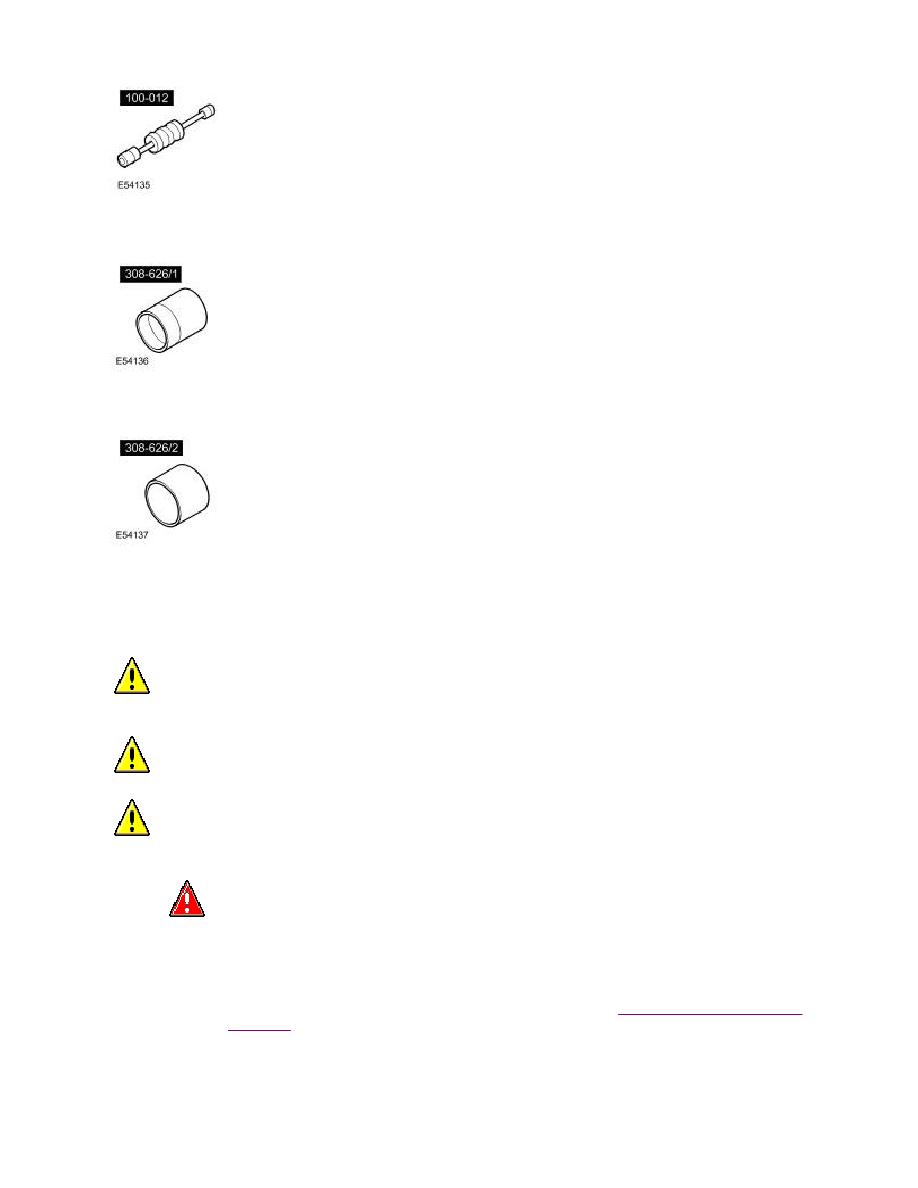

Halfshaft RH (47.10.02) (page 2 of 7)


Impulse extractor
100-012 (LRT-99-004)



Installer halfshaft oil seal
308-626/1



Installer/Guide halfshaft oil seal
308-626/2


Removal

   CAUTION: Angularly Adjusted Roller (AAR) joints, used at the inboard end of some halfshafts have no

internal retaining mechanism and can separate.

   CAUTION: Do not allow halfshafts to hang unsupported at one end or joint damage will occur.

   CAUTION: Do not store or install halfshafts with joints at maximum articulation or damage may occur to

the joint

1 .

   WARNING: Do not work on or under a vehicle supported only by a jack. Always support the

vehicle on safety stands.

  Raise and support the vehicle.

2 .

Drain the differential lubricant. For additional information, refer to

Differential Draining and Filling

(54.15.02)

 (Section 205-03)

3 .

  Remove the wheels and tires.
