Axle Tube (47.10.42)

Axle Tube (47.10.42)

Removal

Installation

1 .

Remove the RH halfshaft. For additional information, refer to

Halfshaft RH (47.10.02)

 (Section 205-

04)

2 .

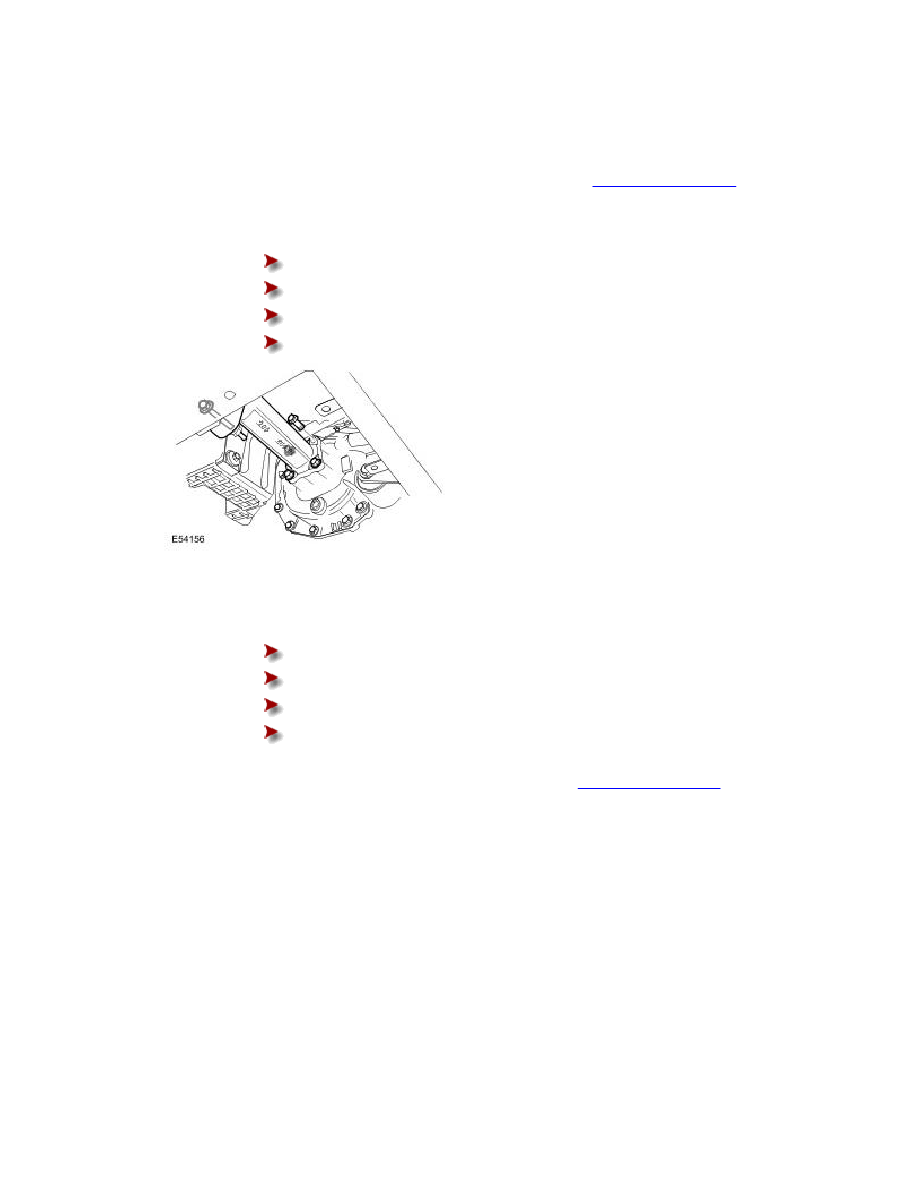

  Remove the axle tube.

Remove the bolt from the bushing.

Remove the 4 bolts.

Rotate and remove the axle tube.

Remove and discard the O-ring seal.

1 .

  Install the axle tube.

Clean the component mating faces.

Install a new O-ring seal.

Tighten the 4 axle tube bolts to 50 Nm (37 lb.ft).

Tighten the axle tube bushing bolt to 63 Nm (46 lb.ft).

2 .

  Install the RH halfshaft. For additional information, refer to

Halfshaft RH (47.10.02)

 (Section 205-04)
