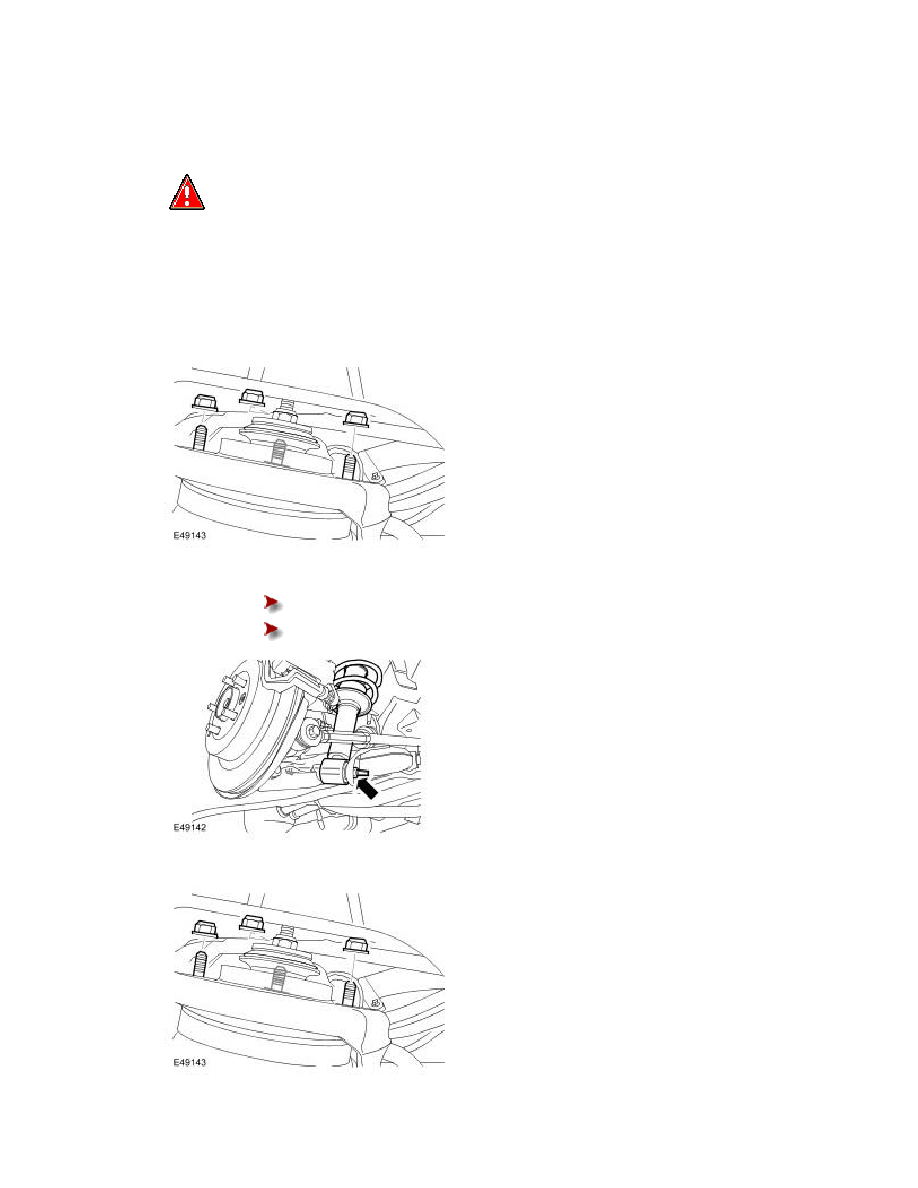

Shock Absorber & Spring Assembly(64.30.11.99)

Shock Absorber and Spring Assembly (64.30.11/99)

Removal

1 .

   WARNING: Do not work on or under a vehicle supported only by a jack. Always support the

vehicle on safety stands.

  Raise and support the vehicle.

2 .

  Remove the wheel and tire.

3 .

  Loosen the 3 spring and shock absorber retaining nuts.

4 .

  Disconnect the shock absorber and spring assembly from the lower arm.

Using a jack and a suitable block of wood, support the base of the shock absorber.

Remove the nut and bolt.

5 .

  Remove the shock absorber and spring assembly retaining nuts.
