Description & Operation (page 3 of 10)

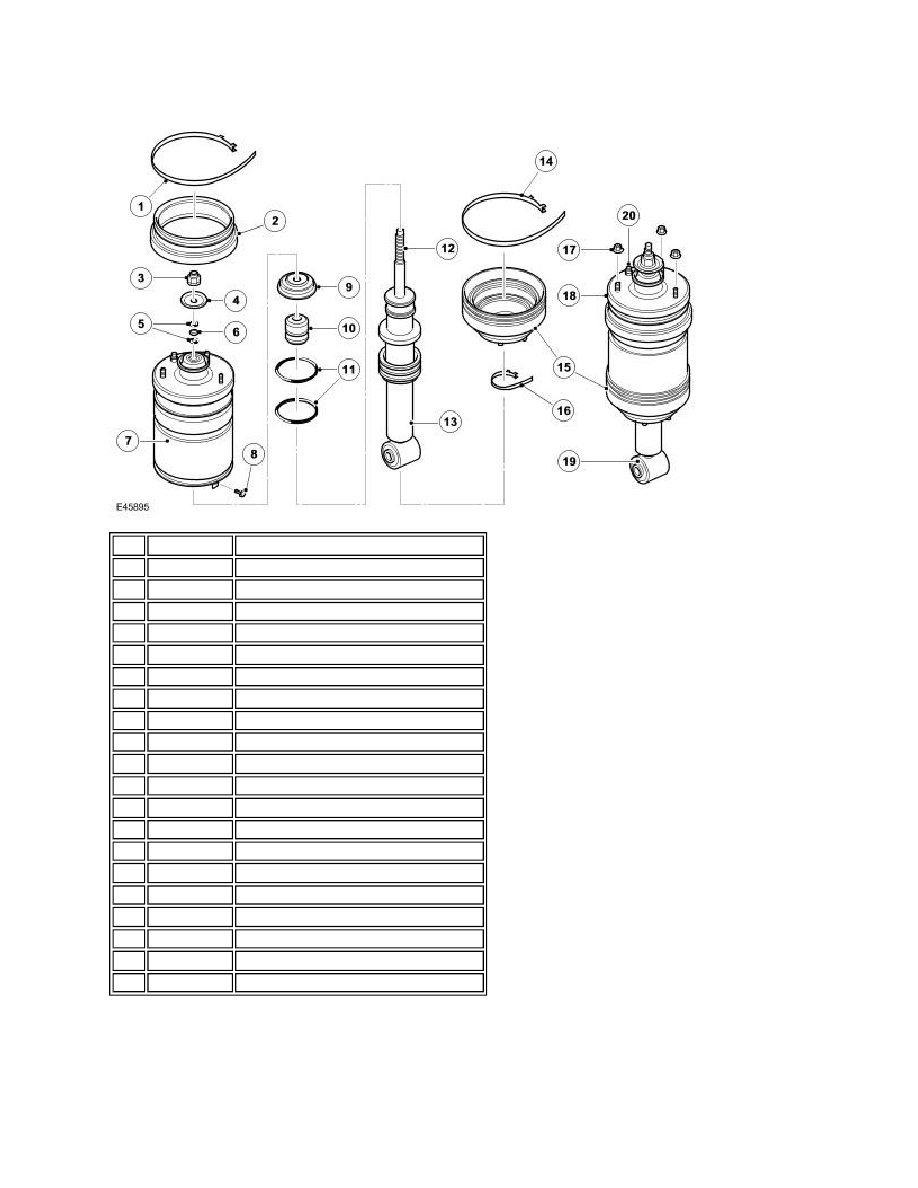

DAMPER MODULE - AIR SUSPENSION






NOTE:


The damper module comprises an air spring assembly, top mount and a damper assembly. The damper and air spring
are only serviceable as complete assemblies.

Item Part Number

Description

1

 -

Strap*

2

 -

Upper gaitor*

3

 -

Self-locking nut*

4

 -

Rebound washer*

5

 -

O-ring - Damper rod*

6

 -

Spacer - Damper rod*

7

 -

Air spring*

8

 -

Retaining pin - Air spring sleeve support*

9

 -

Bump washer*

10

 -

Spring aid*

11

 -

O-ring - Air sleeve support (2 off)*

12

 -

Damper rod

13

 -

Damper assembly

14

 -

Strap*

15

 -

Lower gaitor*

16

 -

Strap*

17

 -

Self-locking nut (3 off)

18

 -

Top mount assembly

19

 -

Bush

20

 -

Voss connector



* Shows service items
