Upper Arm Ball Joint (60.15.02)

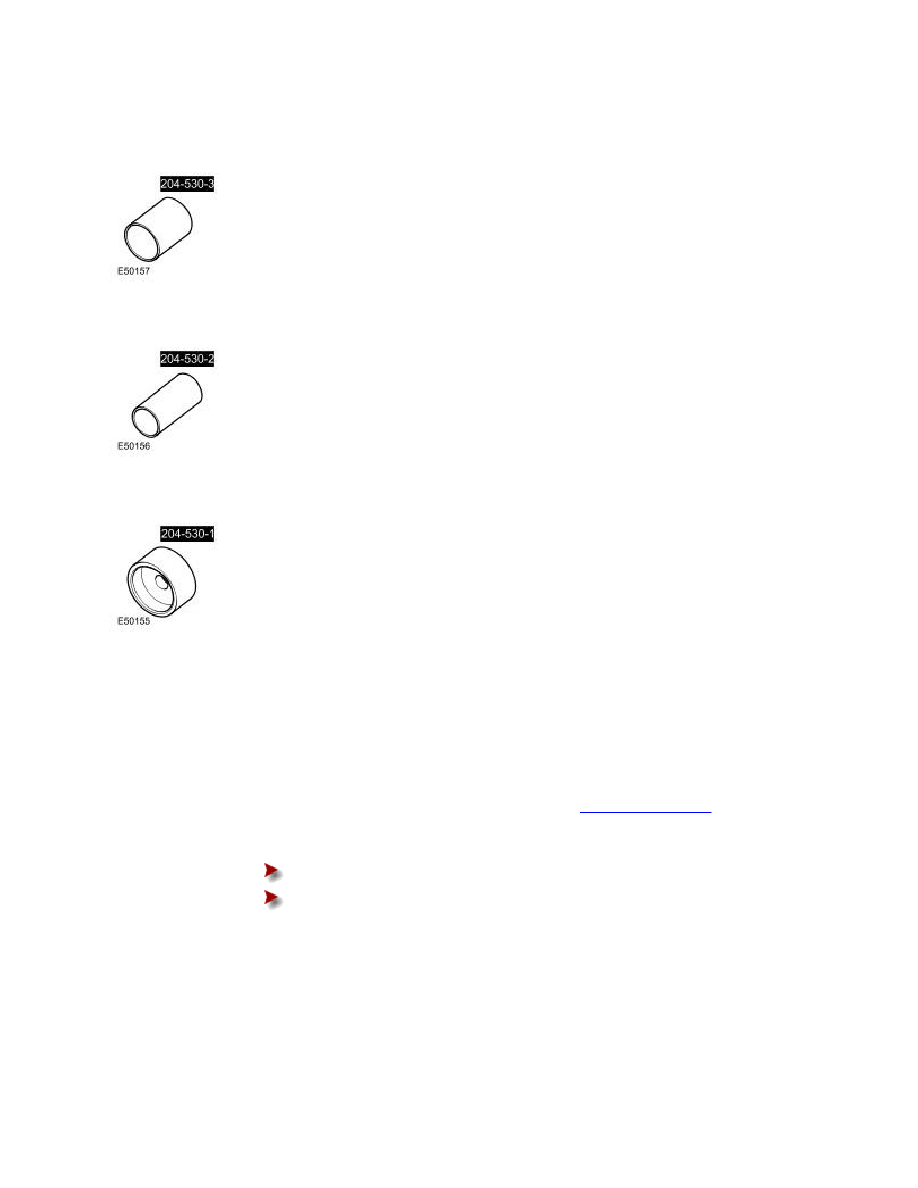

Special Service Tools




Ball joint remover/installer
204-530-1





Ball joint remover/installer
204-530-2





Ball joint remover/installer
204-530-3


Removal

NOTE:









This procedures shows removal and installation of the upper arm ball joint.

1 .

  Remove the upper arm. For additional information, refer to

Upper Arm (60.35.01)

 (Section 204-01)

2 .

  Remove the dust seal.



Remove the seal retainer.



Remove the circlip.

3 .

  Using the special tools, remove the ball joint.
