Seat Control Unit Sub-Systems (page 2 of 2)
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- Description
SEATSSeat Control Unit Sub-Systems · page 2 of 2
SEATS
DESCRIPTION AND OPERATION
76-5-5

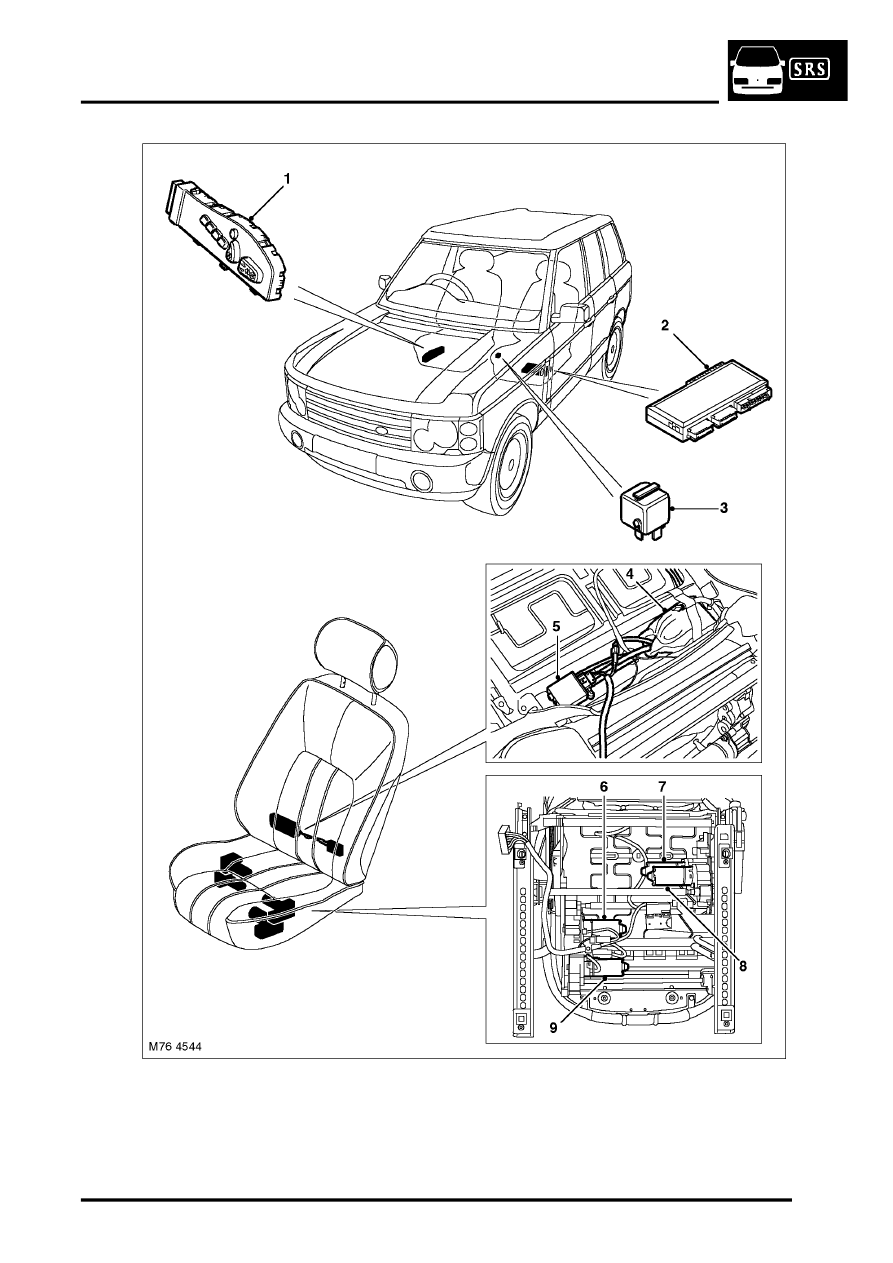

1 Seat switch panel
2 Body Control Unit (BCU)
3 Seat relay
4 Lumbar pump
5 Lumbar deflate solenoid valve
6 Seat squab motor
7 Seat cushion up/down motor
8 Seat forward/backward motor
9 Seat cushion front up/down motor
