SRS Component Layout – Sheet 2 of 2
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- SRS Component Layout – Sheet 2 of 2
RESTRAINT SYSTEMSSRS Component Layout – Sheet 2 of 2
RESTRAINT SYSTEMS
75-4
DESCRIPTION AND OPERATION
SRS Component Layout – Sheet 2 of 2

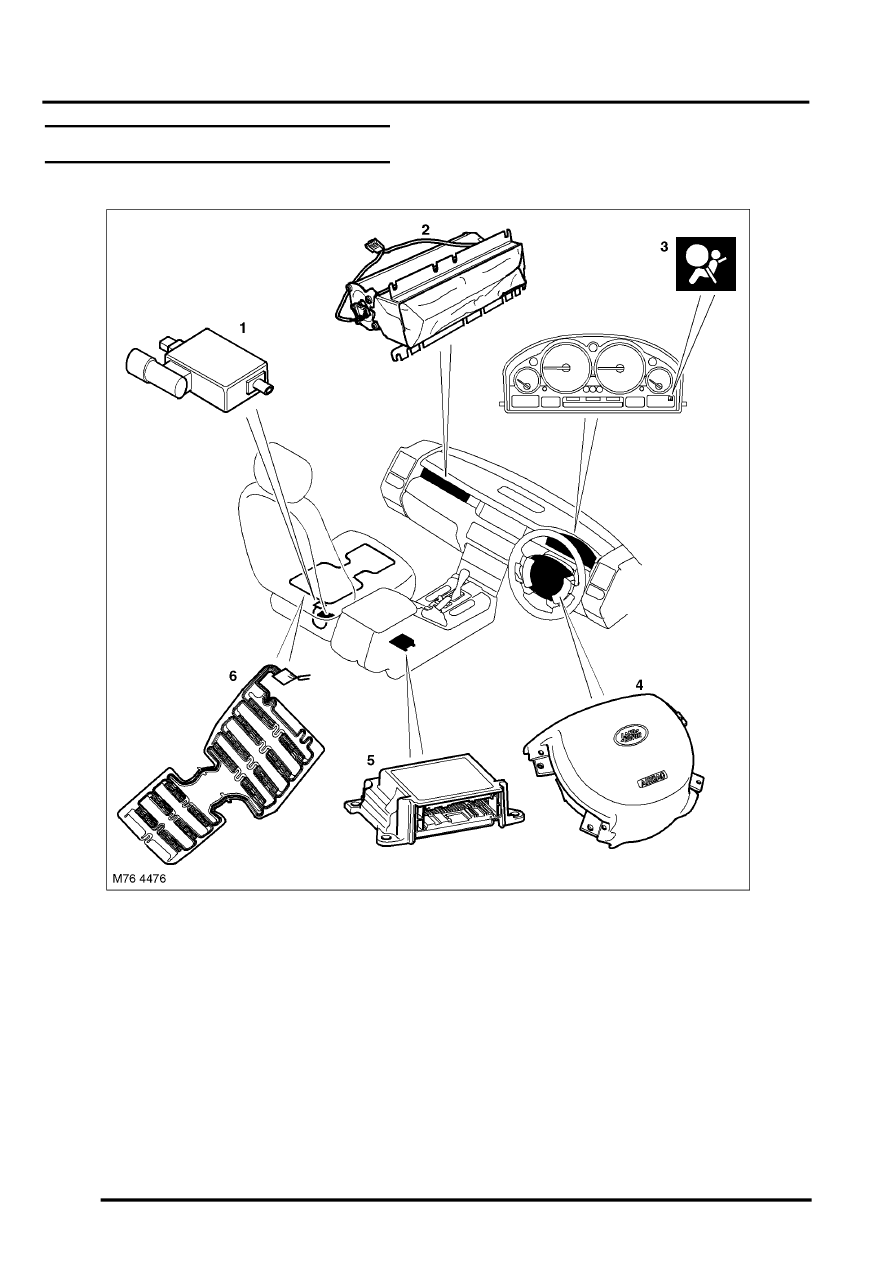

1 Seat occupancy module
2 Passenger airbag
3 Airbag warning lamp
4 Driver airbag
5 DCU
6 Seat occupancy sensor
