SRS Component Layout – Sheet 1 of 2
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- SRS Component Layout – Sheet 1 of 2
RESTRAINT SYSTEMSSRS Component Layout – Sheet 1 of 2
RESTRAINT SYSTEMS
DESCRIPTION AND OPERATION
75-3

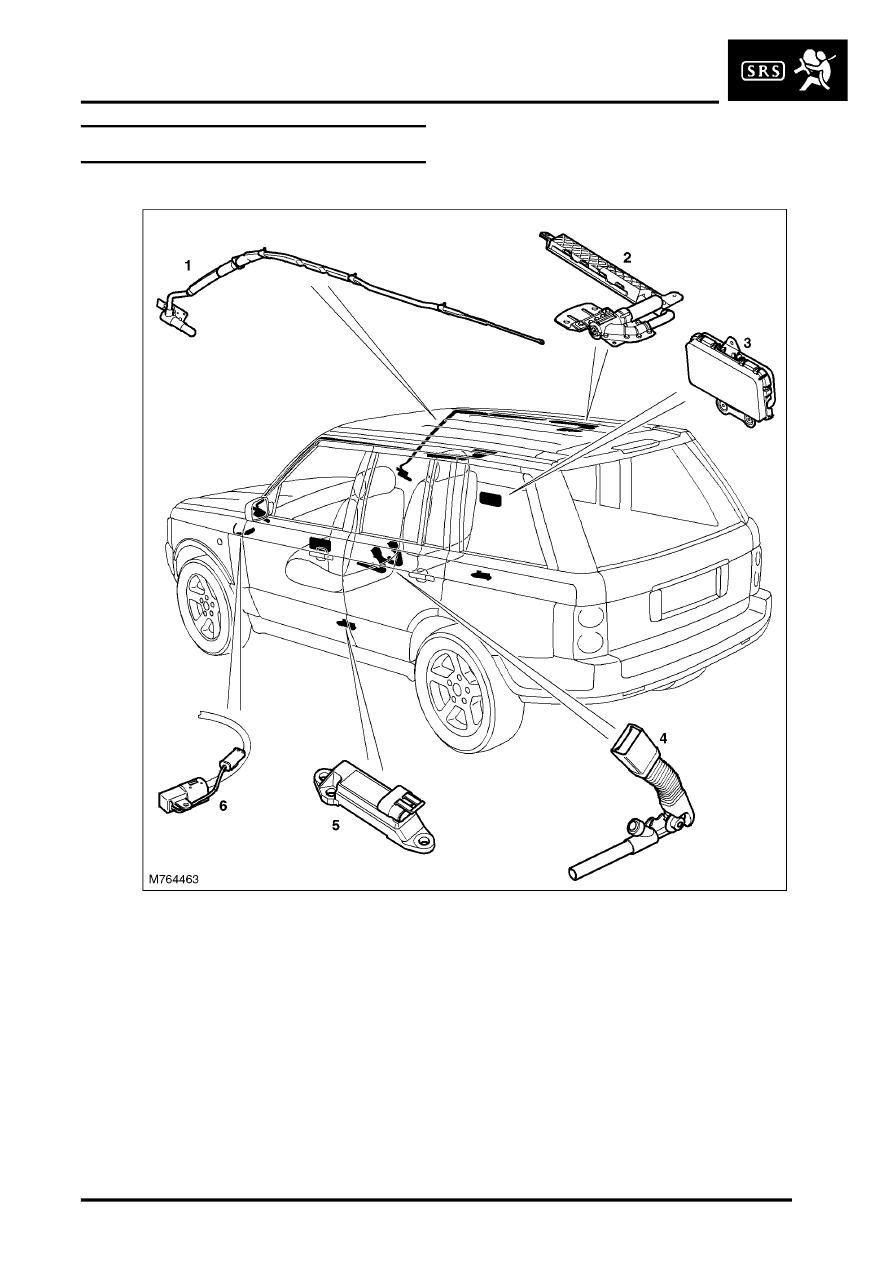

SRS Component Layout – Sheet 1 of 2
1 Front head airbag
2 Rear head airbag
3 Side airbag
4 Pretensioner
5 Side impact sensor
6 Battery disconnection unit
