PDC ECU (page 2 of 2)

DRIVING AIDS

86-10-4 DESCRIPTION AND OPERATION

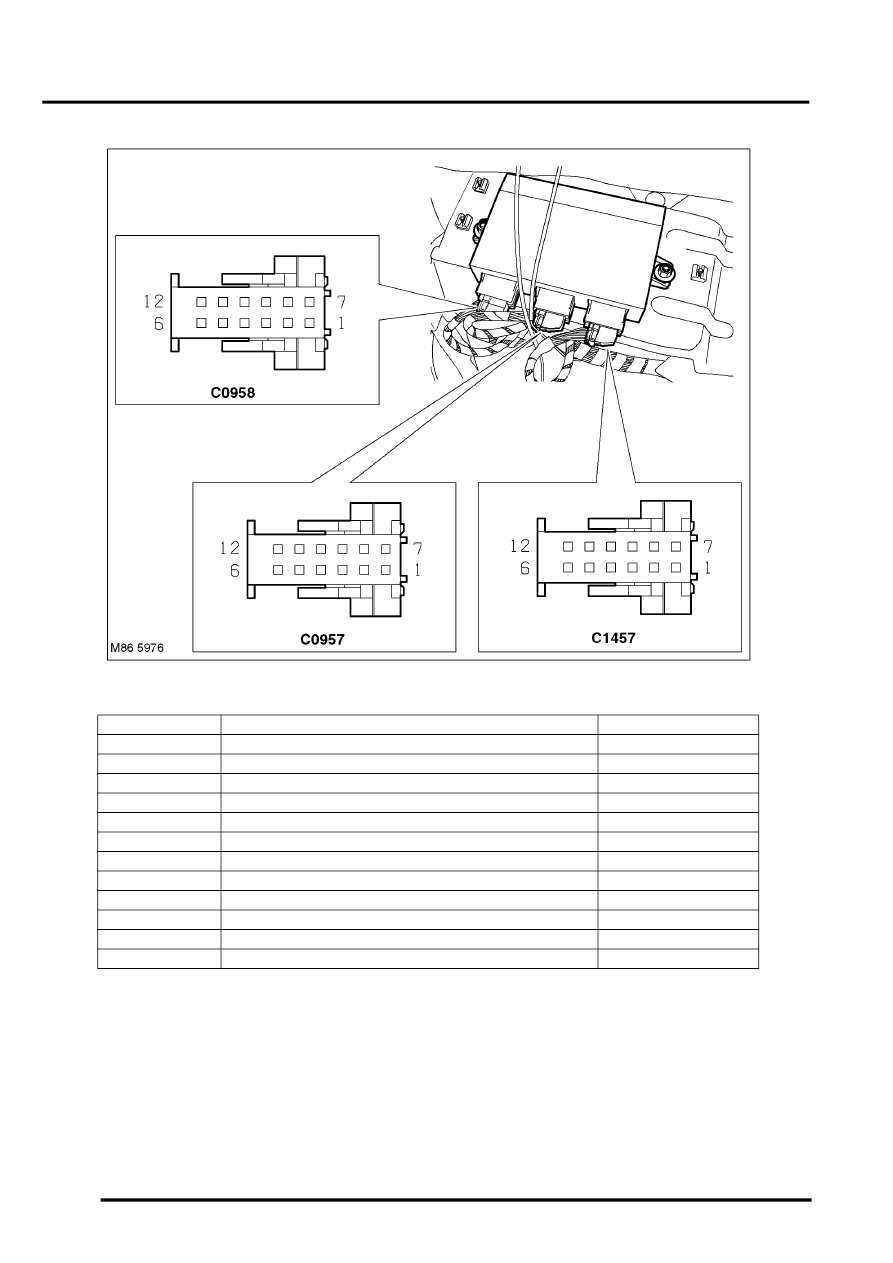

PDC ECU Harness Connectors

PDC ECU Harness Connector C0957 Pin Details

Pin No.

Description

Input/Output

1

Ignition power supply

Input

2

PDC sounder +ve

Output

3

Not used

–

4

I bus

Input/Output

5

Not used

–

6

Ground

–

7

PDC switch LED

Output

8

PDC sounder –ve

Input

9

Instrument pack sounder

Output

10

PDC switch

Input

11

Instrument pack sounder (rearward travel gong – Japan only)

Output

12

Not used

–
