CHARGING AND STARTINGStarter Motor · page 2 of 2
CHARGING AND STARTING
86-1-6
DESCRIPTION AND OPERATION

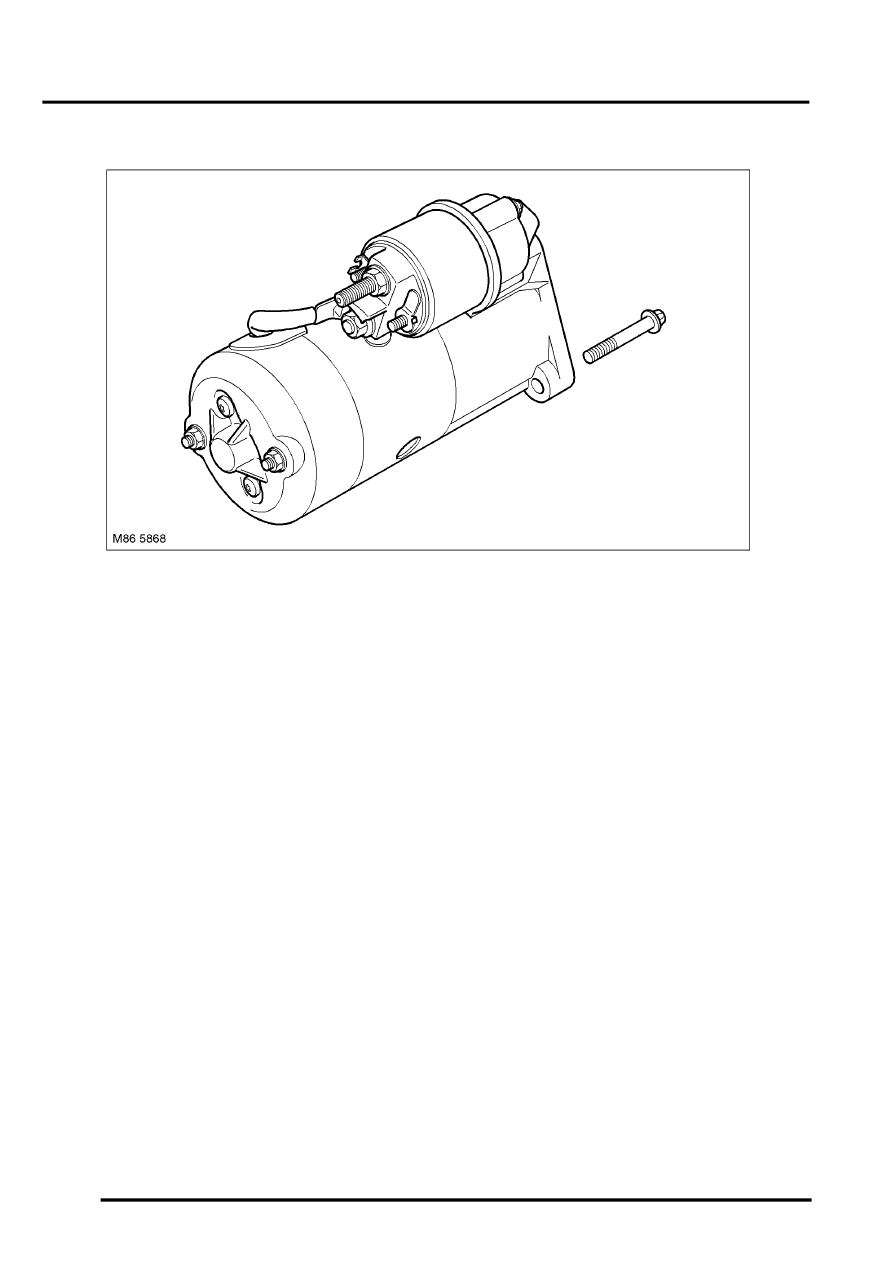

Td6 Starter Motor
The starter motor is located on the rear LH side of the engine block. The motor is secured to the block and protrudes
through an aperture to drive the flywheel via a ring gear.
