BRAKESRear Brake Components
BRAKES
DESCRIPTION AND OPERATION
70-5

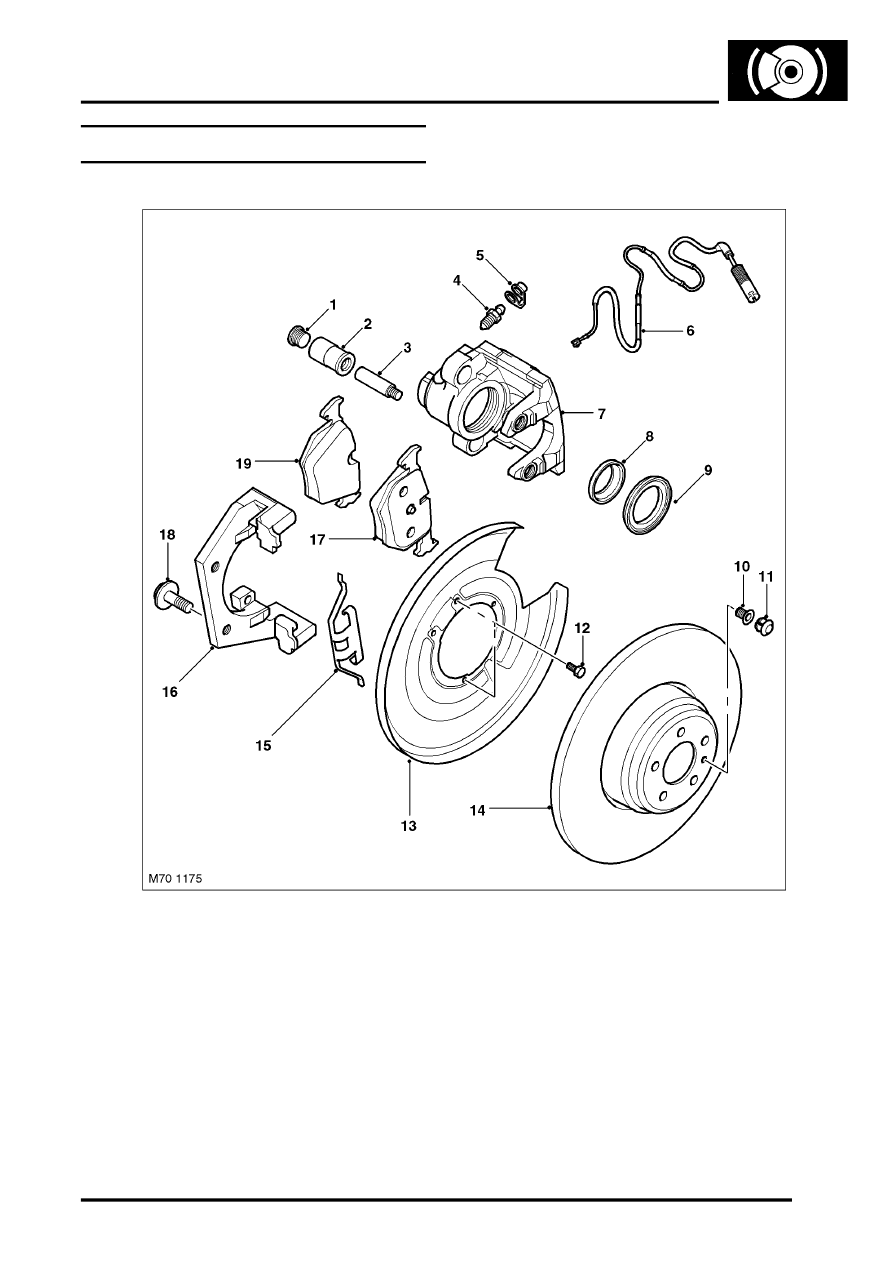

Rear Brake Components
1 Guide pin dust cover
2 Guide pin slider
3 Guide pin
4 Bleed valve dust cap
5 Bleed valve
6 Brake pad wear detection sensor
7 Calliper body
8 Piston seal
9 Piston dust cover
10 Brake disc retaining bolt
11 Brake disc retaining bolt dust cover
12 Mud shield retaining bolt
13 Mud shield
14 Brake disc
15 Brake pad retainer
16 Calliper carrier
17 Brake pad
18 Mounting bolt
19 Brake pad
