Heater Assembly (page 3 of 6)
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- Description
AIR CONDITIONINGHeater Assembly · page 3 of 6
AIR CONDITIONING
82-14
DESCRIPTION AND OPERATION

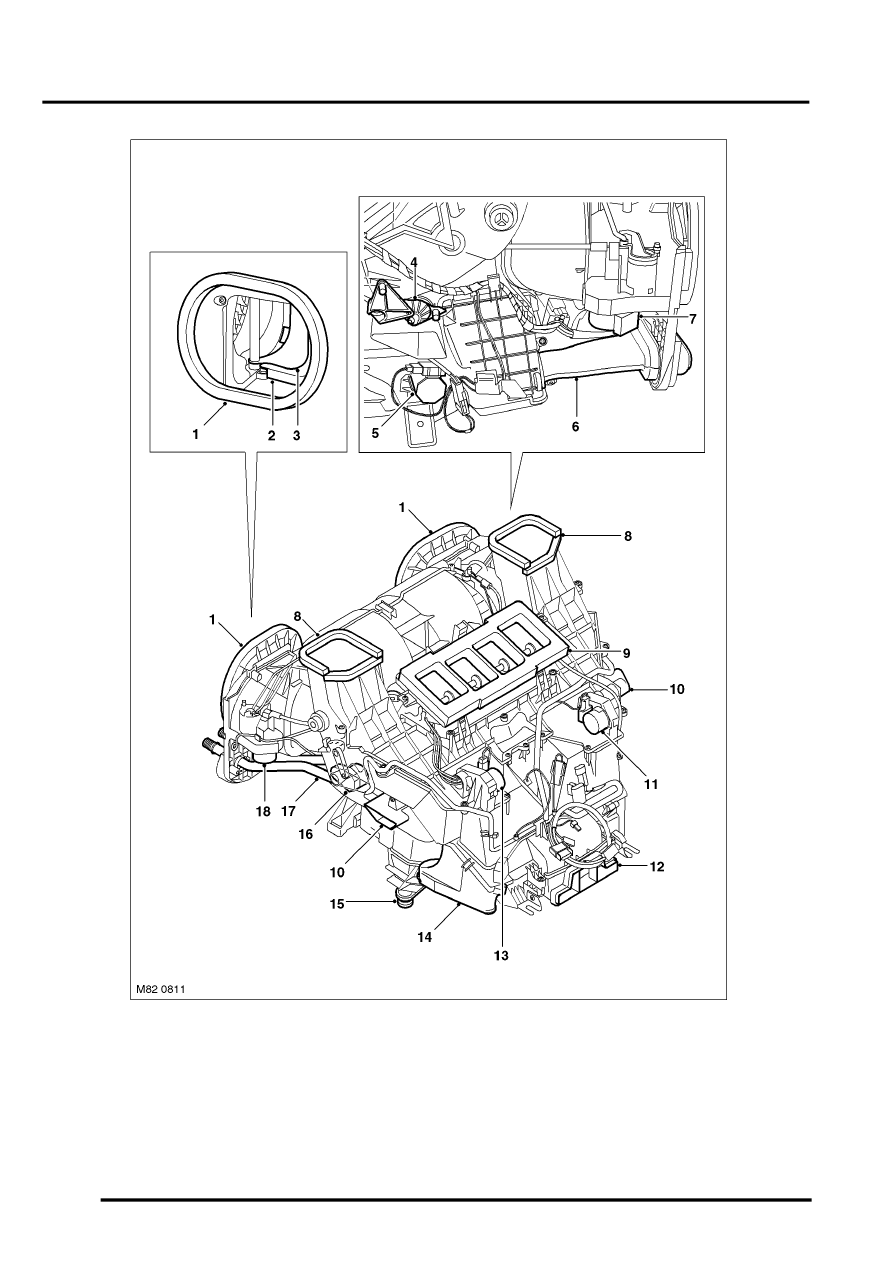

High Line Heater Assembly
1 Fresh air inlet
2 Fresh/Recirculated air flap
3 Ram air flap
4 Face level temperature blend flap control
5 Rear face level temperature blend motor
6 Insulated refrigerant pipes
7 Ram air flaps motor
8 Windscreen air outlet
9 Face level air outlets
10 Front footwell air outlet
11 Footwell (RH) and face level (LH) air flaps
motors
12 Rear face level air outlet
13 Rear footwell air outlet
14 Water drain
15 Windscreen distribution motor
16 Coolant pipes
17 Fresh/Recirculated air flap motor
