AIR CONDITIONINGHeater Assembly · page 2 of 6
AIR CONDITIONING
DESCRIPTION AND OPERATION
82-13

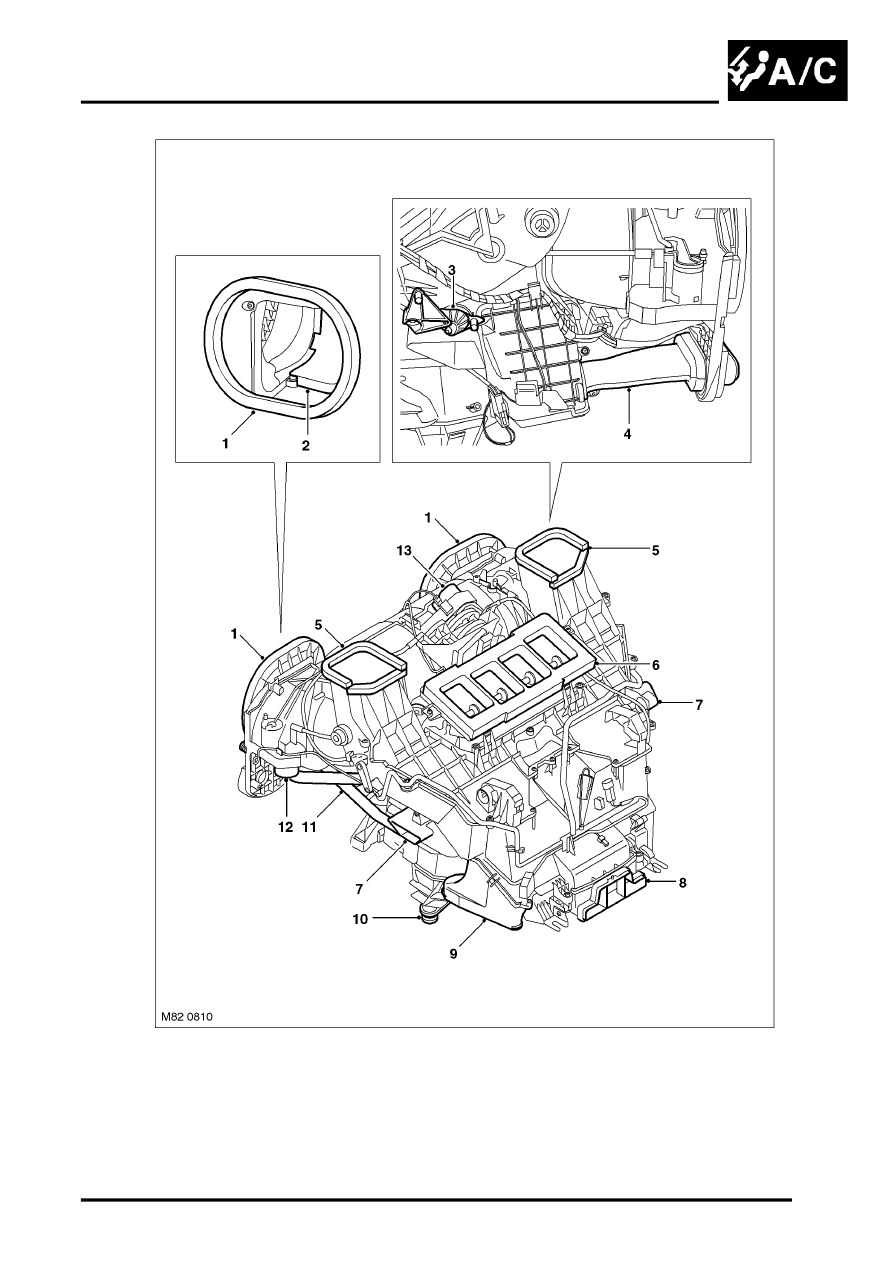

Low Line Heater Assembly
1 Fresh air inlet
2 Fresh/Recirculated air flap
3 Face level temperature blend flap control
4 Insulated refrigerant pipes
5 Windscreen air outlet
6 Face level air outlets
7 Front footwell air outlet
8 Rear face level air outlet
9 Rear footwell air outlet
10 Water drain
11 Coolant pipes
12 Fresh/Recirculated air flaps motor
13 Distribution flaps motor
