Stalk - rear seat belt - centre

RESTRAINT SYSTEMS

REPAIRS

75-11

Stalk - rear seat belt - centre

$% 76.73.98

Remove

WARNING: It is imperative that before any
work is undertaken on the SRS system the
appropriate information is read thoroughly.

WARNING: When removing, testing or
installing a seatbelt pre-tensioner, do not
lean directly over it or block the end of the
piston tube.

WARNING: Always remove the key from the
starter switch, disconnect the vehicle
battery and wait 10 minutes before
commencing work on the SRS system.

1. Remove RH rear seat.

 +

 SEATS, REPAIRS, Rear seat - RH.

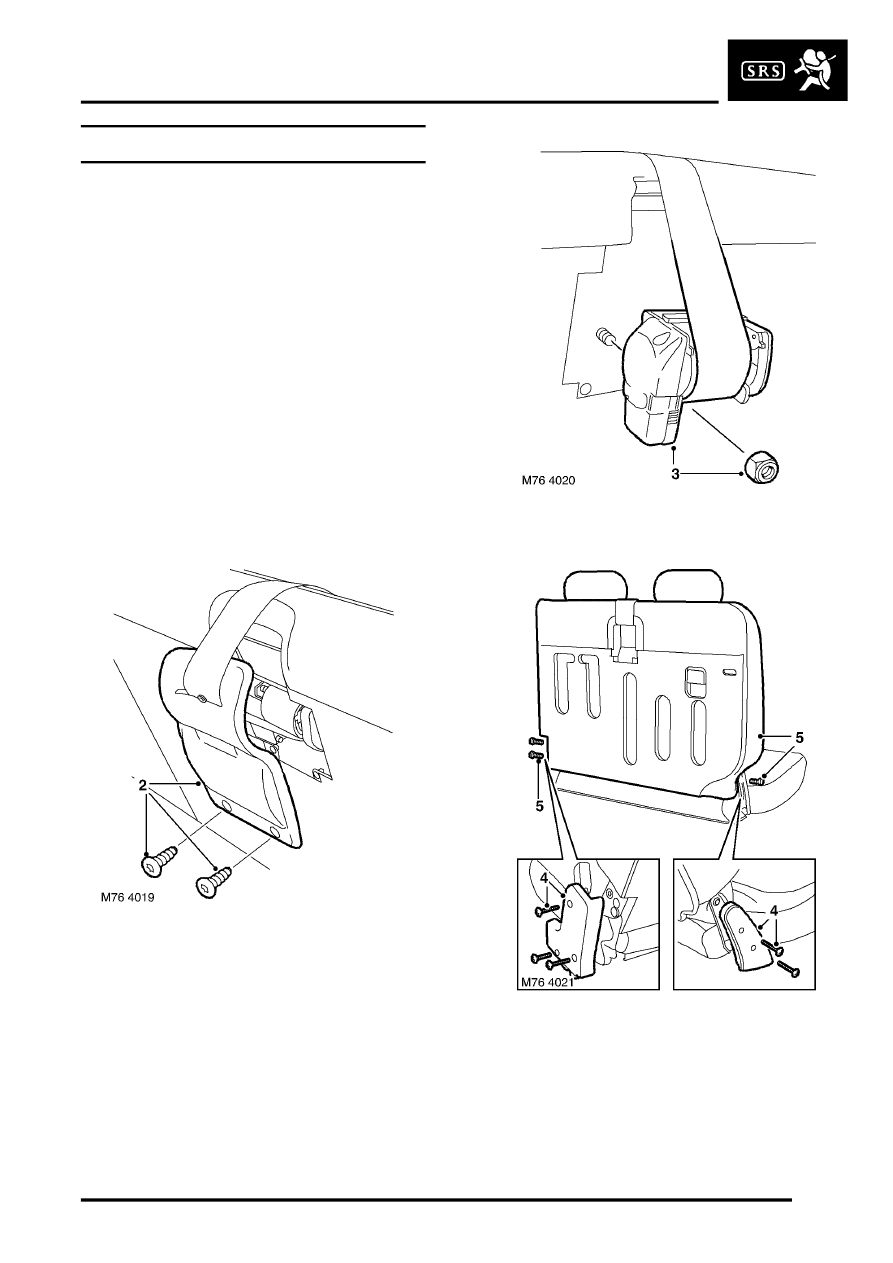

2. Remove 2 screws and remove seat belt reel

cover.

3. Remove nut and release seat belt reel.

4. Remove 5 screws and remove both end

covers.

5. Remove 3 Torx bolts and remove squab from

cushion.
