Automatic belt assembly - front - 5 door

$% 76.73.13

Remove

1. Remove seat base finisher.

 +

 SEATS, REPAIRS, Finisher - seat

base - front - each.

2. Remove 'B/C' post upper finisher.

 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim finisher - 'B/C' post - upper -
renew.

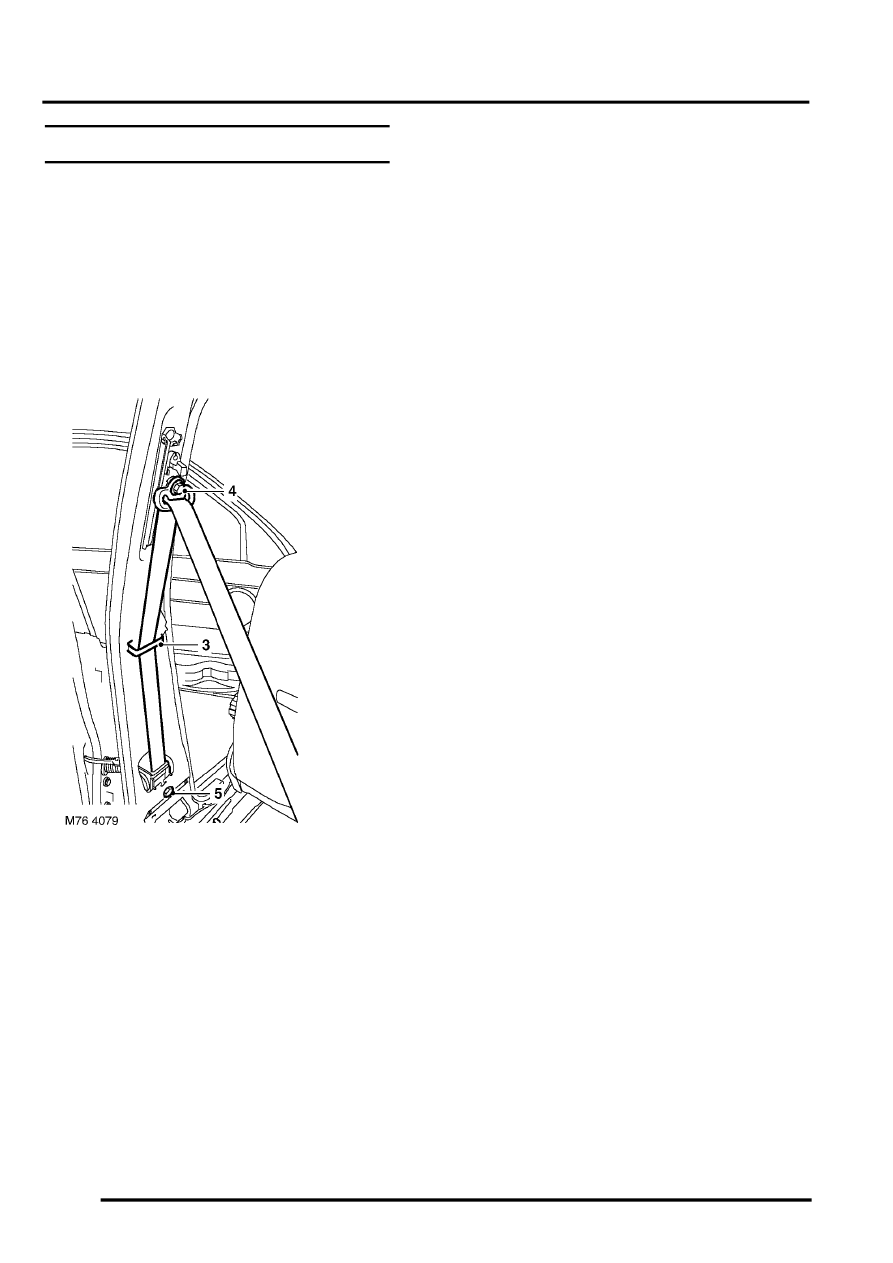

3. Release seat belt retaining strap.
4. Remove nut securing seat belt upper

anchorage to mounting.

5. Remove bolt from seat belt reel and remove

reel.

Refit

NOTE: If the SRS component is to be replaced,
the bar code of the new unit must be recorded.

1. Position reel and tighten bolt to 31 Nm (23

lbf.ft).

2. Extend belt, position top mounting and tighten

nut to 31 Nm (23 lbf.ft).

3. Secure belt retaining strap.
4. Fit 'B/C' post upper finisher.

 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim finisher - 'B/C' post - upper -
renew.

5. Fit seat base finisher.

 +

 SEATS, REPAIRS, Finisher - seat

base - front - each.
