Airbag module - steering wheel - deployment - off vehicle

RESTRAINT SYSTEMS

75-20

REPAIRS

Airbag module - steering wheel -
deployment - off vehicle

$% 76.74.16

These guidelines are written to aid authorised
personnel to carry out the safe disposal of airbag
modules when removed from the vehicle.

Deploy

WARNING: It is imperative that before any
work is undertaken on the SRS system, the
appropriate information is read thoroughly.

1. Make the SRS system safe.

 +

 GENERAL INFORMATION, SRS

component manual deployment.

2. Remove airbag module from steering wheel.

 +

 RESTRAINT SYSTEMS, REPAIRS,

Air bag - steering wheel.

3. Check condition of deployment tool LRT-86-

003 and associated flyleads.

4. Position toolLRT-86–007–02 in vice, ensuring

that vice jaws grip tool above bottom flange to
prevent possibility of tool being forced upwards
from vice. Tighten vice.

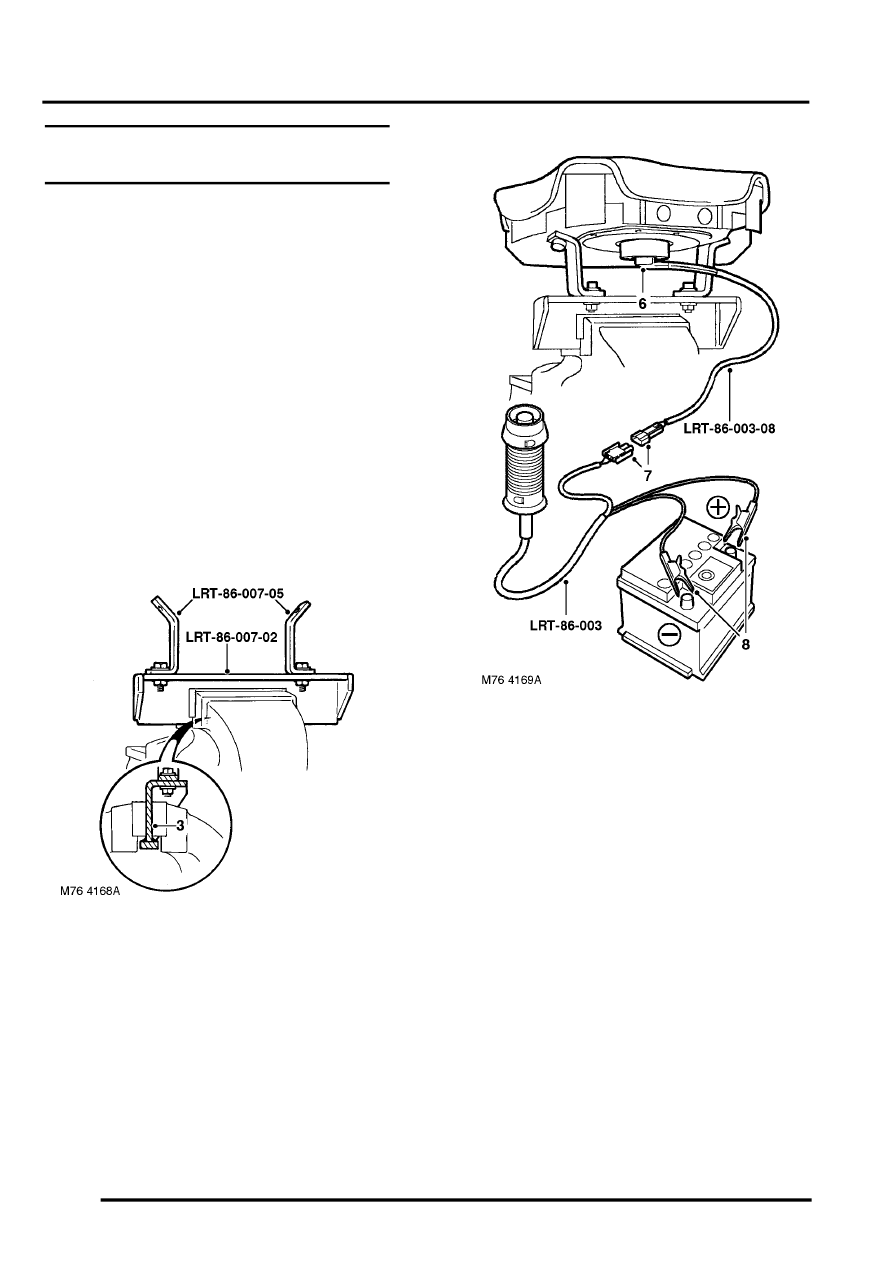

5. Secure airbag module to tool LRT-86–007–02

using both fixings LRT-86–007–05.

6. Ensure airbag module mounting brackets are

secure.

WARNING: Ensure the deployment tool is
not connected to the battery.

7. Connect deployment tool flylead LRT-86–003–

08 to driver airbag module.

8. Connect deployment tool flylead LRT-86–003–

08 to deployment tool LRT-86–003.

9. Connect tool LRT-86–003 to battery.

WARNING: Ensure all personnel are at least
15 metres (50 ft) away from the airbag
module.
