Lamp assembly - centre high mounted stop (CHMSL)

LIGHTING

REPAIRS

86-2-7

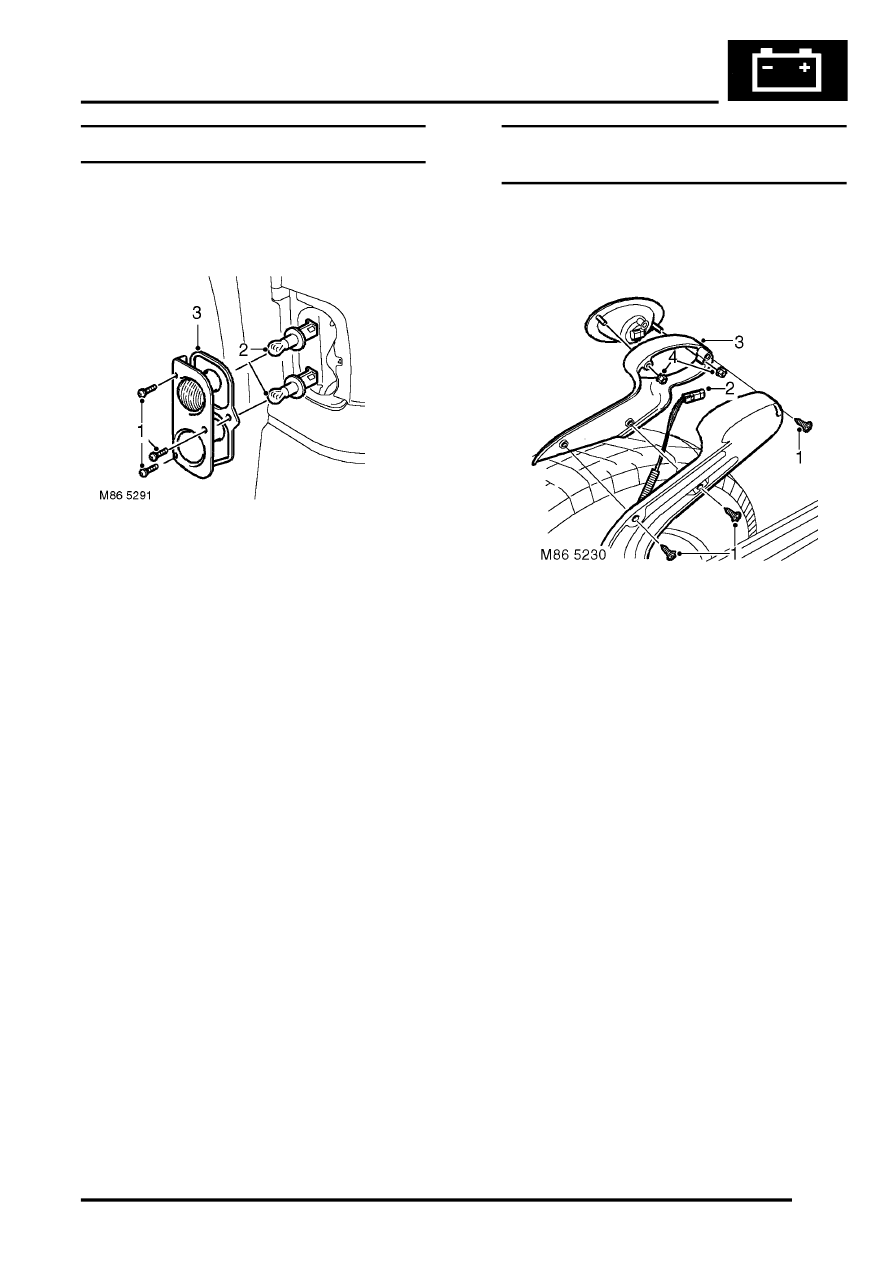

Lamp assembly - rear

$% 86.41.15

Remove

1. Remove 3 Torx screws securing lamp to body.
2. Release lamp, disconnect 2 bulb holders and

remove lamp.

3. Remove lamp sealing rubber.

Refit

1. Fit sealing rubber and bulb holders to lamp.
2. Position lamp, fit and tighten Torx screws.

Lamp assembly - centre high mounted
stop (CHMSL)

$% 86.41.32

Remove

1. Remove 3 screws securing CHMSL bracket to

spare wheel carrier.

2. Release lamp bracket and disconnect

multiplug.

3. Remove lamp and bracket.
4. Remove 2 nuts and remove lamp from bracket.

Refit

1. Position lamp to bracket and tighten nuts.
2. Position lamp bracket and connect multiplug to

lamp.

3. Position lamp bracket to spare wheel carrier

and secure with screws.
