Fuel pump - fuel burning heater - up to 03MY

HEATING AND VENTILATION

80-20

REPAIRS

Fuel pump - fuel burning heater - up to
03MY

$% 80.40.40

Remove

1. Disconnect battery earth lead.
2. Remove RH rear wheel arch liner.

 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - rear wheel arch.

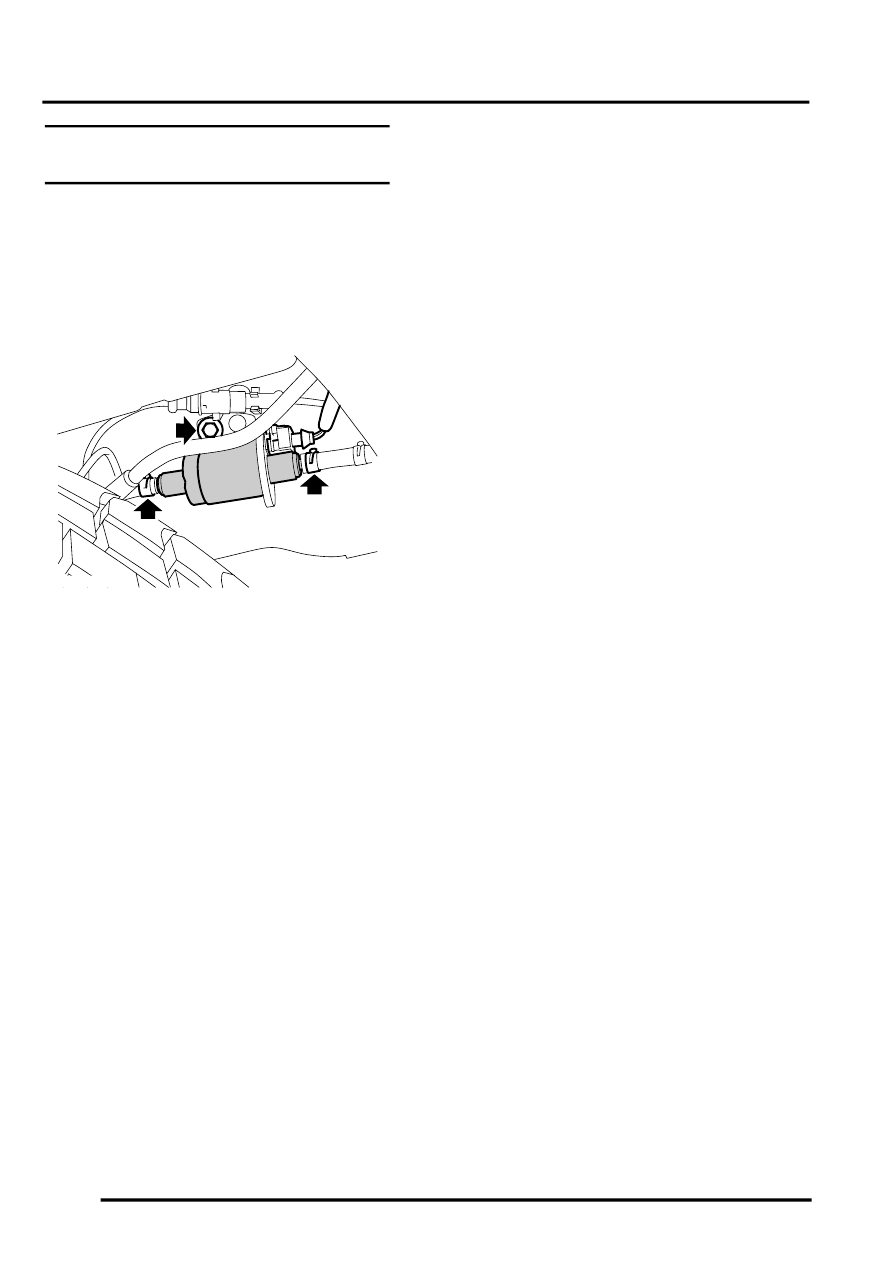

3. Disconnect multiplug from fuel pump.
4. Release clips and remove fuel pipes from fuel

pump.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

5. Release fuel pump from rubber mountings and

remove pump.

Refit

1. Clean fuel hose connections.
2. Position fuel pump and secure in rubber

mountings.

3. Position fuel pipes to pump and secure with

clips.

4. Connect multiplug to fuel pump.
5. Fit rear wheel arch liner.

 +

 EXTERIOR FITTINGS, REPAIRS,

Liner - rear wheel arch.

6. Connect battery earth lead.

M80 0495
