Bearing - hub (page 2 of 4)

FRONT SUSPENSION

60-4

REPAIRS

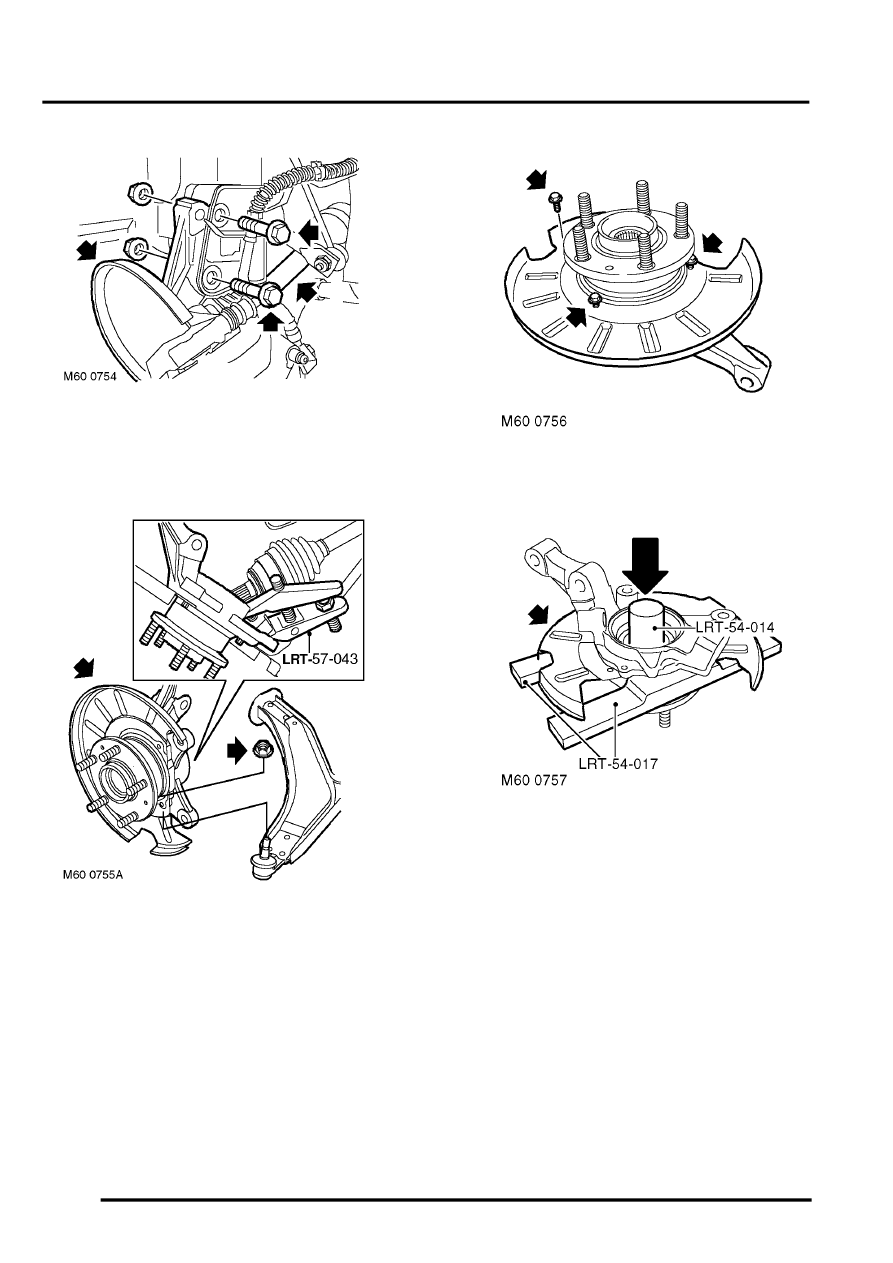

9. Remove 2 nuts and bolts securing hub to

damper.

10. Release hub from damper.
11. Release drive shaft from hub.

12. Restrain hub from rotating and remove nut from

lower swivel joint.

13. Break taper joint using  LRT-57-043.
14. Remove swivel  hub.

NOTE: Do not carry out further dismantling if
component is removed for access only.

15. Remove 3 bolts securing brake disc shield.

16. Position hub assembly to press, support on

tools LRT-54-017 and press out drive flange
using tool LRT-54-014.

17. Remove brake disc shield.

NOTE: Outer bearing track will remain on drive
flange.
