Oil pressure relief valve

ENGINE - K SERIES KV6

REPAIRS 12-3-55

Refit

1. Ensure oil pressure switch and mating face is

clean.

2. Fit oil pressure switch using a new sealing

washer and tighten to 14 Nm (10 lbf.ft).

3. Connect multiplug to oil pressure switch.
4. Remove oil container from underneath of

engine.

5. Fit splash shield and secure with bolts.
6. Fit RH road wheel and tighten nuts to 115 Nm

(85 lbf.ft).

7. Fit underbelly panel.

 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

8. Check engine oil level, top-up if  necessary.
9. Connect battery earth lead.

Oil pressure relief valve

$% 12.60.56

Remove

1. Disconnect battery earth lead.
2. Remove underbelly panel.

 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

3. Remove RH front road wheel.

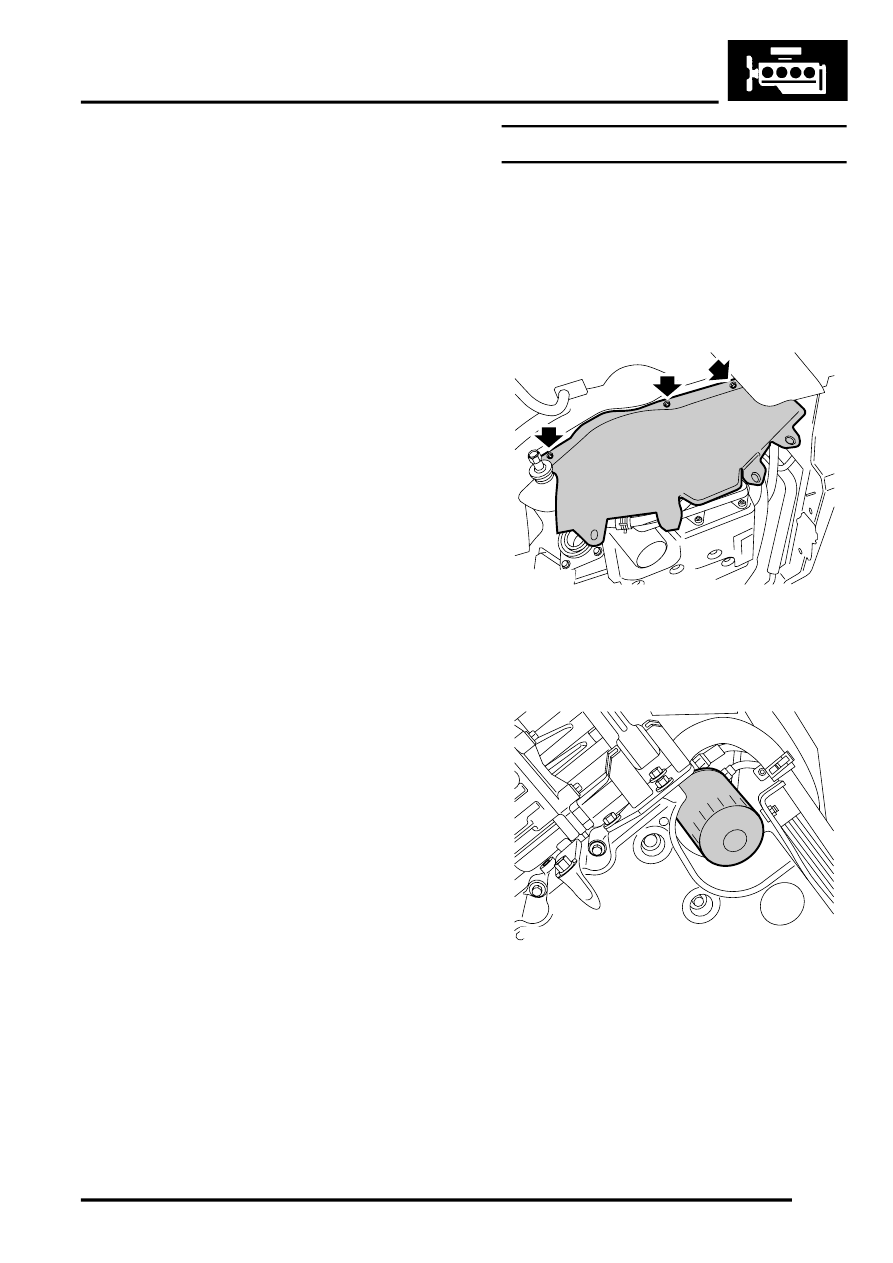

4. Remove 3 bolts securing RH splash shield to

body and remove shield.

5. Place suitable container under oil filter to collect

spillage.

6. Using strap wrench, remove and discard oil

filter.

M12 6614

M12 6660
