Oil cooler - engine

ENGINE - K SERIES KV6

REPAIRS 12-3-57

Oil cooler - engine

$% 12.60.68

Remove

1. Disconnect battery earth lead.
2. Drain cooling system.



 +

 COOLING SYSTEM - K SERIES KV6,

ADJUSTMENTS, Coolant - drain and refill.

3. Remove RH front road wheel.

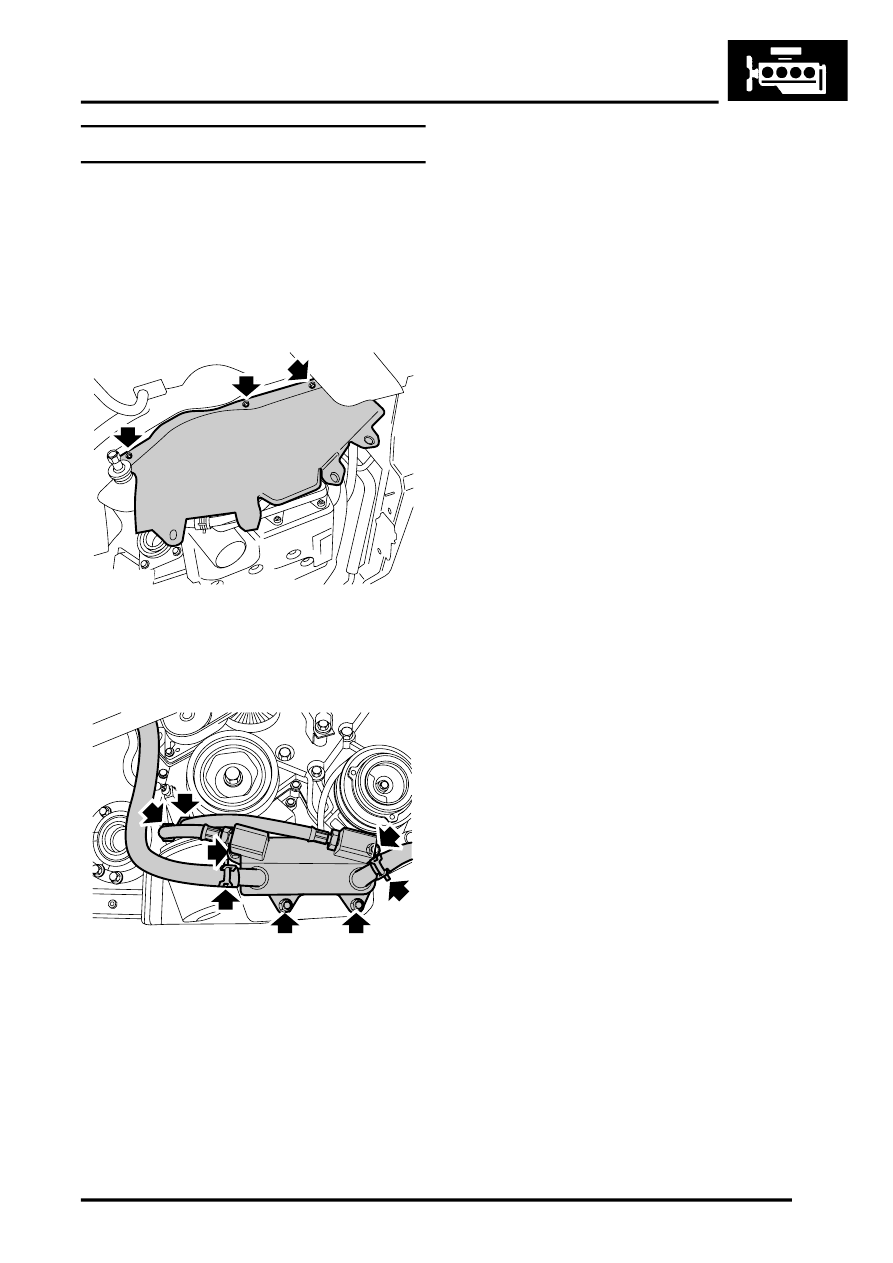

4. Remove 3 bolts securing RH splash shield to

body and remove shield.

5. Position container to collect spillage under oil

filter.

6. Loosen and remove oil cooler pipe unions from

oil filter housing, remove and discard 2 'O'
rings.

CAUTION: Failure to retain bosses will
result in damage to oil cooler. Always fit
plugs to open connections to prevent
contamination.

7. Position container to collect coolant spillage.

8. Release clips and disconnect coolant hoses

from engine oil cooler.

CAUTION: Always fit plugs to open
connections to prevent contamination.

9. Remove 4 nuts securing engine oil cooler to

mounting bracket and remove oil cooler.

10. Restrain oil cooler pipe bosses on oil cooler

housing, loosen and remove oil cooler pipes
from oil cooler; remove and discard 2 'O' rings.

CAUTION: Always fit plugs to open
connections to prevent contamination.

Refit

1. Clean oil cooler pipe unions and mating faces.
2. Lubricate new 'O' rings with clean engine oil

and fit to oil cooler pipes.

3. Fit pipes to engine oil cooler, restrain bosses on

oil cooler body and tighten unions to 26 Nm (19
lbf.ft).

CAUTION: To prevent damage to
components, use two spanners when
loosening or tightening unions.

4. Position engine oil cooler to mounting bracket,

fit and tighten nuts to 25 Nm (18 lbf.ft).

5. Position oil cooler pipes to oil filter housing and

tighten unions to 26 Nm.

6. Connect coolant hoses to oil cooler and secure

with clips.

7. Fit splash shield and secure with bolts.
8. Fit RH road wheel and tighten nuts to 115 Nm

(85 lbf.ft).

9. Fill cooling system.



 +

 COOLING SYSTEM - K SERIES KV6,

ADJUSTMENTS, Coolant - drain and refill.

10. Connect battery earth lead.
11. Check engine oil level and top-up if necessary.

M12 6614

M12 7917
