Camshaft rear timing belt - RH cylinder head

ENGINE - K SERIES KV6

REPAIRS 12-3-73

Camshaft rear timing belt - RH cylinder
head

$% 12.65.57

Remove

1. Disconnect battery earth lead.
2. Remove underbelly panel.

 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

3. Remove RH front road wheel.

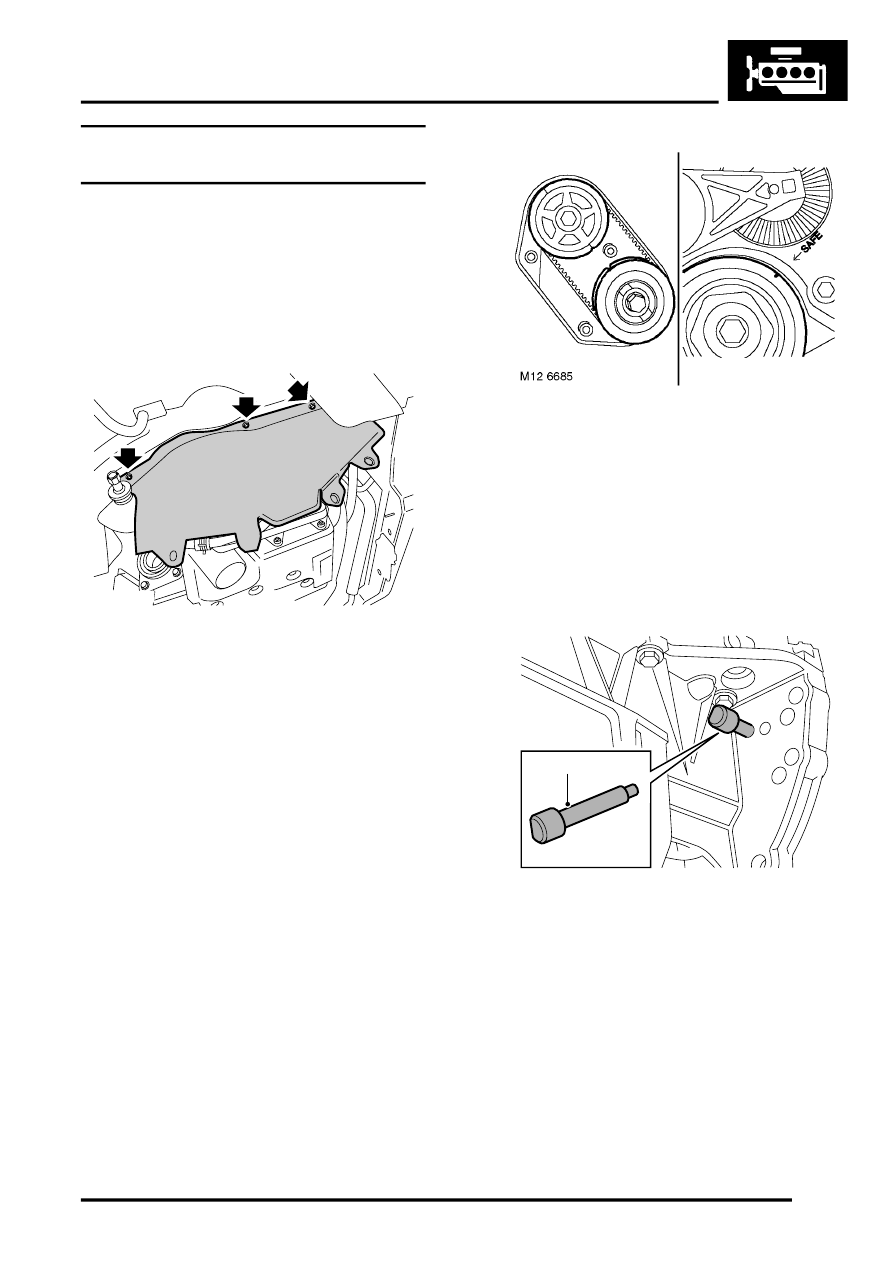

4. Remove 3 bolts securing RH splash shield to

body and remove shield.

5. Remove RH rear timing belt cover.

 +

 ENGINE - K SERIES KV6, REPAIRS,

Camshaft timing belt cover - RH rear.

6. Using a socket on crankshaft pulley bolt, rotate

crankshaft in a clockwise direction. Align the
engine "SAFE" position, notch on crankshaft
pulley aligned to the "ARROW" on front
mounting plate and the timing marks aligned on
the rear camshaft gears as illustrated.

CAUTION: Do not use camshaft gear bolts
or timing belt to rotate crankshaft. Never
use the arrow on the oil pump body as a
timing reference.

7. Insert timing pin LRT-12-232 through hole in

lower crankcase, ensuring pin is located in hole
in drive plate.

CAUTION: Hole immediately adjacent to
side of lower crankcase must be used.

M12 6614

LRT-12-232

M12 7927
