Valve - canister purge - K1.8

EMISSION CONTROL

17-1-6

REPAIRS

Valve - canister purge - K1.8

$% 17.15.39

Remove

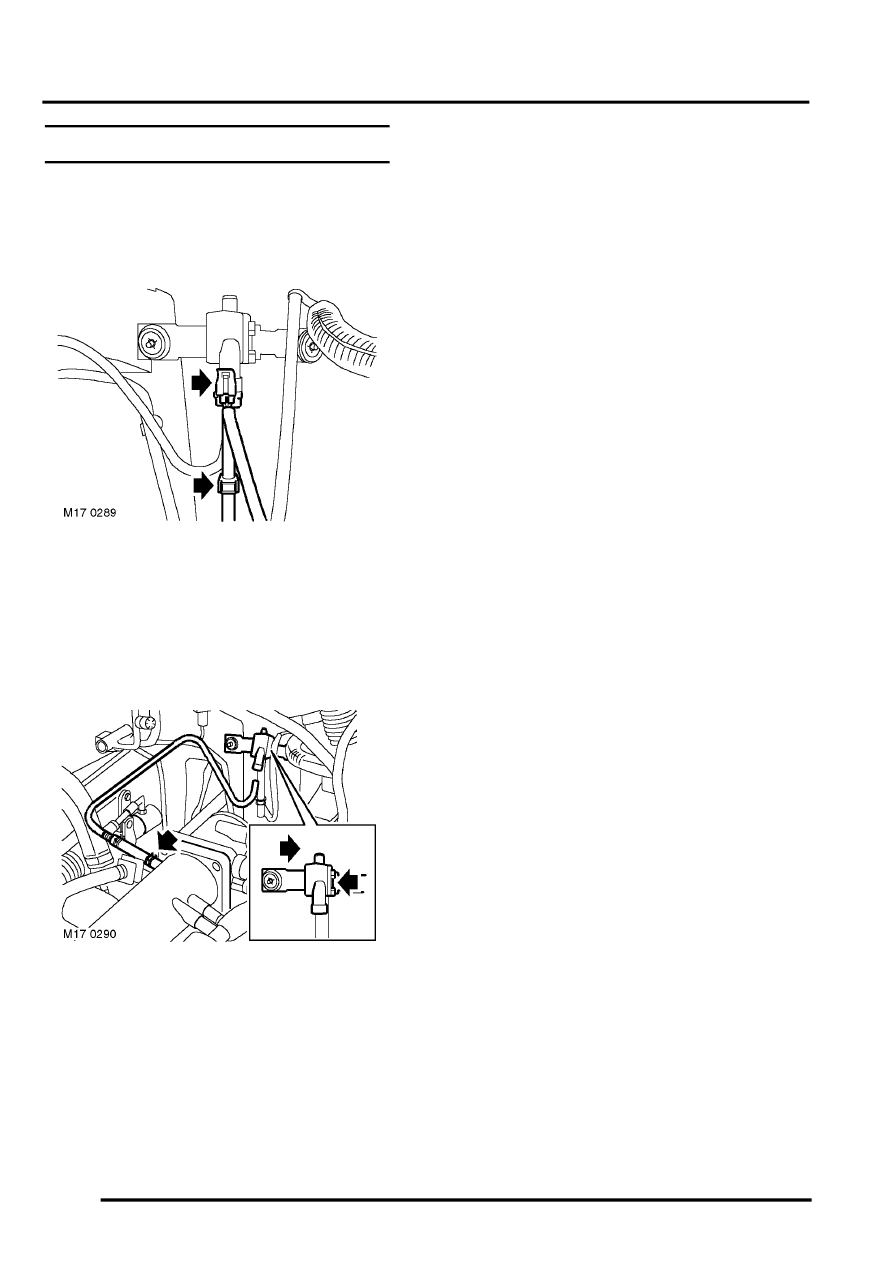

1. Disconnect battery earth lead.

2. Disconnect multiplug from purge control valve.
3. Disconnect quick release hose connector on

purge control valve.

CAUTION: Always fit plugs to open
connections to prevent contamination.

4. Release clip and disconnect purge hose from

inlet manifold.

5. Release clip and slide purge control valve off

from bracket.

Refit

1. Position purge control valve onto bracket.
2. Connect purge hose to inlet manifold and

secure with clip.

3. Connect quick release hose connector to purge

control valve.

4. Connect multiplug to purge control valve .
5. Connect battery earth lead.
