Ancillary drive belt - K1.8 without A/C

CHARGING AND STARTING

86-1-8

REPAIRS

Ancillary drive belt - K1.8 without A/C

$% 86.10.03

Remove

1. Disconnect battery earth lead.
2. Remove PAS pump drive belt.

 +

 STEERING, REPAIRS, Drive belt -

K1.8.

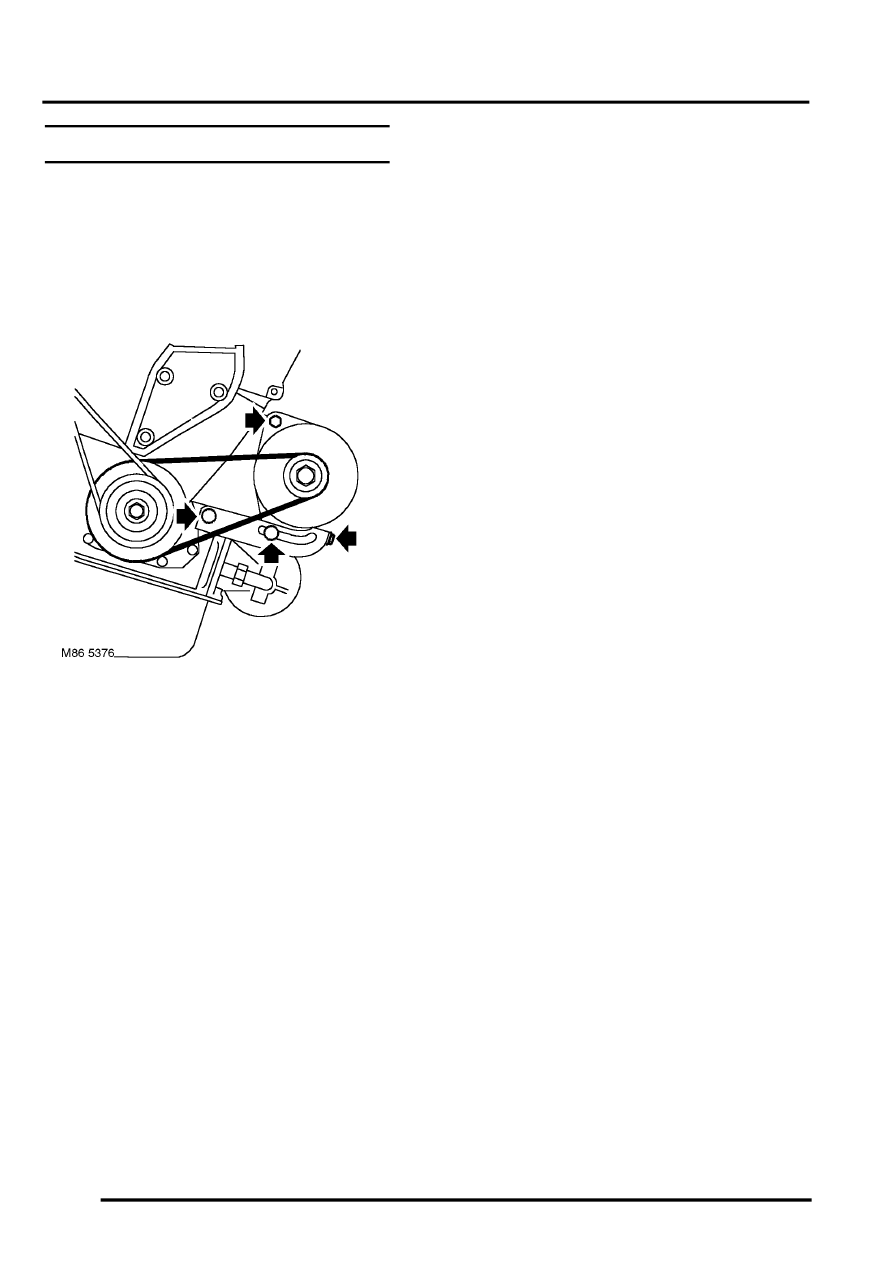

3. Loosen alternator pivot nut and bolt.
4. Loosen bolt securing alternator adjustment

bracket to engine.

5. Loosen bolt securing alternator to adjustment

bracket.

6. Rotate alternator drive belt adjustment bolt anti-

clockwise to release tension from belt and
remove belt.

Refit

1. Ensure pulleys are clean and damage free.

CAUTION: Examine drive belt for signs of
wear. A drive belt with cracked ribs is
acceptable. A drive belt that has loose or
missing parts of ribs must be changed.

2. Fit drive belt. Ensure belt is located correctly in

pulley grooves.

3. Adjust belt tension.

 +

 CHARGING AND STARTING,

ADJUSTMENTS, Ancillary drive belt - K1.8.

4. Fit PAS pump drive belt.

 +

 STEERING, REPAIRS, Drive belt -

K1.8.

5. Connect battery earth lead.
