Gearbox - KV6 - with engine and gearbox removed

AUTOMATIC GEARBOX - JATCO

44-12

REPAIRS

Gearbox - KV6 - with engine and gearbox
removed

$% 44.20.01.99

Remove

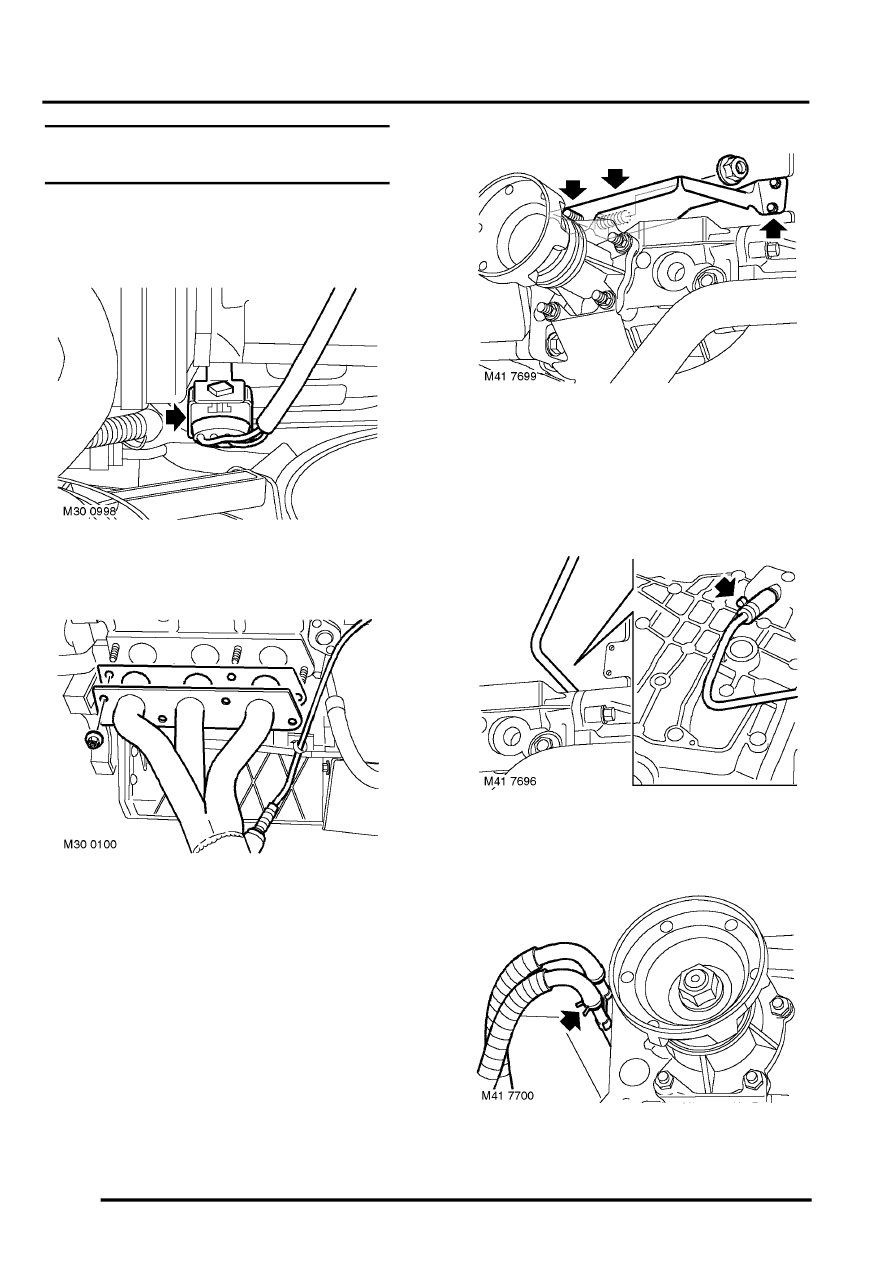

1. Release HO2S multiplug from support bracket

on LH camshaft cover, disconnect multiplug.

2. Remove 4 nuts securing LH exhaust manifold

to cylinder head.

3. Remove exhaust manifold, remove and discard

gasket.

4. Remove nut securing manifold heat shield to

IRD unit.

5. Remove nut securing heat shield to IRD pinion

housing.

6. Remove 2 bolts securing heat shield and

remove heat shield.

7. Disconnect breather hose from IRD housing.

8. Release clips and disconnect coolant hoses

from IRD.
