WINDOWSTail Door Window Control Diagram
WINDOWS
86-6-6
DESCRIPTION AND OPERATION

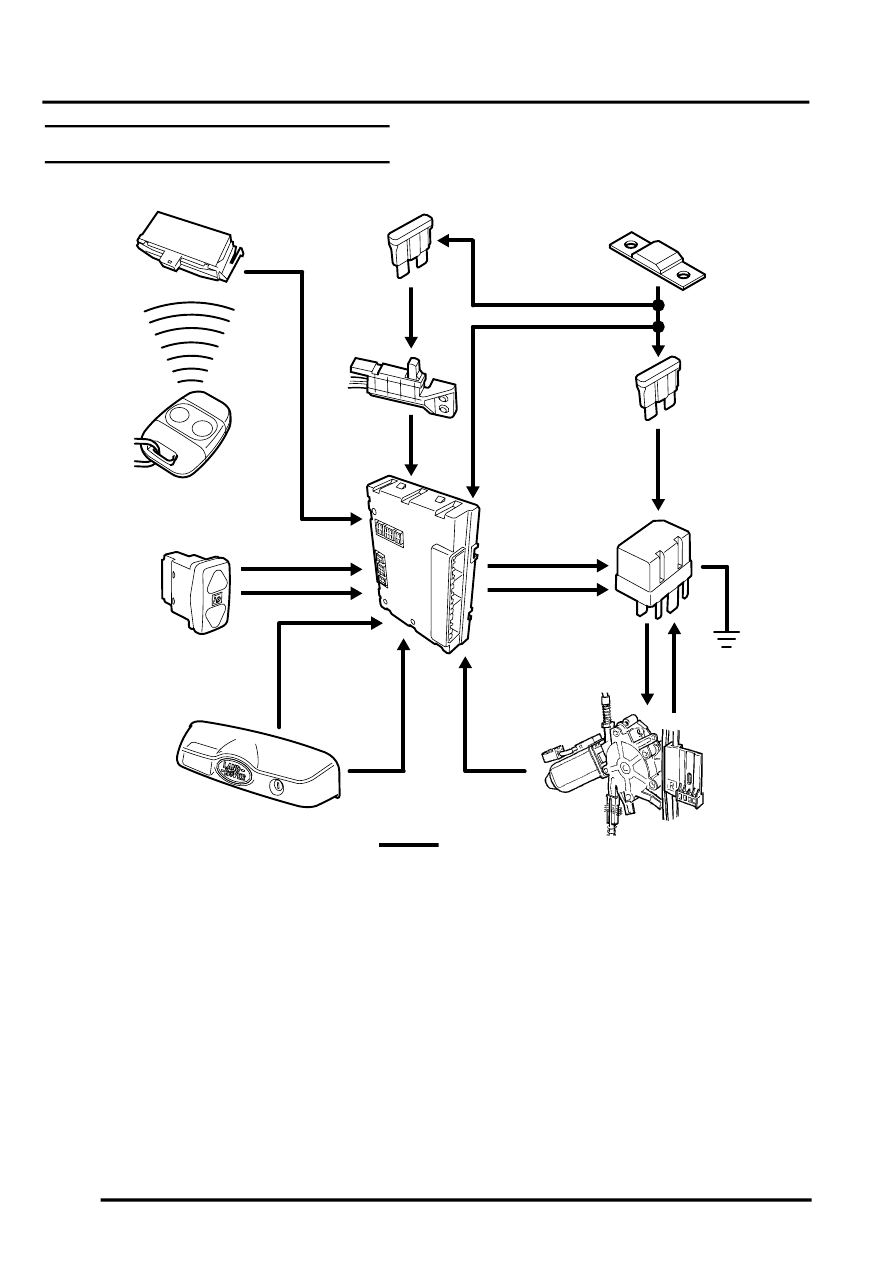

Tail Door Window Control Diagram
1 RF receiver
2 Fuse 14, passenger compartment fusebox
3 Fusible link 4, engine compartment fusebox
4 Fuse 31, passenger compartment fusebox
5 Tail door window lift relay
6 Tail door window motor
7 Tail door handle and lock
8 Tail door window switch
9 Remote transmitter (plip)
10 Roof sensing switch (3 door models only)
11 CCU
M76 4003
1
2
3
4
5
7
8
11
10
6
9
A
