Instrument Pack Components - Exploded View
- Make
- Land Rover
- Model
- Freelander System Description and Operation
- Section
- Instrument Pack Components - Exploded View
INSTRUMENTSInstrument Pack Components - Exploded View
INSTRUMENTS
88-4
DESCRIPTION AND OPERATION
Instrument Pack Components -
Exploded View

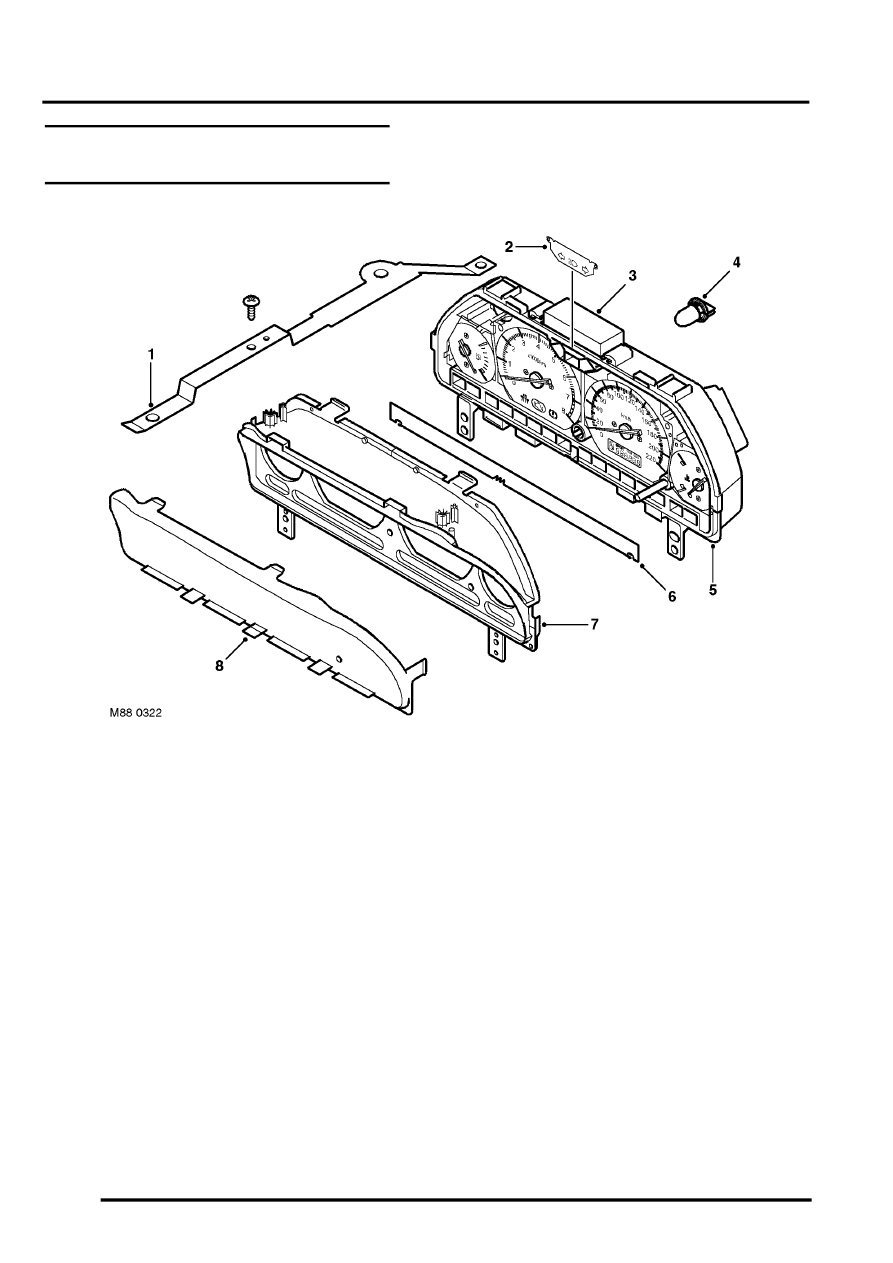

1 Support bracket (2 off)
2 Warning lamp filter
3 RF receiver (Ref. only)
4 Panel illumination bulb (3 off)
5 Instrument pack housing assembly
6 Warning lamp filter
7 Instrument pack face plate
8 Instrument lens
