- Freelander System Description and Operation
‹ Prev Fuel RailNext › The fuel pump is controlled by the Engine Control Module (ECM), which switches the fuel pump rela...
FUEL DELIVERY SYSTEM - K SERIES KV6Description · page 2 of 2
FUEL DELIVERY SYSTEM - K SERIES KV6
19-3-6
DESCRIPTION AND OPERATION

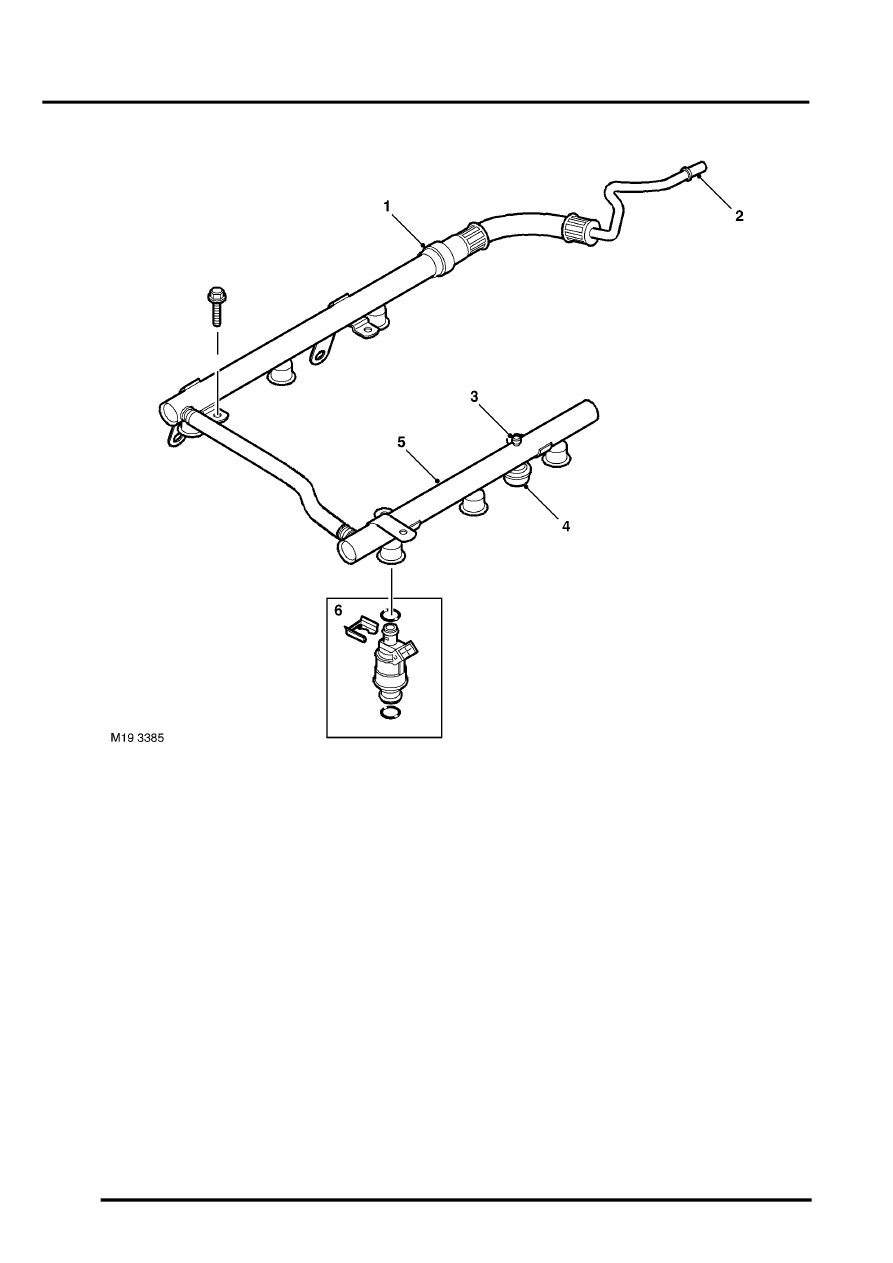

Fuel Rail and Injectors
1 Quick release coupling
2 To fuel feed pipe
3 Dust cap and Schraeder valve
4 Accumulator
5 Fuel rail
6 Fuel injector
