ENGINE - K SERIES KV6
12-3-18 DESCRIPTION AND OPERATION

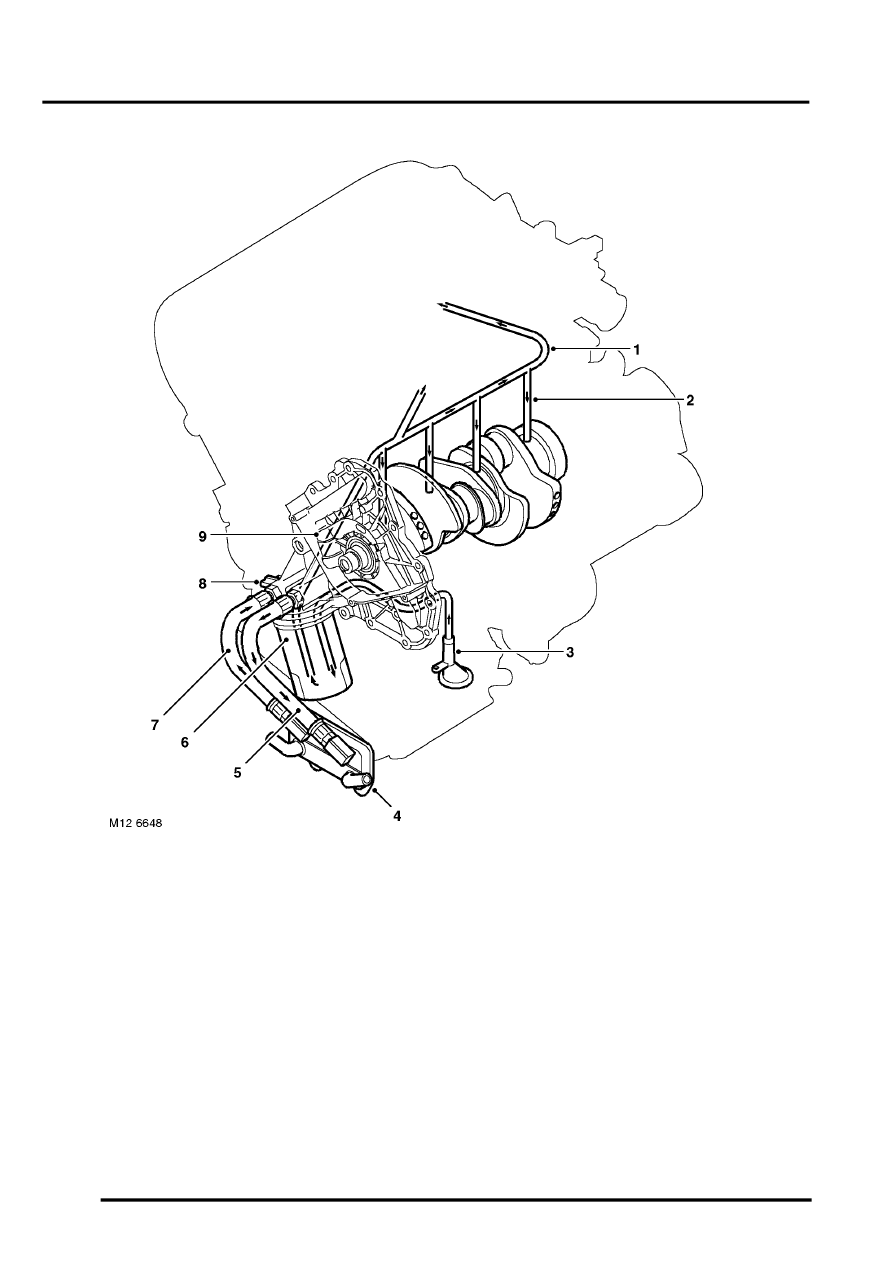

Crankshaft Oil Supply
1 Cylinder block main oil gallery
2 Cross drillings to crankshaft main bearings
3 Oil pick-up pipe with integral strainer
4 Oil cooler
5 Oil cooler supply pipe
6 Oil filter cartridge
7 Oil cooler return pipe
8 Oil pressure switch
9 Oil pump with integral oil pressure relief valve
