EMISSION CONTROL - K SERIES KV6 (page 2 of 7)

EMISSION CONTROL - K SERIES KV6

17-3-6

DESCRIPTION AND OPERATION

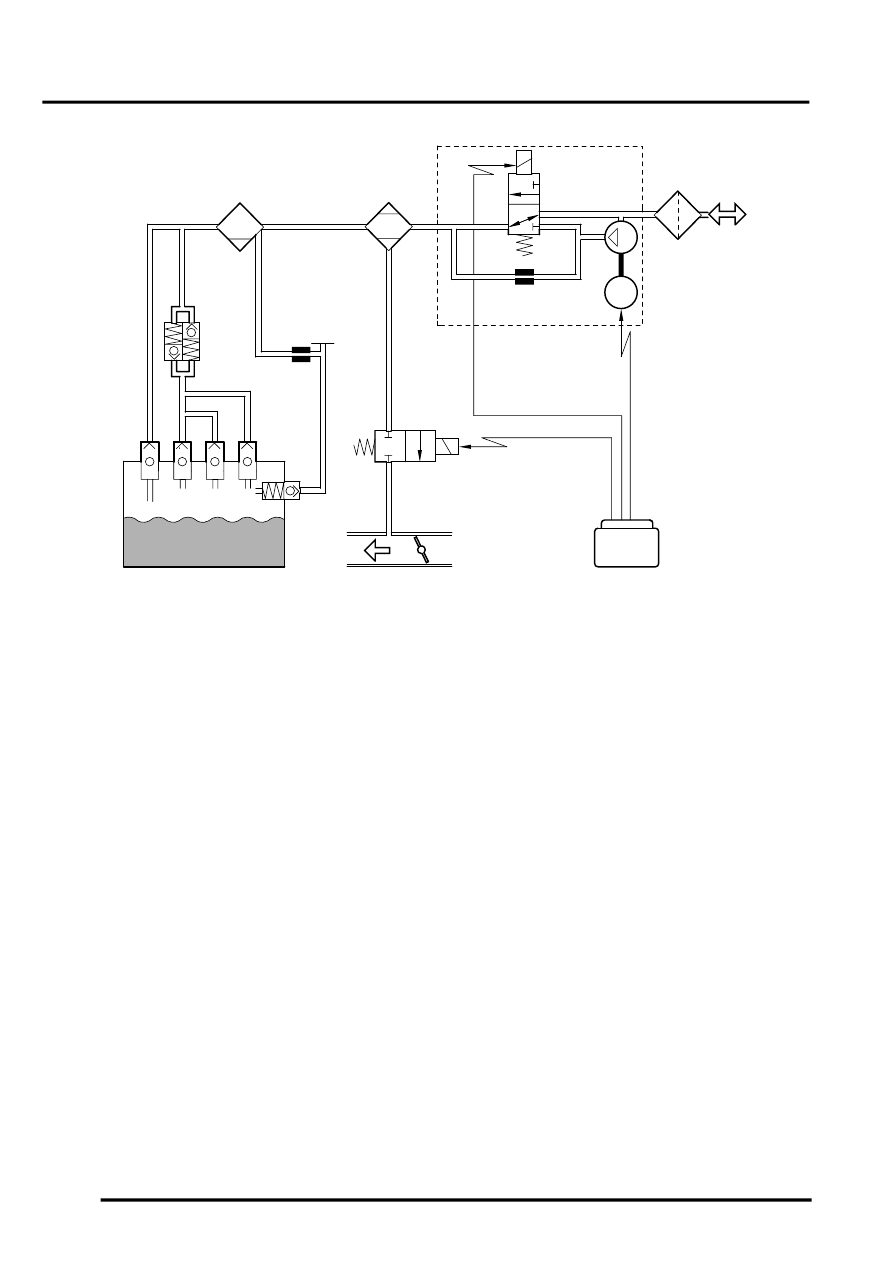

EVAP System Schematic – Vehicles up to 2002.5 Model Year

1 Vapour separator
2 EVAP canister
3 DMTL
4 Change-over valve
5 0.5 mm (0.020 in) reference orifice
6 Air pump and motor
7 Air filter
8 ECM
9 Throttle body

10 Purge valve
11 Flap valve
12 Fuel tank
13 Roll over valve
14 ORVR valve
15 Two-way valve
16 Restrictor
17 Fuel filler cap
18 Filler tube

18

15

14

13

13

13

4

M17 0292

1

2

3

16

17

12

11

10

9

8

7

6

1

5

M
