BRAKES

DESCRIPTION AND OPERATION

70-11

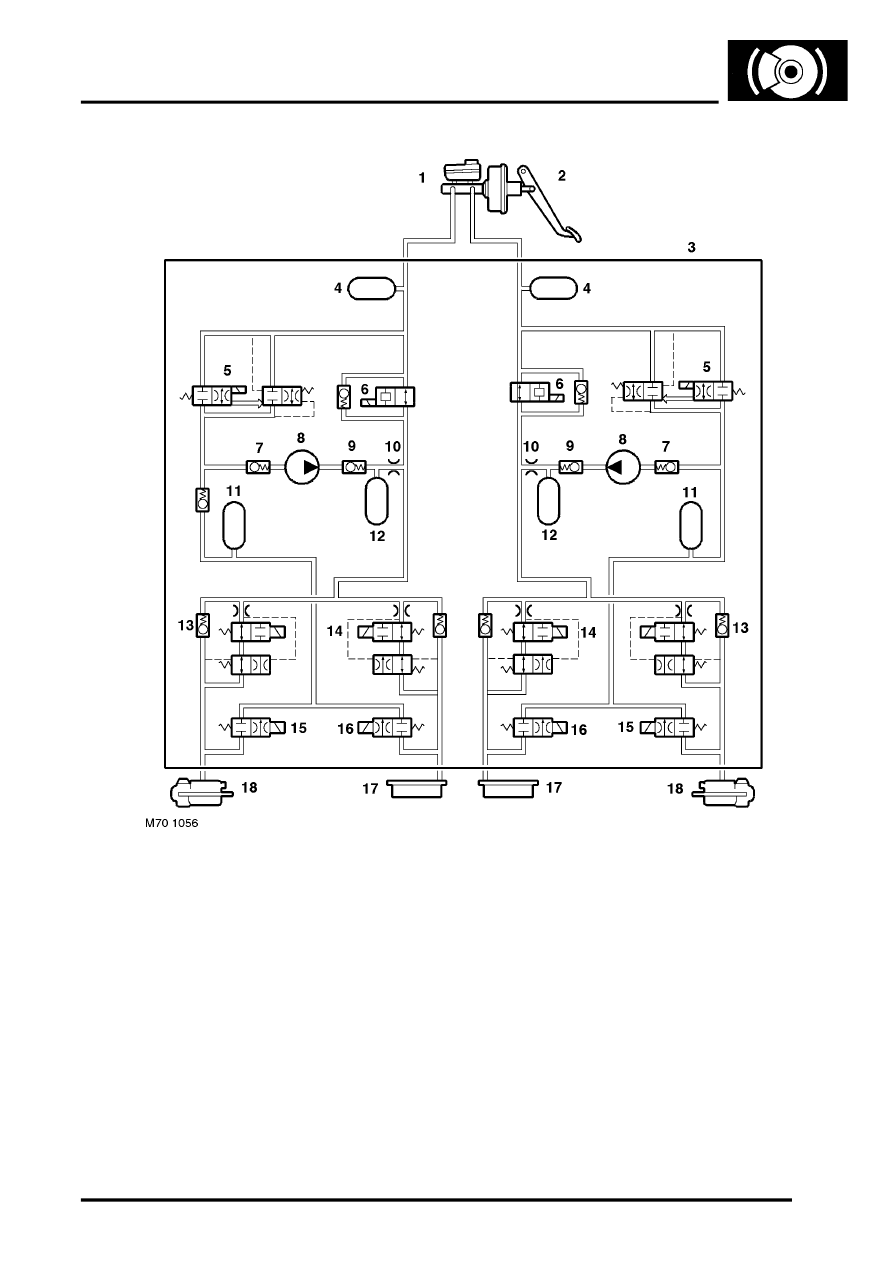

ABS Modulator Schematic (Up To 2002 MY)

1 Master cylinder
2 Brake pedal
3 ABS modulator
4 Pulsation damper
5 Solenoid valve
6 Separation valve
7 One way check valve
8 ABS pump
9 Check valve

10 Restrictor valve
11 Low pressure accumulator
12 Damper chamber
13 Check valve
14 Inlet valve
15 Outlet valve
16 Outlet valve
17 Rear brake
18 Front brake
