JATCO Automatic Gearbox - Valve Block and Solenoid Valves

Make

Land Rover

Model

Freelander System Description and Operation

Section

JATCO Automatic Gearbox - Valve Block and Solenoid Valves

AUTOMATIC GEARBOX - JATCOJATCO Automatic Gearbox - Valve Block and Solenoid Valves · page 1 of 2

AUTOMATIC GEARBOX - JATCO

44-4

DESCRIPTION AND OPERATION

JATCO Automatic Gearbox - Valve Block
and Solenoid Valves

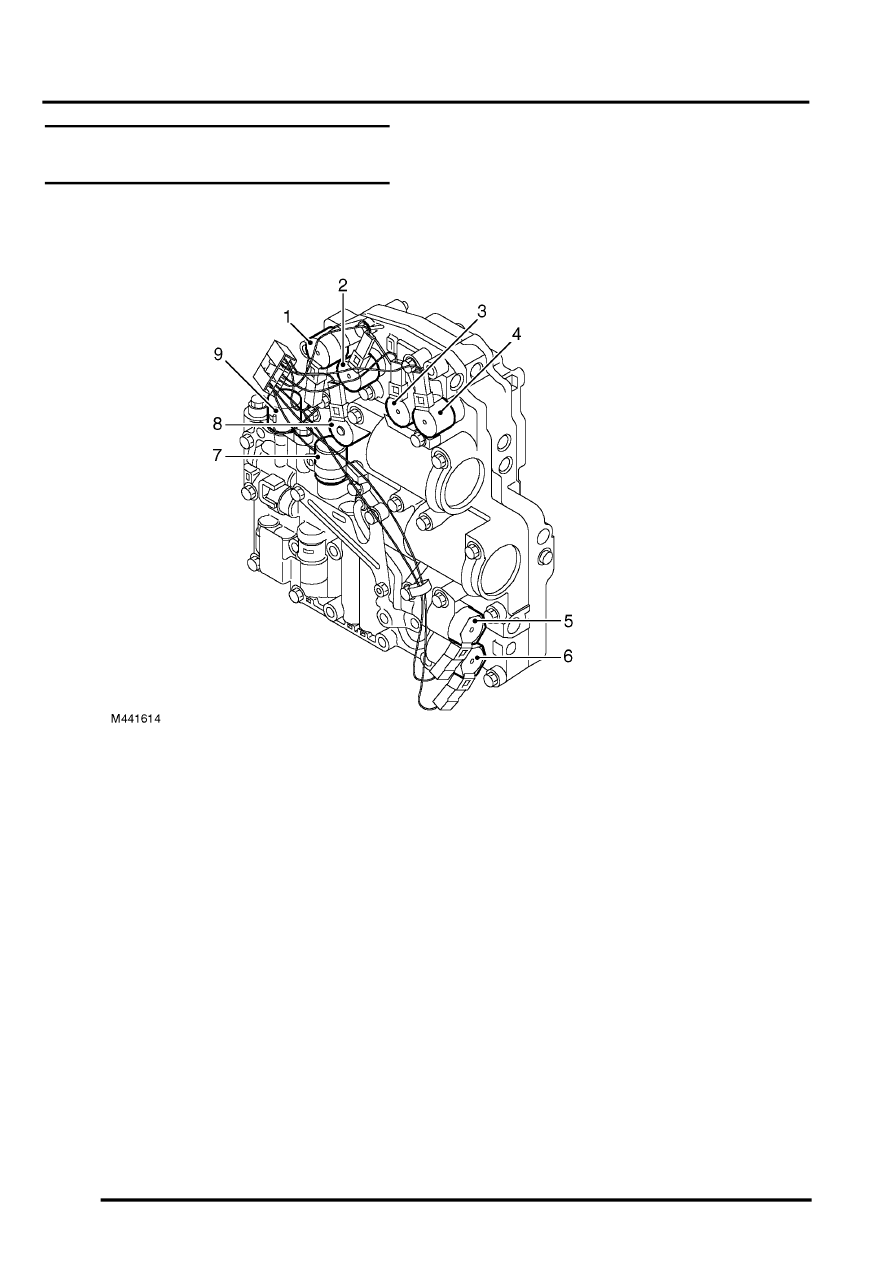

1 Shift solenoid valve A
2 Reduction timing solenoid valve
3 Shift solenoid valve B
4 Shift solenoid valve C
5 2-4 brake duty solenoid valve

6 2-4 brake timing solenoid valve
7 Low clutch timing solenoid valve
8 Lock-up solenoid valve
9 Line pressure duty solenoid valve
