AIR CONDITIONINGA/C Control Component Layout
AIR CONDITIONING
DESCRIPTION AND OPERATION
82-3

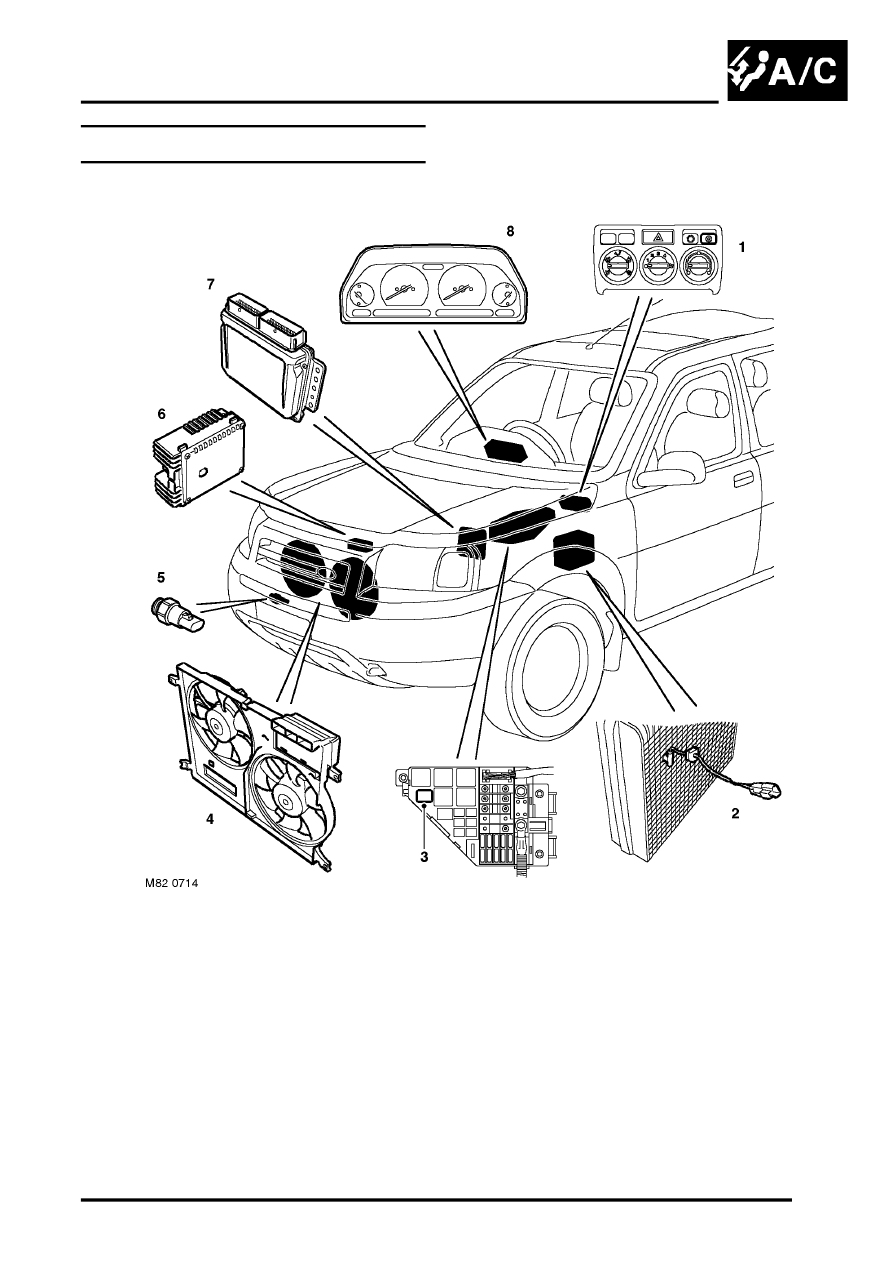

A/C Control Component Layout
1 Control panel
2 Evaporator temperature sensor
3 Compressor control relay
4 Cooling/condenser fans
5 Refrigerant pressure sensor
6 Cooling/condenser fan controller
7 Engine Control Module (ECM)
8 Instrument pack
