44
AUTOMATIC GEARBOX
4
DESCRIPTION AND OPERATION

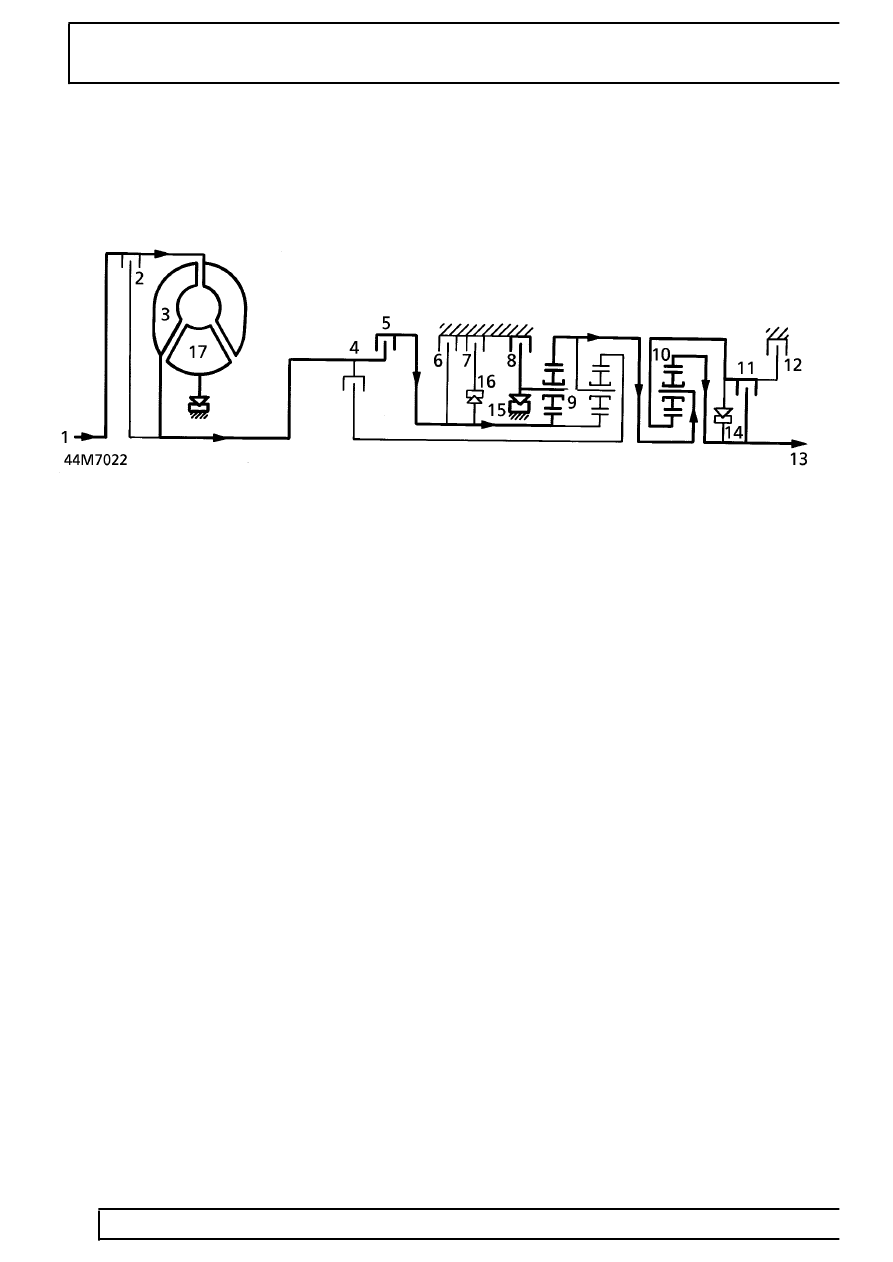

Reverse gear
Clutches 5, 8 and 11 are engaged. Since the front planet gear carrier of epicyclic gear set 9 is locked, the direction
of output-shaft rotation is reversed. Epicyclic gear set 10 also rotates as a solid block.
