WINDSCREEN WIPER AND WASHER OPERATION (84 - WIPERS AND WASHERS)

Make
Land Rover
Model
Discovery 300Tdi Discovery
Section
DESCRIPTION AND OPERATION › WINDSCREEN WIPER AND WASHER OPERATION
84 - WIPERS AND WASHERSWINDSCREEN WIPER AND WASHER OPERATION
background image

WIPERS AND WASHERS

1

DESCRIPTION AND OPERATION

WINDSCREEN WIPER AND WASHER OPERATION

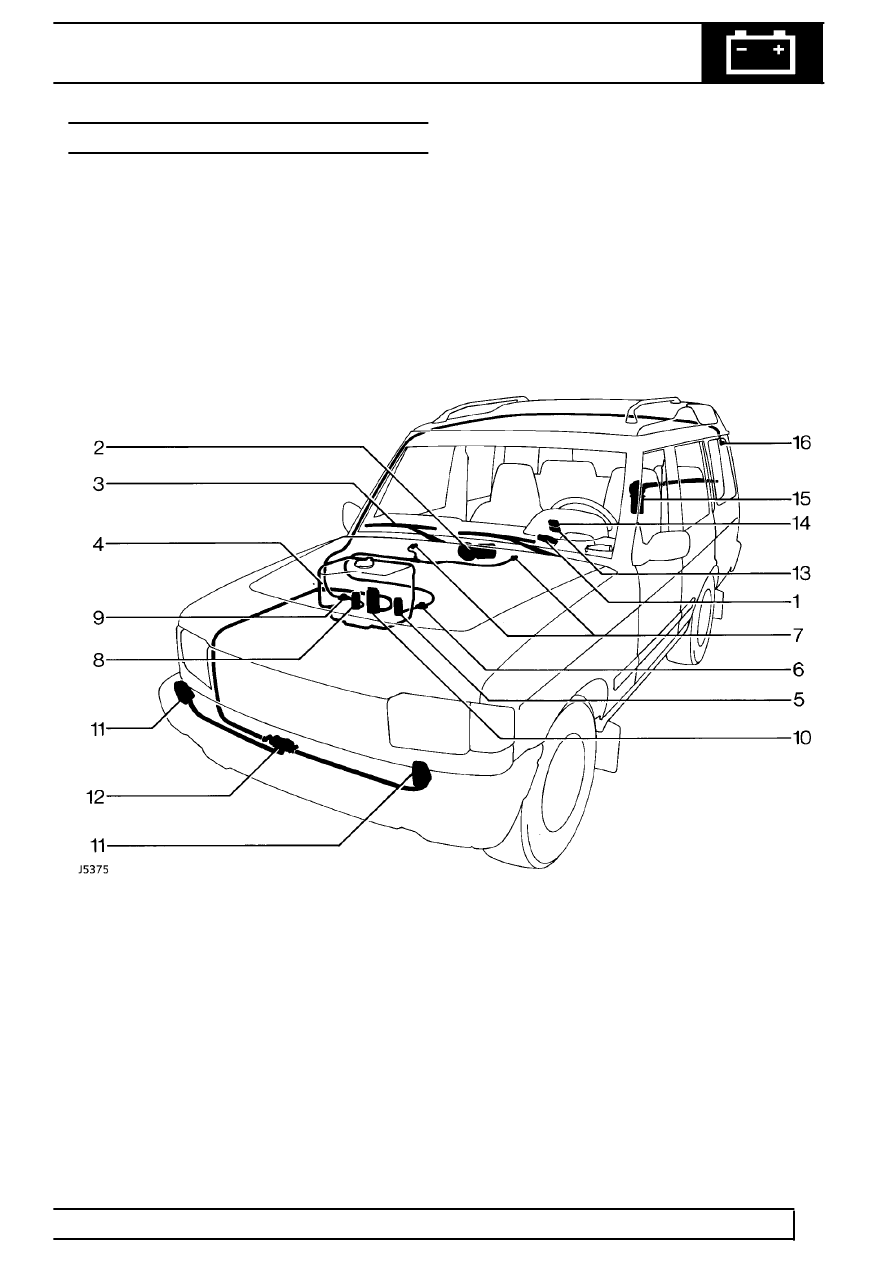

The illustration below locates and identifies the main
components of the windscreen and washer system
which is operated by a multi-switch on the right hand
side of the steering column.
All functions of the system are described in the
following paragraphs.

1. Multi-switch
2. Wiper motor
3. Wiper arm/blade
4. Washer reservoir
5. Windscreen washer motor/pump
6. Non return valve
7. Washer jet
8. Rear window washer motor pump
9. Non return valve

10. Headlamp power wash motor/pump
11. Headlamp power washer jet
12. Non return valve
13. Rear window wiper switch
14. Rear window washer switch
15. Rear window wiper motor, arm and blade
16. Washer jet
