75 - SUPPLEMENTARY RESTRAINT SYSTEM (SYSTEM COMPONENTS): DESCRIPTION AND OPERATION
- Make
- Land Rover
- Model
- Discovery 300Tdi Discovery
- Section
- DESCRIPTION AND OPERATION › SYSTEM COMPONENTS
75 - SUPPLEMENTARY RESTRAINT SYSTEMSYSTEM COMPONENTS
SUPPLEMENTARY RESTRAINT SYSTEM
1
DESCRIPTION AND OPERATION

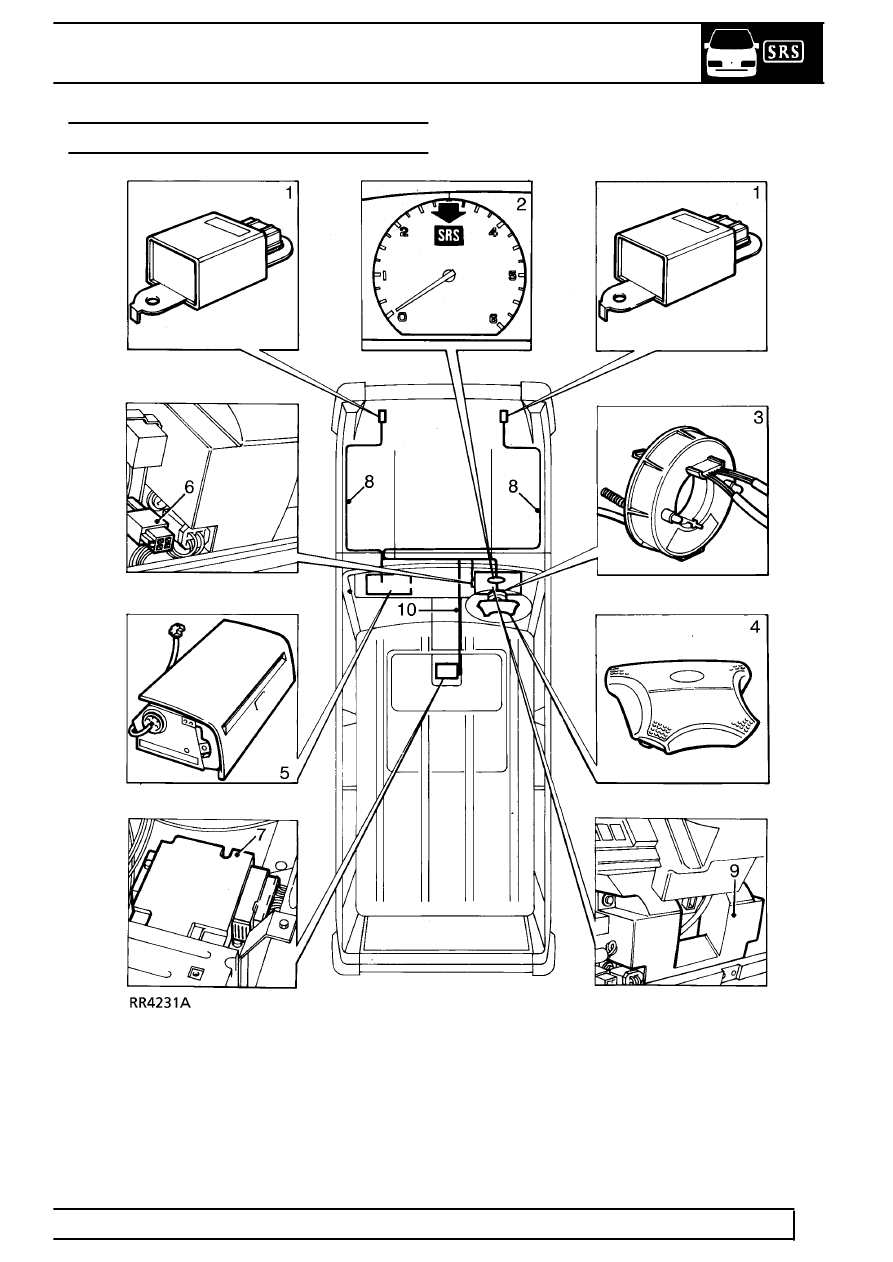

SYSTEM COMPONENTS
1. Airbag crash sensors (distributed SRS)
2. SRS warning light (airbag)
3. Rotary coupler
4. Driver’s airbag module
5. Passenger’s airbag module
6. Airbag diagnostic socket
7. Airbag diagnostic control unit
8. Airbag harness (distributed SRS)
9. Knee bolsters (where fitted)
10. Airbag harness
