64 - REAR SUSPENSIONAXLE LOCATION
REAR SUSPENSION
1
DESCRIPTION AND OPERATION
AXLE LOCATION
Longitudinal location of the rear axle is by solid round section steel link arms and a forged "A" frame, upper link
assembly, which is secured to a chassis cross member and provides transverse control. Long travel coil springs
and hydraulic shock absorbers provide the springing for each wheel.

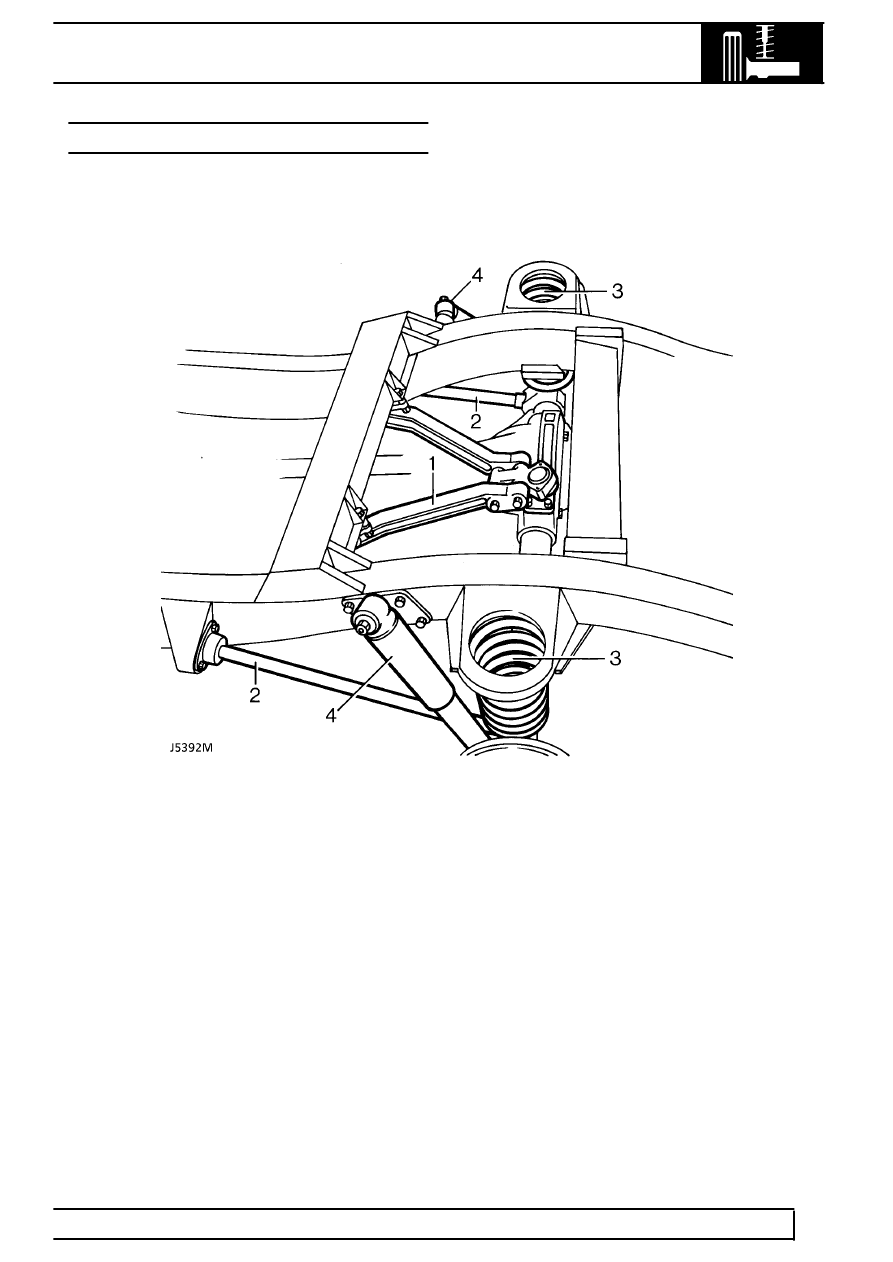

Rear axle suspension
1. "A" frame, upper link assembly - transverse location
2. Lower link assembly - longitudinal location
3. Coil springs
4. Shock absorber
