AIRBAG - Wiring diagram

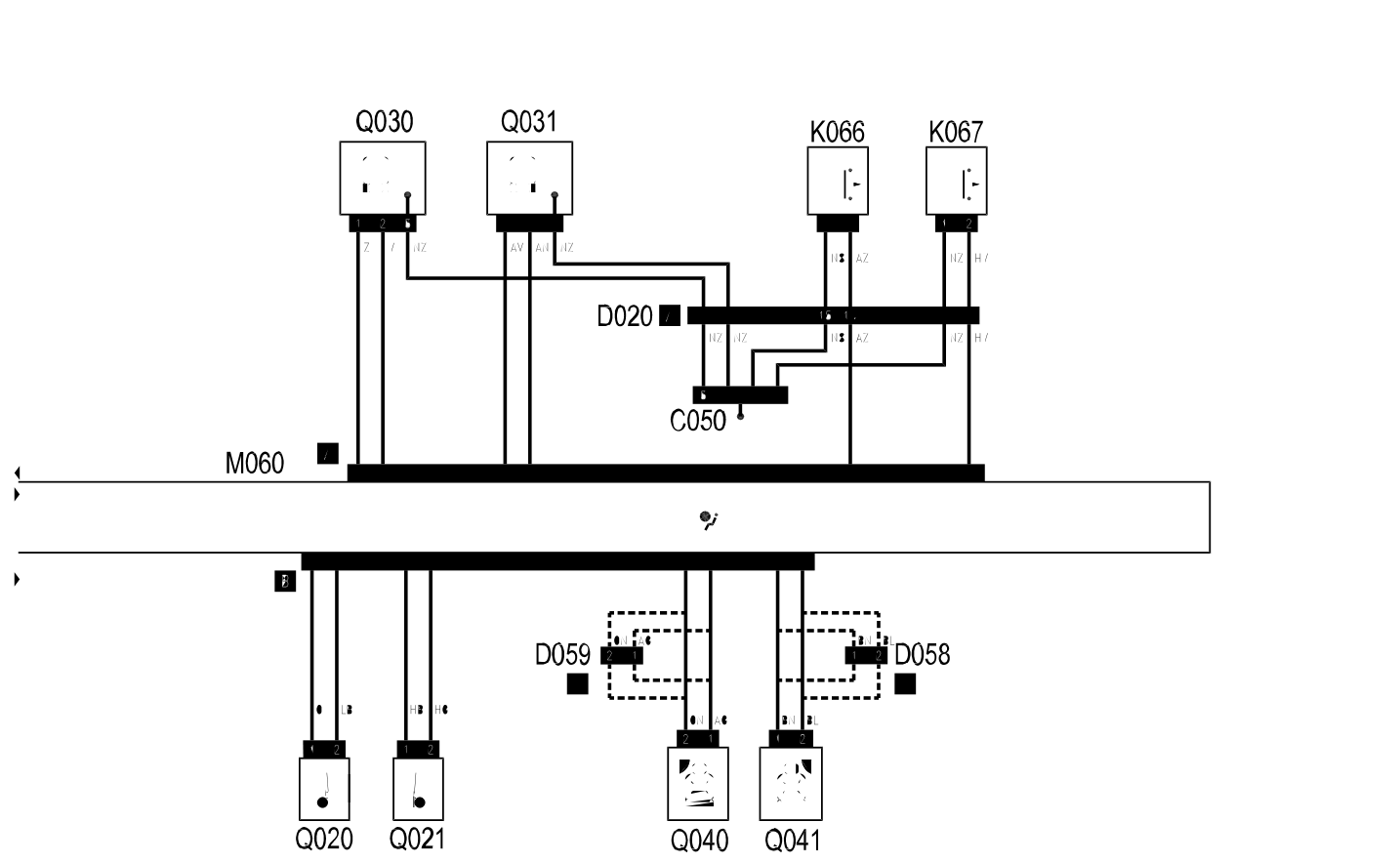

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
C20	Passenger side dashboard earth
C50	Air Bag earth
D1	Front / dashboard coupling
D20	/Rear dashboard coupling
D47	Clock spring coupling	5580C
D58	Passenger head bag coupling
D59	Driver's head bag coupling
E50	Instrument panel	5560B
H1	Ignition switch	5520A
H75	Passenger's Air Bag disablement switch	5580C
K39	Air-bag front sensor
K39	Air-bag front sensor	5580C
K66	Sensor for driver's, Side Bag	5580C
K67	Sensor for driver's, Side Bag	5580C
M1	Body computer	5505A
M60	Air bag control unit	5580C
Q9	Driver's Air Bag	5580C
Q11	Air Bag in dashboard (passenger side)	5580C
Q20	Driver's seat belt pre-tensioner	7065A
Q21	Front passenger seat belt pretensioner	7065A
Q30	Driver's Side Bag
Q30	Driver's Side Bag	7045A
Q31	Passenger Side Bag
Q31	Passenger Side Bag	7045A
Q40	Driver's Head Bag	5580C
Q41	Passenger Head Bag	5580C
