D20 /Rear dashboard coupling

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Intermediate couplings › D20 /Rear dashboard coupling

Connectors and pin-outsD20 /Rear dashboard coupling

D20 /Rear dashboard coupling

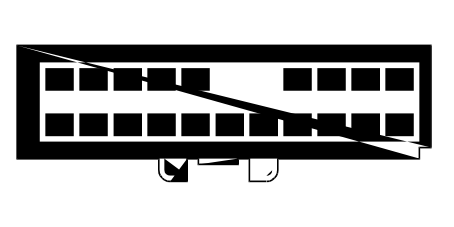

D20A – Facia

Wiring	Colour
20 FACIA

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		P20C	6
2		SZ		2
3		MV		M1H	23
4		AN		D1	10
8		NZ		C50	3
9		NZ		C50	2
11		SV		9
12		BV		18
13		SG		D8B	4
14		AZ		M60A	10
15		NS		C50	1
16		HV		M60A	9
17		NZ		C50	6

D20A – Rear

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		P70	6
2		SZ		7
3		MV		D45	2
4		AN		M1D	1
8		NZ		Q30	3
9		NZ		Q31	3
13		SG		K125	1
14		AZ		K66	2
15		NS		K66	1
16		HV		K67	2
17		NZ		K67	1

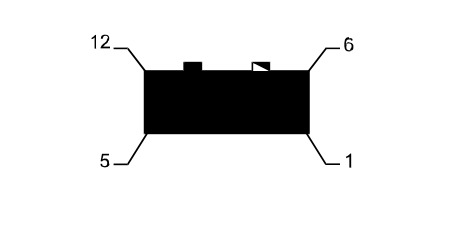

D20B – Facia

Wiring	Colour
20 FACIA	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	RN		P20B	5
2	1.5	BN		P20B	6
3	1.5	CN		P20B	7
4	1.5	CB		P20B	8
5	1.5	AG		P20B	1
6	1.5	AR		P20B	2
7		GN		M1H	17
8	1.5	NZ		P20B	4
9	1.5	SN		P20B	3
10		G		P20A	6
11		RM		P20A	5

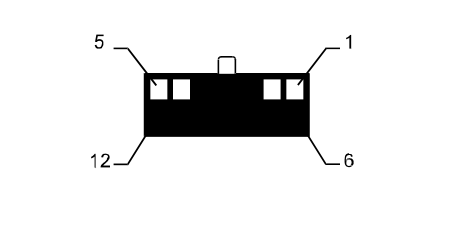

D20B – Rear

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	RN		D30	34
2	1.5	BN		D30	33
3	1.5	CN		P30	1
4	1.5	CB		P30	2
5	1.5	AG		P31	1
6	1.5	AR		P31	2
7		GN		H35	5
8	1.5	NZ		D31	34
9	1.5	SN		D31	33
10		G		D97	4
11		RM		P25	1

BOSE System

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		RN		P70	19
2		BN		P70	7
3		CN		P70	21
4		CB		P70	9
5		AG		P70	22
6		AR		P70	10
7		GN		H35	5
8		NZ		P70	8
9		SN		P70	20
10		G		D97	4
11		RM		P25	1
