Introduction - GEARBOX

1.2 8v, 1.2 16v, 1.4 16v

Manual gearbox positioned transversely in the engine compartment, including 3 shafts supported by bearings with the gears always meshed and a final drive reduction. The twin cable external control is made from plastic materials with excellent properties (resistance to fatigue, self-lubrication capacity, reduced weight)

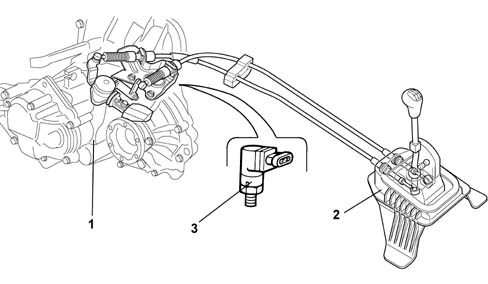

The C.514 5-speed gearbox is used for petrol versions (1.2 16v and 1.6 16v):

1, Manual gearbox with differential

2, Manual gearbox external controls

2, Speedometer sensor
