Lancia Ypsilon Factory Service Manual (2003-2011)21 · Connectors and pin-outs
21 · General

D58 Passenger head bag coupling

Make
Lancia
Model
Ypsilon Factory Service Manual
Year
2003–2011
Section
Intermediate couplings › D58 Passenger head bag coupling
Connectors and pin-outsD58 Passenger head bag coupling

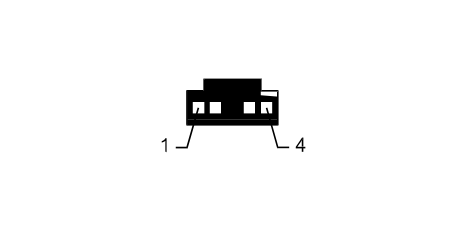

D58 Passenger head bag coupling

Powered sunroof

D58 Passenger head bag coupling
WiringColour
ARANCIO
PinCableDestination
Sec.ColourNodeConnect.Pin
1BNQ411
2BLQ412
D58 Passenger head bag coupling
WiringColour
25 REARARANCIO
PinCableDestination
Sec.ColourNodeConnect.Pin
1BNM60B19
2BLM60B20
