Vdc - location of components
- Make
- Alfa Romeo
- Model
- GT Factory Service Manual
- Year
- 2003–2010
- Section
- Vehicle electronic systems › Vdc - location of components
Wiring diagrams and electrical functionsVdc - location of components

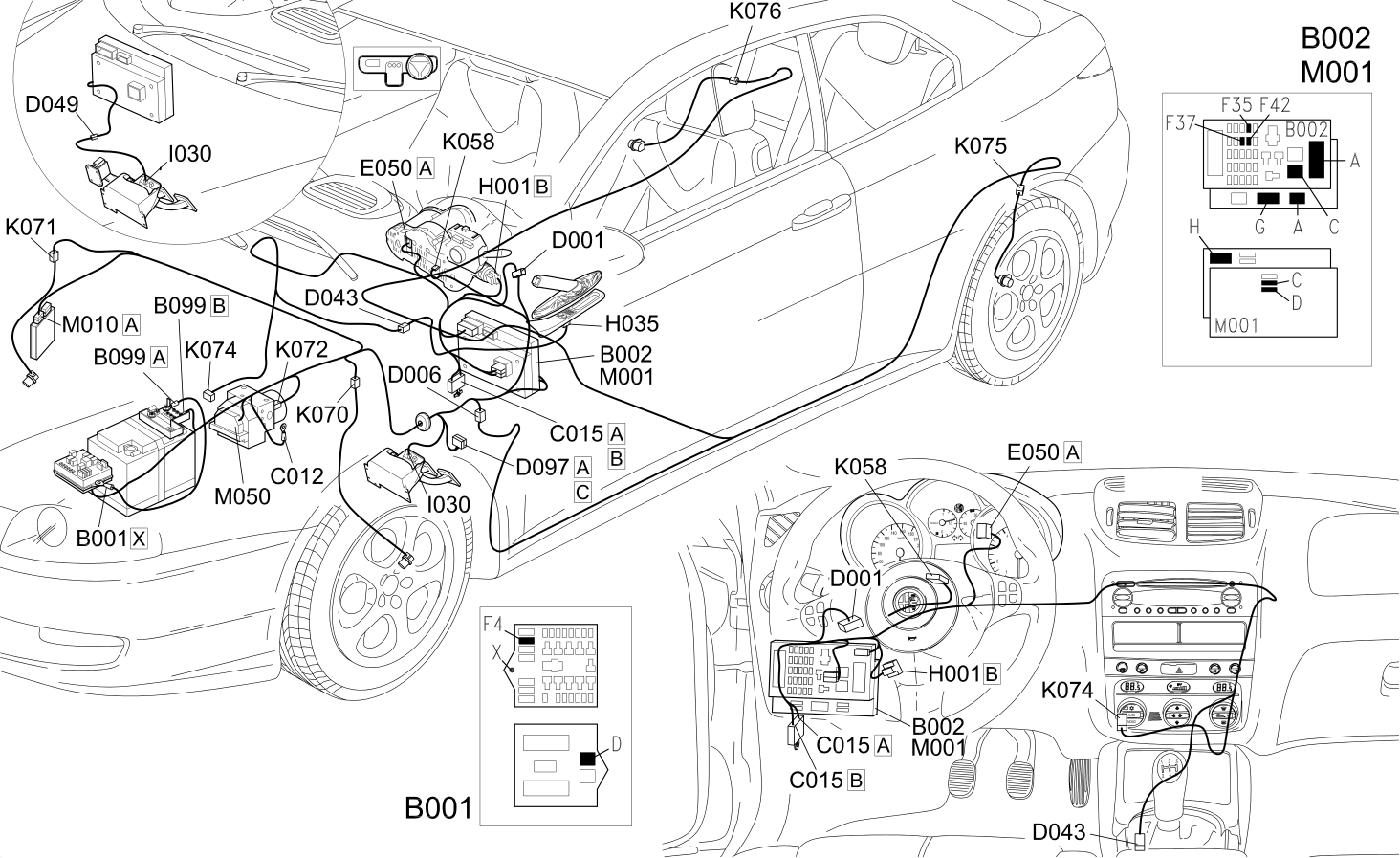

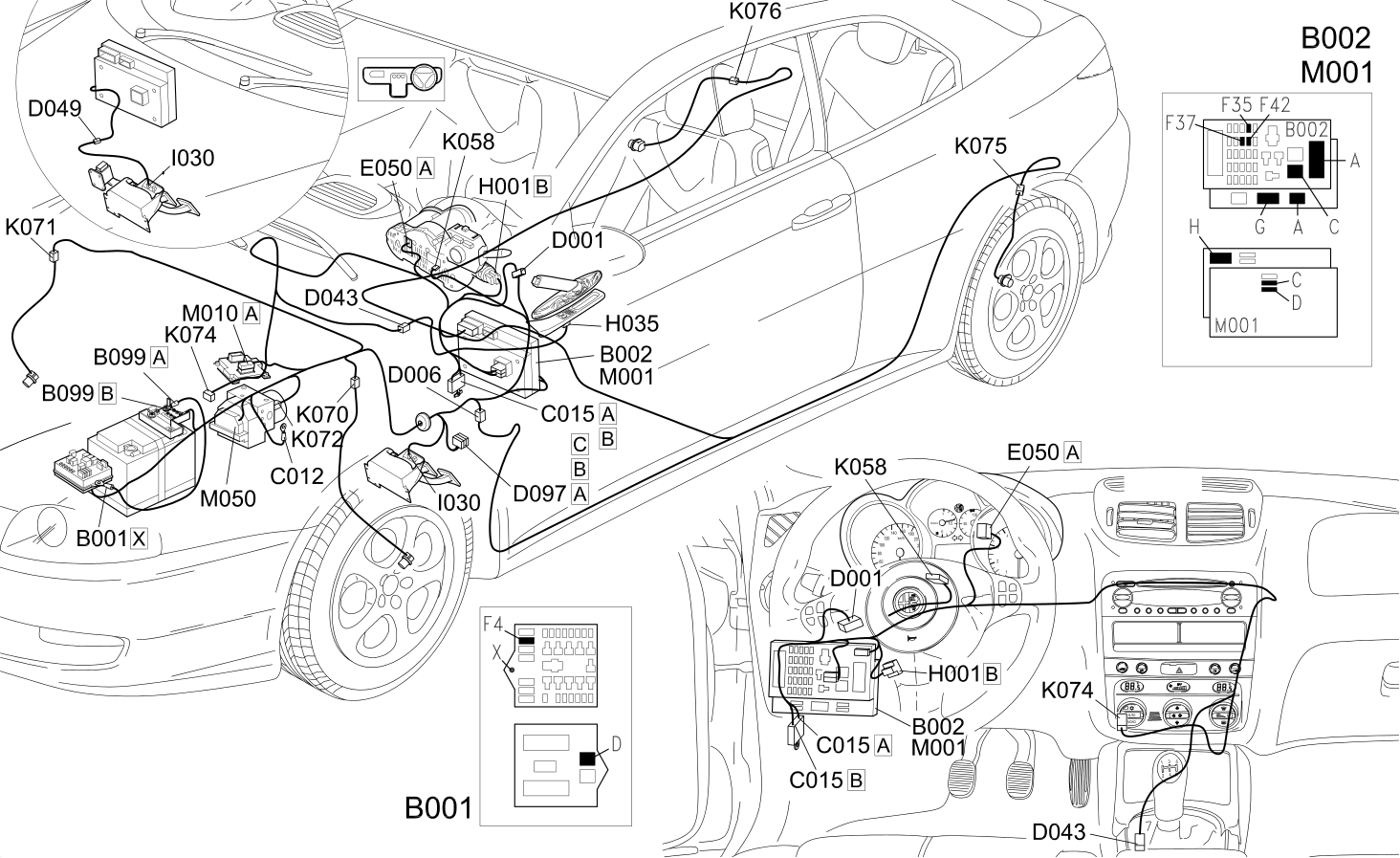

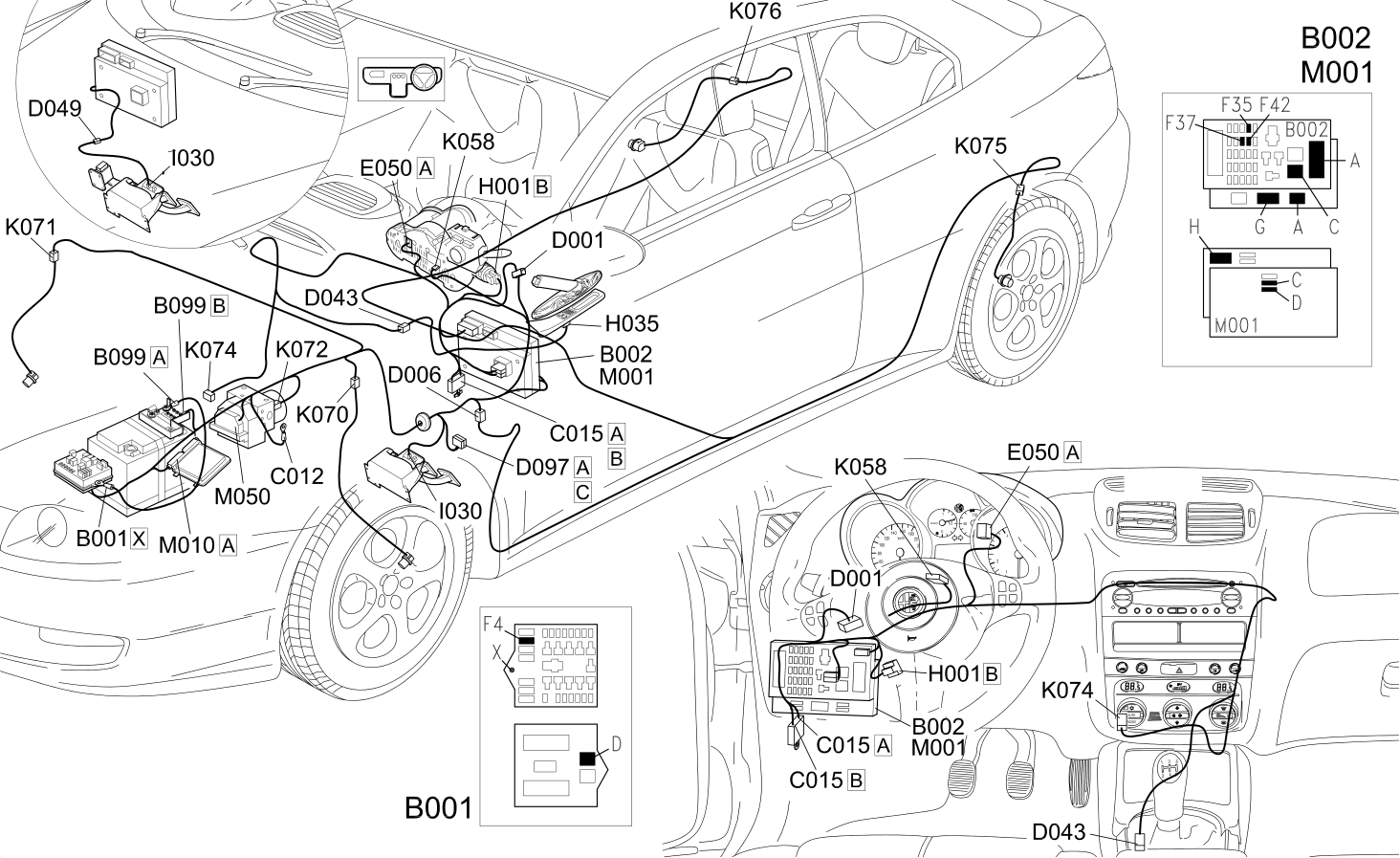

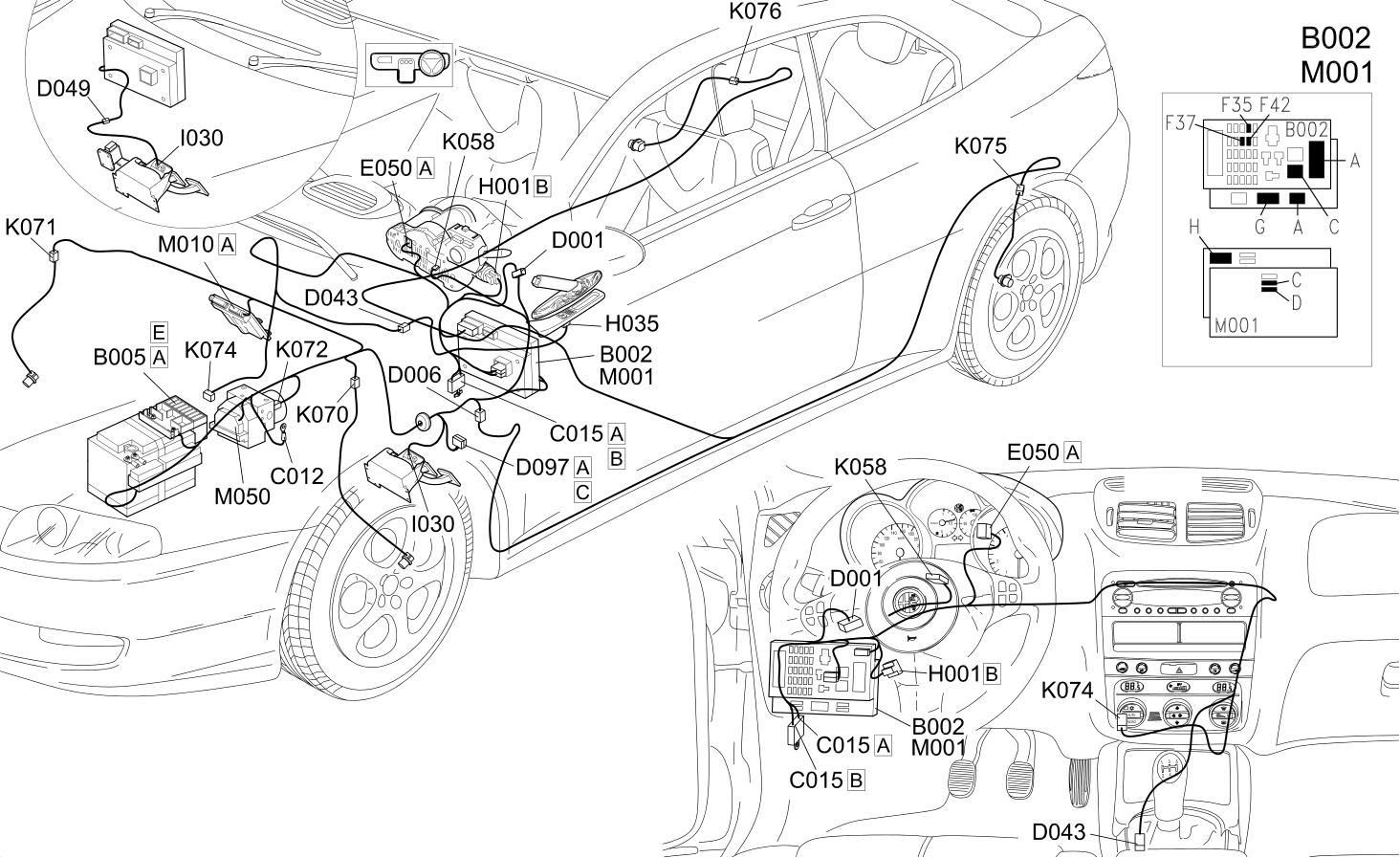

VDC - LOCATION OF COMPONENTS
Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | JUNCTION UNIT | |
| B1 | JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B2 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B5 | MAXI FUSE-1 BOX | |
| B99 | MAXIFUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C12 | ABS FRONT EARTH | |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| D1 | FRONT DASHBOARD COUPLING ( FRONT ) | |
| D43 | DASHBOARD/CENTRE CONSOLE COUPLING | |
| D97 | SHORT CIRCUITING COUPLING | |
| E50 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H1 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| H35 | SWITCHES ON TUNNEL ( CONNECTORS ) | Op. 7040L CABIN FLOOR COVERING |
| I30 | BRAKE PEDAL SWITCH ( FRONT ) | Op. 5550D BRAKE AND REVERSING LIGHTS |
| K58 | STEERING SENSOR ( FRONT ) | Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC |
| K70 | LEFT FRONT WHEEL SENSOR FOR ABS ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K71 | RIGHT. FRONT WHEEL SENSOR FOR ABS | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K72 | PRESSURE SENSOR VDC ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K74 | YAWING SENSOR | Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC |
| K75 | LEFT REAR WHEEL SENSOR FOR ABS ( CONNECTORS ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K76 | RIGHT REAR WHEEL SENSOR FOR ABS ( CONNECTORS ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| M1 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M10 | ENGINE MANAGEMENT ECU | 1056B |
| M10 | ENGINE MANAGEMENT ECU | Op. 1060G PRESSURE PUMP ELECTRIC CONTROL |
| M50 | ABS CONTROL UNIT ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | JUNCTION UNIT | |
| B1 | JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B2 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B5 | MAXI FUSE-1 BOX | |
| B99 | MAXIFUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C12 | ABS FRONT EARTH | |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| D1 | FRONT DASHBOARD COUPLING ( FRONT ) | |
| D43 | DASHBOARD/CENTRE CONSOLE COUPLING | |
| D97 | SHORT CIRCUITING COUPLING | |
| E50 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H1 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| H35 | SWITCHES ON TUNNEL ( CONNECTORS ) | Op. 7040L CABIN FLOOR COVERING |
| I30 | BRAKE PEDAL SWITCH ( FRONT ) | Op. 5550D BRAKE AND REVERSING LIGHTS |
| K58 | STEERING SENSOR ( FRONT ) | Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC |
| K70 | LEFT FRONT WHEEL SENSOR FOR ABS ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K71 | RIGHT. FRONT WHEEL SENSOR FOR ABS | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K72 | PRESSURE SENSOR VDC ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K74 | YAWING SENSOR | Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC |
| K75 | LEFT REAR WHEEL SENSOR FOR ABS ( CONNECTORS ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K76 | RIGHT REAR WHEEL SENSOR FOR ABS ( CONNECTORS ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| M1 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M10 | ENGINE MANAGEMENT ECU | 1056B |
| M10 | ENGINE MANAGEMENT ECU | Op. 1060G PRESSURE PUMP ELECTRIC CONTROL |
| M50 | ABS CONTROL UNIT ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | JUNCTION UNIT | |
| B1 | JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B2 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B5 | MAXI FUSE-1 BOX | |
| B99 | MAXIFUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C12 | ABS FRONT EARTH | |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| D1 | FRONT DASHBOARD COUPLING ( FRONT ) | |
| D43 | DASHBOARD/CENTRE CONSOLE COUPLING | |
| D97 | SHORT CIRCUITING COUPLING | |
| E50 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H1 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| H35 | SWITCHES ON TUNNEL ( CONNECTORS ) | Op. 7040L CABIN FLOOR COVERING |
| I30 | BRAKE PEDAL SWITCH ( FRONT ) | Op. 5550D BRAKE AND REVERSING LIGHTS |
| K58 | STEERING SENSOR ( FRONT ) | Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC |
| K70 | LEFT FRONT WHEEL SENSOR FOR ABS ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K71 | RIGHT. FRONT WHEEL SENSOR FOR ABS | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K72 | PRESSURE SENSOR VDC ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K74 | YAWING SENSOR | Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC |
| K75 | LEFT REAR WHEEL SENSOR FOR ABS ( CONNECTORS ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K76 | RIGHT REAR WHEEL SENSOR FOR ABS ( CONNECTORS ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| M1 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M10 | ENGINE MANAGEMENT ECU | 1056B |
| M10 | ENGINE MANAGEMENT ECU | Op. 1060G PRESSURE PUMP ELECTRIC CONTROL |
| M50 | ABS CONTROL UNIT ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
Location of components
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | JUNCTION UNIT | |
| B1 | JUNCTION UNIT | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B2 | JUNCTION UNIT UNDER DASHBOARD | Op. 5505A MULTI-FUNCTION COMPONENTS |
| B5 | MAXI FUSE-1 BOX | |
| B99 | MAXIFUSE BOX ON BATTERY | Op. 5530B BATTERY AND LEADS |
| C12 | ABS FRONT EARTH | |
| C15 | FACIA EARTH, DRIVER''S SIDE | |
| D1 | FRONT DASHBOARD COUPLING ( FRONT ) | |
| D43 | DASHBOARD/CENTRE CONSOLE COUPLING | |
| D97 | SHORT CIRCUITING COUPLING | |
| E50 | INSTRUMENT PANEL | Op. 5560B ANALOGUE CONTROL PANEL |
| H1 | IGNITION SWITCH | Op. 5520A IGNITION SWITCH |
| H35 | SWITCHES ON TUNNEL ( CONNECTORS ) | Op. 7040L CABIN FLOOR COVERING |
| I30 | BRAKE PEDAL SWITCH ( FRONT ) | Op. 5550D BRAKE AND REVERSING LIGHTS |
| K58 | STEERING SENSOR ( FRONT ) | Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC |
| K70 | LEFT FRONT WHEEL SENSOR FOR ABS ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K71 | RIGHT. FRONT WHEEL SENSOR FOR ABS | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K72 | PRESSURE SENSOR VDC ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K74 | YAWING SENSOR | Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC |
| K75 | LEFT REAR WHEEL SENSOR FOR ABS ( CONNECTORS ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| K76 | RIGHT REAR WHEEL SENSOR FOR ABS ( CONNECTORS ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
| M1 | BODY COMPUTER | Op. 5505A MULTI-FUNCTION COMPONENTS |
| M10 | ENGINE MANAGEMENT ECU | 1056B |
| M10 | ENGINE MANAGEMENT ECU | Op. 1060G PRESSURE PUMP ELECTRIC CONTROL |
| M50 | ABS CONTROL UNIT ( FRONT ) | Op. 3340A ABS CHECK/ADJUSTMENT DEVICES |
