D89 Parking bumper/bridge coupling

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Intermediate couplings › D89 Parking bumper/bridge coupling

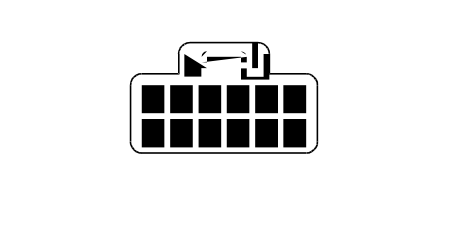

Connectors and pin-outsD89 Parking bumper/bridge coupling

D89 Parking bumper/bridge coupling

Parking sensor

Wiring	Colour
Connectors

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		ZB		K97A	2
B		SV		K97C	2
C		HV		K97D	2
D		BS		K97B	2
E		NZ		K97B	3
F		AZ		K97B	1
G		NZ		K97D	3
H		CB		K97D	1
J		NZ		K97C	3
K		NZ		K97A	3
L		BV		K97C	1
M		AR		K97A	1

Wiring	Colour
Connectors

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		NZ		M84B	5
B		SV		M84B	3
C		HV		M84B	2
D		BS		M84B	4
E		NZ		M84B	8
F		AZ		M84B	11
G		NZ		M84B	1
H		CB		M84B	6
J		NZ		M84B	7
K		NZ		M84B	9
L		BV		M84B	10
M		AR		M84B	12
