Courtesy lights - wiring diagram

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Interior lighting › Courtesy lights - wiring diagram

Wiring diagrams and electrical functionsCourtesy lights - wiring diagram

COURTESY LIGHTS - WIRING DIAGRAM

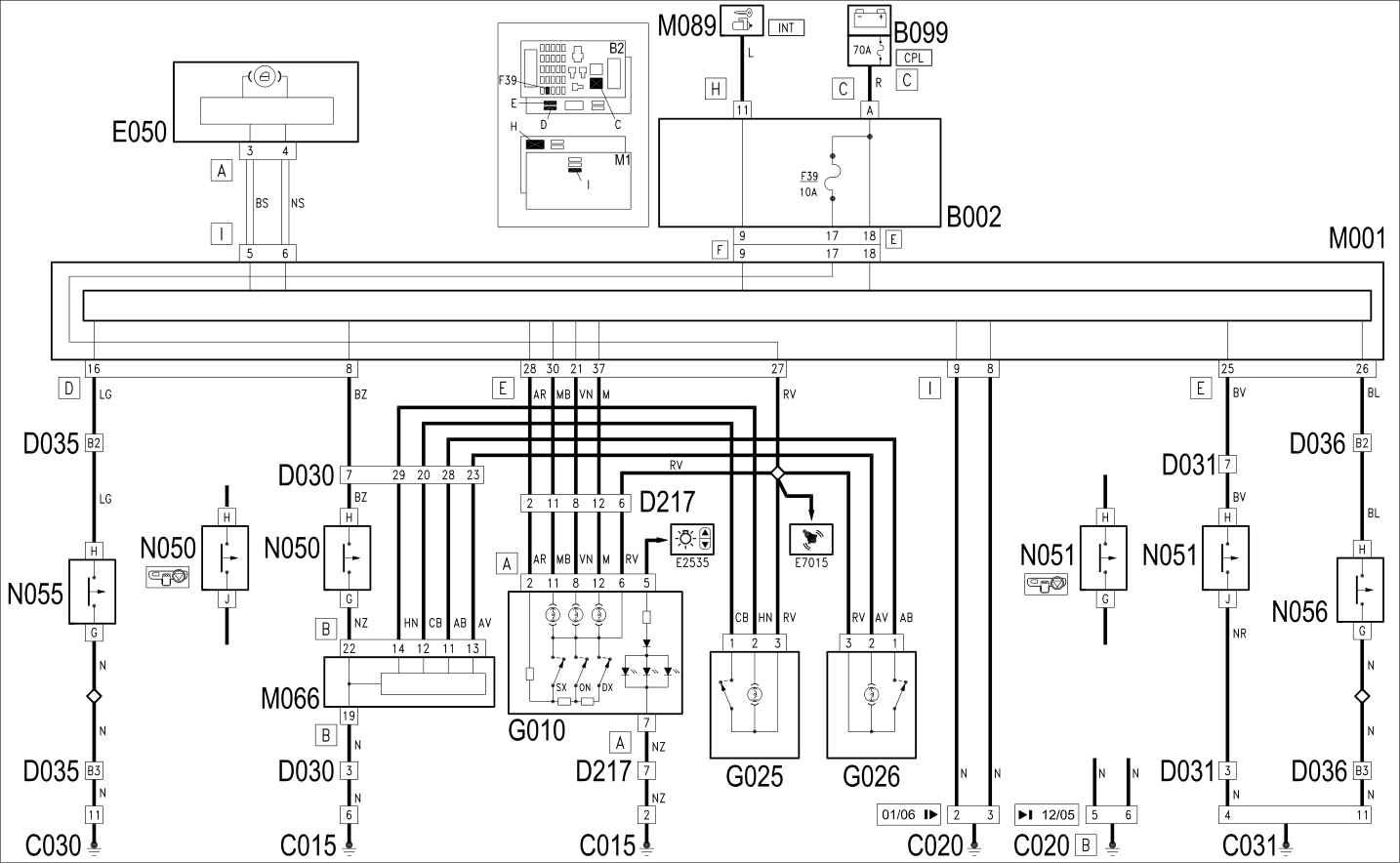

Low setup

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
G020	REAR (CENTRE) COURTESY LIGHT	Op. 7040E46 REAR COURTESY LIGHT ASSEMBLY - R R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N21 FRONT SIDE DOOR LOCK MOTOR/LOCK ASSEMBLEY FOR ONE DOOR, LEFT OR RIGHT - R.R.
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N21 FRONT SIDE DOOR LOCK MOTOR/LOCK ASSEMBLEY FOR ONE DOOR, LEFT OR RIGHT - R.R.
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N21 REAR SIDE DOOR LOCK MOTOR/LOCK ASSEMBLY, LEFT OR RIGHT - R.R
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N21 REAR SIDE DOOR LOCK MOTOR/LOCK ASSEMBLY, LEFT OR RIGHT - R.R

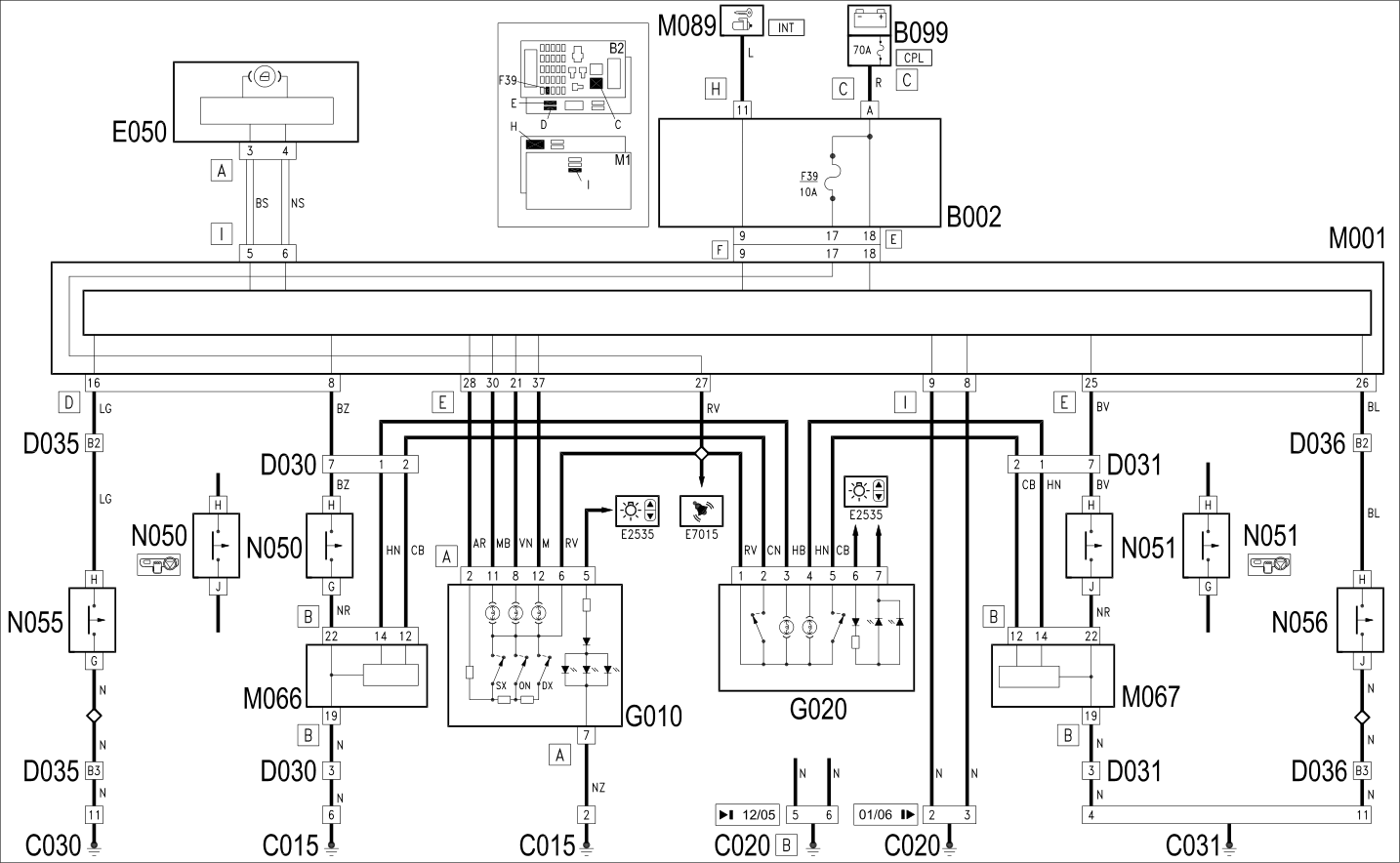

High setup, Powered sunroof

WIRING DIAGRAM

COMPONENTS

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D217	REAR/COURTESY LIGHT WIRING COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
G025	LEFT REAR COURTESY LIGHT	Op. 7040E15 SIDE COURTESY LIGHT (ONE) - R.R. ON VERSIONS WITH SUN ROOF
G026	RIGHT REAR COURTESY LIGHT	Op. 7040E15 SIDE COURTESY LIGHT (ONE) - R.R. ON VERSIONS WITH SUN ROOF
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M067	PASSENGER DOOR CONTROL UNIT (NPP)	Op. 5505A47 PASSENGER SIDE DOOR CONTROL UNIT DIGITAL NETWORK MODE R R WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N21 FRONT SIDE DOOR LOCK MOTOR/LOCK ASSEMBLEY FOR ONE DOOR, LEFT OR RIGHT - R.R.
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N21 FRONT SIDE DOOR LOCK MOTOR/LOCK ASSEMBLEY FOR ONE DOOR, LEFT OR RIGHT - R.R.
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N21 REAR SIDE DOOR LOCK MOTOR/LOCK ASSEMBLY, LEFT OR RIGHT - R.R
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N21 REAR SIDE DOOR LOCK MOTOR/LOCK ASSEMBLY, LEFT OR RIGHT - R.R

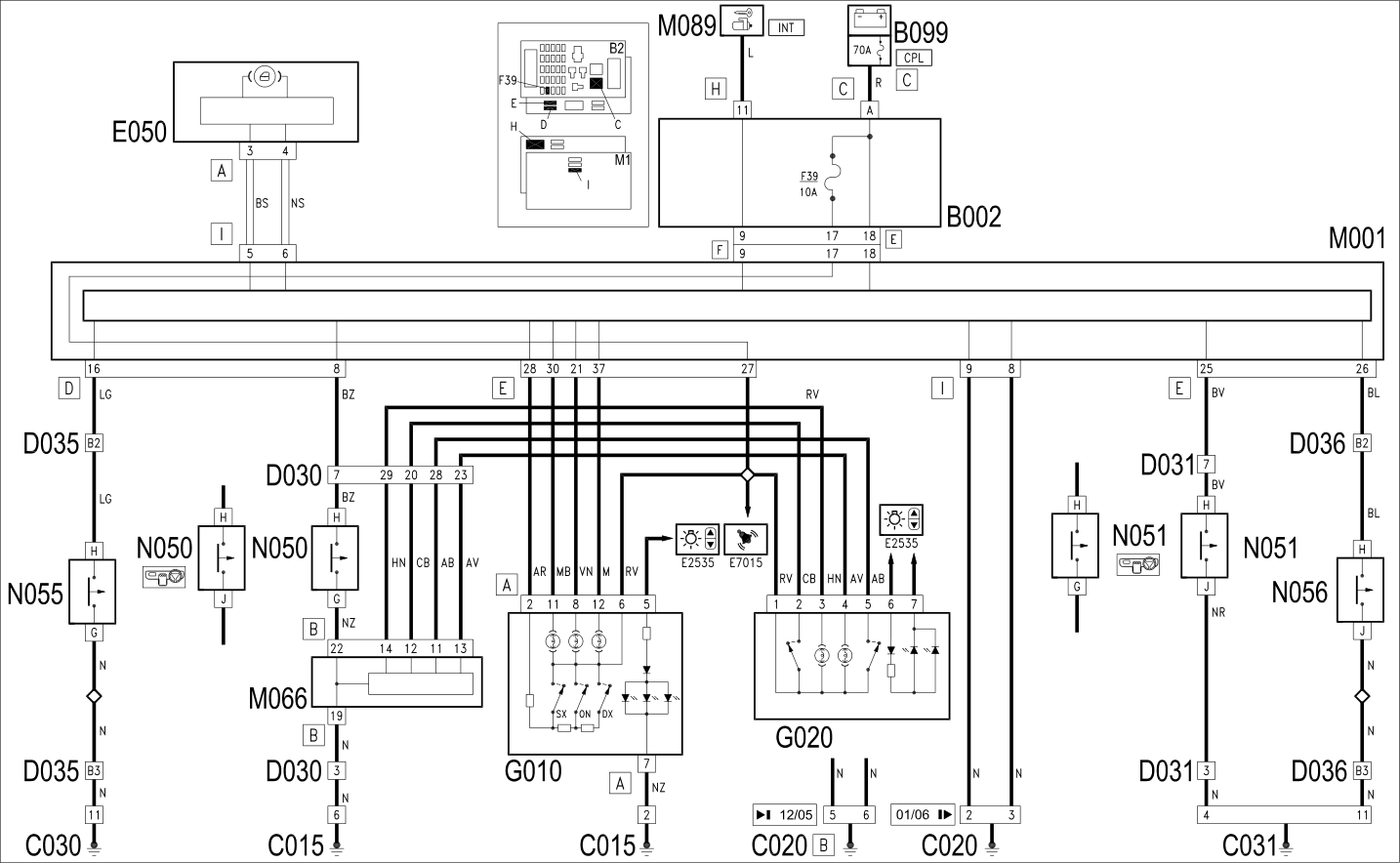

Low setup, Powered sunroof

WIRING DIAGRAM

COMPONENTS

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D217	REAR/COURTESY LIGHT WIRING COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
G025	LEFT REAR COURTESY LIGHT	Op. 7040E15 SIDE COURTESY LIGHT (ONE) - R.R. ON VERSIONS WITH SUN ROOF
G026	RIGHT REAR COURTESY LIGHT	Op. 7040E15 SIDE COURTESY LIGHT (ONE) - R.R. ON VERSIONS WITH SUN ROOF
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N21 FRONT SIDE DOOR LOCK MOTOR/LOCK ASSEMBLEY FOR ONE DOOR, LEFT OR RIGHT - R.R.
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N21 FRONT SIDE DOOR LOCK MOTOR/LOCK ASSEMBLEY FOR ONE DOOR, LEFT OR RIGHT - R.R.
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N21 REAR SIDE DOOR LOCK MOTOR/LOCK ASSEMBLY, LEFT OR RIGHT - R.R
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N21 REAR SIDE DOOR LOCK MOTOR/LOCK ASSEMBLY, LEFT OR RIGHT - R.R

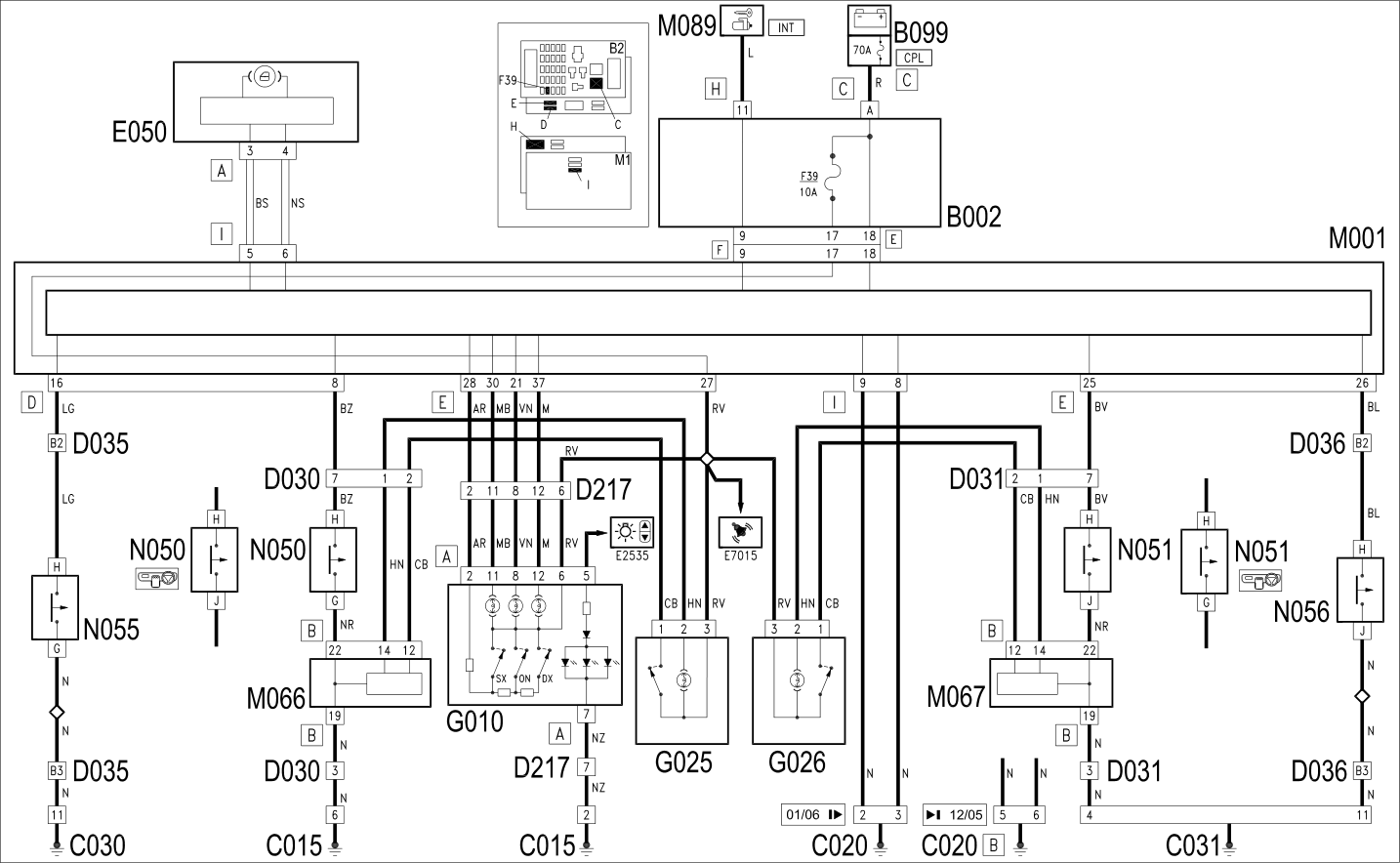

High setup

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
G020	REAR (CENTRE) COURTESY LIGHT	Op. 7040E46 REAR COURTESY LIGHT ASSEMBLY - R R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M067	PASSENGER DOOR CONTROL UNIT (NPP)	Op. 5505A47 PASSENGER SIDE DOOR CONTROL UNIT DIGITAL NETWORK MODE R R WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N21 FRONT SIDE DOOR LOCK MOTOR/LOCK ASSEMBLEY FOR ONE DOOR, LEFT OR RIGHT - R.R.
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N21 FRONT SIDE DOOR LOCK MOTOR/LOCK ASSEMBLEY FOR ONE DOOR, LEFT OR RIGHT - R.R.
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N21 REAR SIDE DOOR LOCK MOTOR/LOCK ASSEMBLY, LEFT OR RIGHT - R.R
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N21 REAR SIDE DOOR LOCK MOTOR/LOCK ASSEMBLY, LEFT OR RIGHT - R.R
