BRAKE LIGHTS - COMPONENT LOCATION

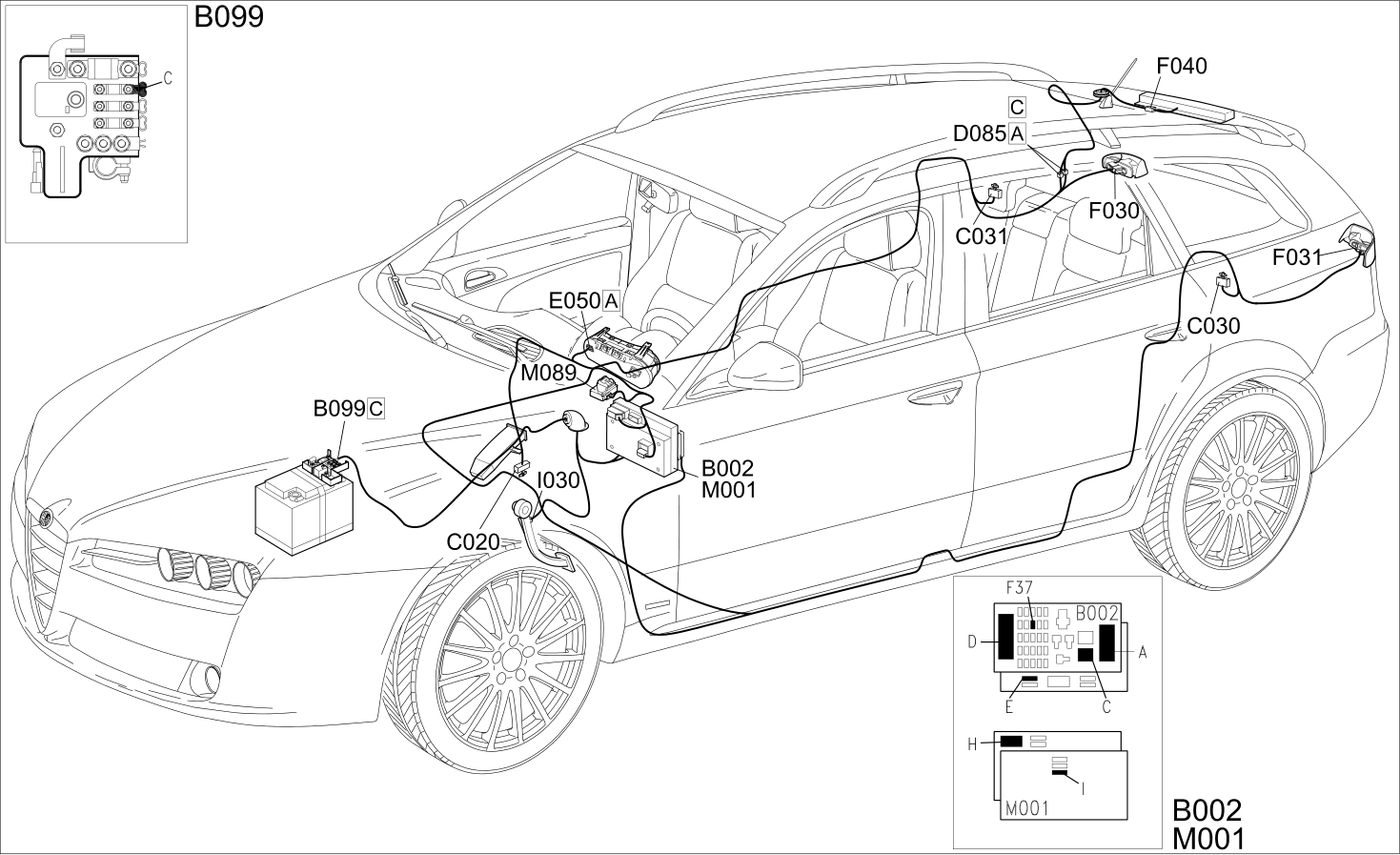

Station Wagon

COMPONENT LOCATION

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D085	REAR/TAILGATE COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
F030	LEFT REAR LIGHT CLUSTER	Op. 5540A56 EXTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R.
F031	RIGHT REAR LIGHT CLUSTER	Op. 5540A56 EXTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R.
F040	ADDITIONAL TAIL-LIGHT ('THIRD BRAKE LIGHT)	Op. 5550D16 THIRD BRAKE LIGHT - R+R
I030	BRAKE PEDAL SWITCH	Op. 5550D10 BRAKE LIGHT SWITCH - R+R Op. 1060D38 SWITCH ON BRAKE PEDAL - R.R (DIESEL ENGINES)
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R

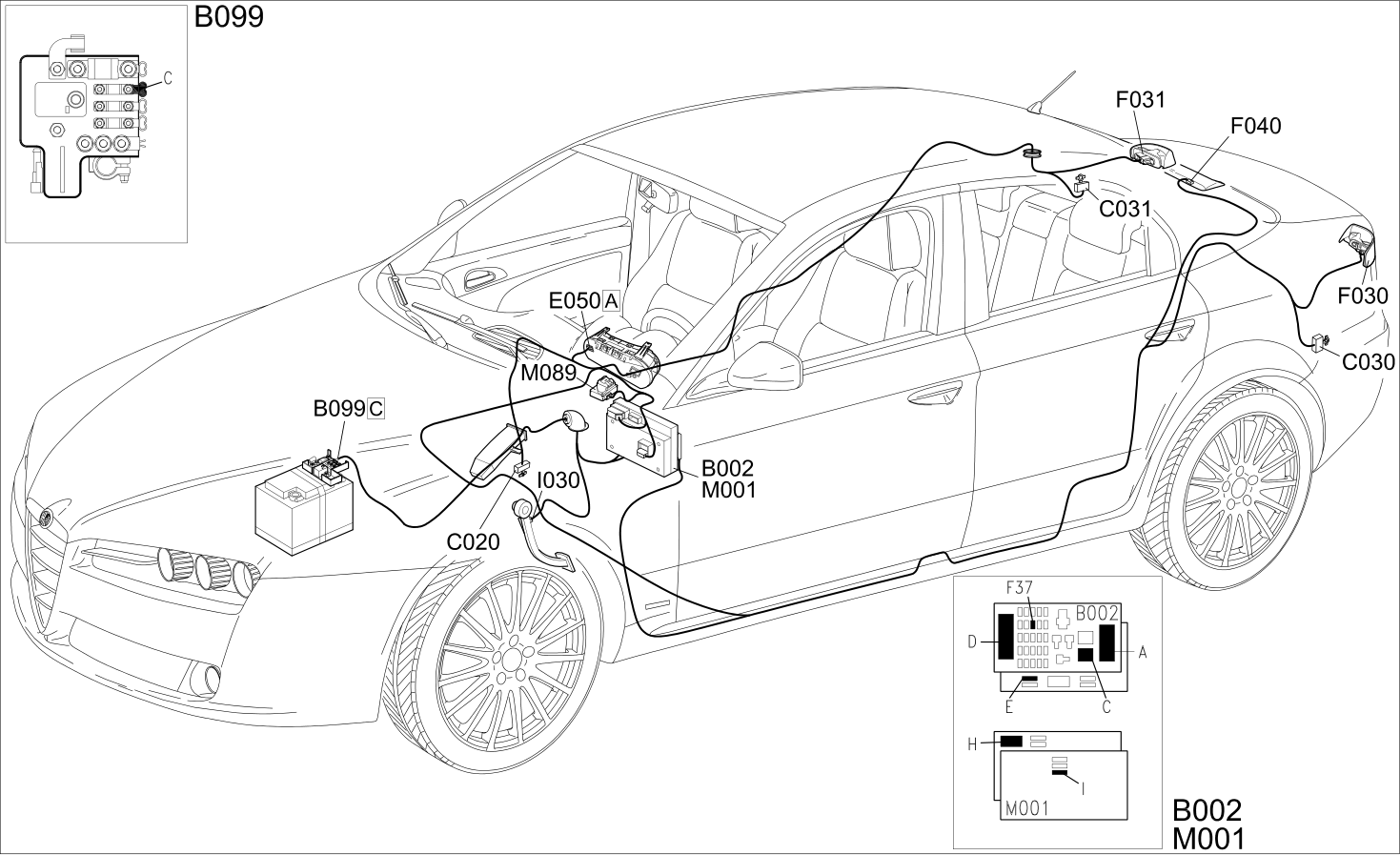

All versions

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
F030	LEFT REAR LIGHT CLUSTER	Op. 5540A56 EXTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R.
F031	RIGHT REAR LIGHT CLUSTER	Op. 5540A56 EXTERIOR REAR LIGHT (ONE), LEFT OR RIGHT - R.R.
F040	ADDITIONAL TAIL-LIGHT ('THIRD BRAKE LIGHT)	Op. 5550D16 THIRD BRAKE LIGHT - R+R
I030	BRAKE PEDAL SWITCH	Op. 5550D10 BRAKE LIGHT SWITCH - R+R Op. 1060D38 SWITCH ON BRAKE PEDAL - R.R (DIESEL ENGINES)
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
