D085 rear/tailgate coupling

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Intermediate couplings › D085 rear/tailgate coupling

Connectors and pin-outsD085 rear/tailgate coupling

D085 REAR/TAILGATE COUPLING

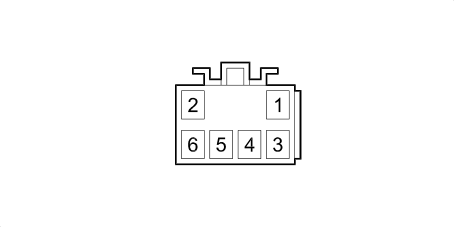

D085A – Tailgate

Station Wagon

Wiring	Colour
See 27 TAILGATE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		L		See G041 TAILGATE COURTESY LIGHT	1
2	1,5	N	X	See F040 ADDITIONAL TAIL-LIGHT ('THIRD BRAKE LIGHT)	2
				See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	3
				See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	3
				See N057 BOOT LOCK GEARED MOTOR	2
				See N057 BOOT LOCK GEARED MOTOR	3
				See N016 REAR WINDOW WIPER MOTOR	1
3		LN	X	See G041 TAILGATE COURTESY LIGHT	2
				See N057 BOOT LOCK GEARED MOTOR	4
4	1	CN		See N016 REAR WINDOW WIPER MOTOR	3
5		HV		See N016 REAR WINDOW WIPER MOTOR	2
6		G		See N057 BOOT LOCK GEARED MOTOR	5

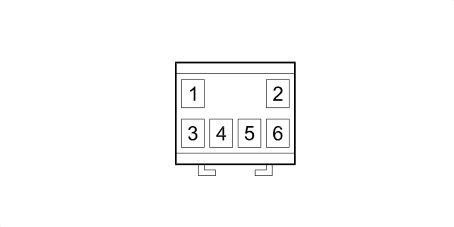

D085A – Rear

Station Wagon

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		L	X	See G040A BOOT COURTESY LIGHT (REAR)	2
				See G040B BOOT COURTESY LIGHT (REAR)	2
				See M001E BODY COMPUTER (REAR)	23
2	1,5	N		See C030 LEFT REAR EARTH	4
3		LN	X	See G040A BOOT COURTESY LIGHT (REAR)	3
				See G040B BOOT COURTESY LIGHT (REAR)	3
				See M001E BODY COMPUTER (REAR)	36
4	1	CN		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	20
5		HV		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	9
6		G		See M001E BODY COMPUTER (REAR)	24

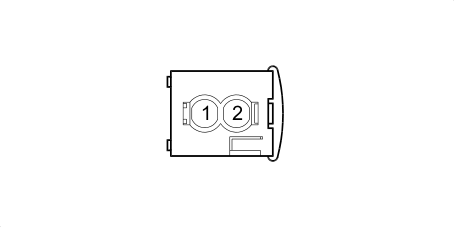

D085B – Tailgate

Station Wagon

Wiring	Colour
See 27 TAILGATE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	R		See P055A HEATED REARSCREEN (REAR)	1
2	4	N		See P055B HEATED REARSCREEN (REAR)	1

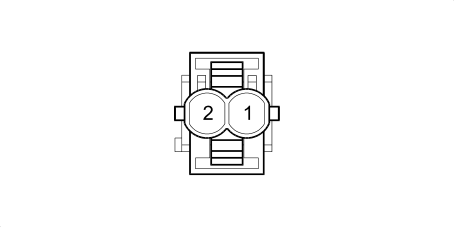

D085B – Rear

Station Wagon

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	R		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	15
2	4	N		See C032 REARSCREEN EARTH	1

D085C – Tailgate

Station Wagon

Wiring	Colour
See 27 TAILGATE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	RN		See N057 BOOT LOCK GEARED MOTOR	1
2		HR		See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
3		GV		See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	2
4	1,0	S		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
5		GN		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	2
6		B		See F040 ADDITIONAL TAIL-LIGHT ('THIRD BRAKE LIGHT)	1

Right hand drive, Station Wagon

Wiring	Colour
See 27 TAILGATE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	RN		See N057 BOOT LOCK GEARED MOTOR	1
2		HN		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
3		GV		See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	2
4	1,0	S		See F035 LEFT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
5		GN		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	2
6		B		See F040 ADDITIONAL TAIL-LIGHT ('THIRD BRAKE LIGHT)	1

D085C – Rear

Station Wagon

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	RN		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	18
2		HR		See M001E BODY COMPUTER (REAR)	31
3		GV	X	See M001D BODY COMPUTER (REAR)	5
				See F030 LEFT REAR LIGHT CLUSTER	3
4	1,0	S		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	7
5		GN	X	See M001D BODY COMPUTER (REAR)	6
				See F031 RIGHT REAR LIGHT CLUSTER	3
6		B		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	5
