G041 tailgate courtesy light
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Interior lights › G041 tailgate courtesy light
Connectors and pin-outsG041 tailgate courtesy light

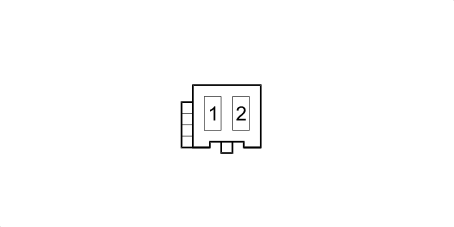

G041 TAILGATE COURTESY LIGHT
| Wiring | Colour |
|---|---|
| See 27 TAILGATE | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | L | See D085A (TAILGATE) | 1 | ||
| 2 | LN | X | See D085A (TAILGATE) | 3 | |
| See N057 BOOT LOCK GEARED MOTOR | 4 | ||||
