D081 injector junction

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Intermediate couplings › D081 injector junction

Connectors and pin-outsD081 injector junction

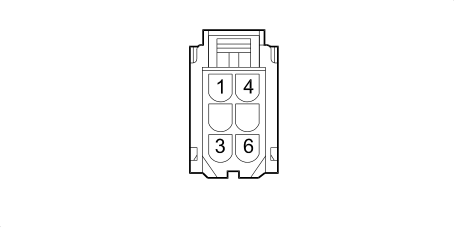

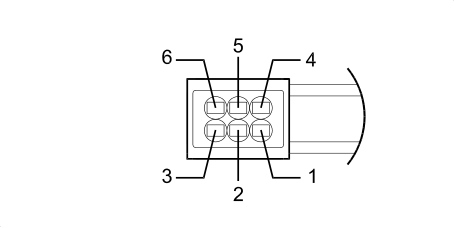

D081 INJECTOR JUNCTION

D081A – Coil and injector bridge

3.2 JTS

Wiring	Colour
See 55 COILS/INJECTORS BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1				See N070E INJECTOR (COIL AND INJECTOR BRIDGE)	1
2				See N070E INJECTOR (COIL AND INJECTOR BRIDGE)	2
3				See N070C INJECTOR (COIL AND INJECTOR BRIDGE)	1
4				See N070C INJECTOR (COIL AND INJECTOR BRIDGE)	2
5				See N070A INJECTOR (COIL AND INJECTOR BRIDGE)	1
6				See N070A INJECTOR (COIL AND INJECTOR BRIDGE)	2

D081A – Engine

3.2 JTS

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		V		See M010B ENGINE MANAGEMENT ECU (ENGINE)	34
2		MB		See M010B ENGINE MANAGEMENT ECU (ENGINE)	35
3		Z		See M010B ENGINE MANAGEMENT ECU (ENGINE)	18
4		SN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	17
5		R		See M010B ENGINE MANAGEMENT ECU (ENGINE)	48
6		MB		See M010B ENGINE MANAGEMENT ECU (ENGINE)	47

D081B – Coil and injector bridge

3.2 JTS

Wiring	Colour
See 55 COILS/INJECTORS BRIDGE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1				See N070F INJECTOR (COIL AND INJECTOR BRIDGE)	1
2				See N070F INJECTOR (COIL AND INJECTOR BRIDGE)	2
3				See N070D INJECTOR (COIL AND INJECTOR BRIDGE)	1
4				See N070D INJECTOR (COIL AND INJECTOR BRIDGE)	2
5				See N070B INJECTOR (COIL AND INJECTOR BRIDGE)	1
6				See N070B INJECTOR (COIL AND INJECTOR BRIDGE)	2

D081B – Engine

3.2 JTS

Wiring	Colour
See 50 ENGINE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		A		See M010B ENGINE MANAGEMENT ECU (ENGINE)	19
2		Z		See M010B ENGINE MANAGEMENT ECU (ENGINE)	20
3		S		See M010B ENGINE MANAGEMENT ECU (ENGINE)	49
4		AN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	50
5		G		See M010B ENGINE MANAGEMENT ECU (ENGINE)	33
6		VN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	32
