G040 boot courtesy light
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Interior lights › G040 boot courtesy light
Connectors and pin-outsG040 boot courtesy light

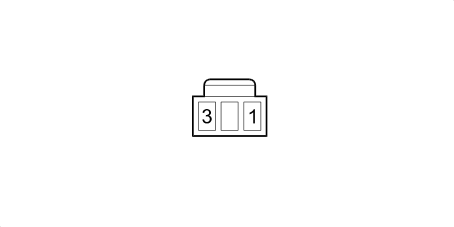

G040 BOOT COURTESY LIGHT
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | L | See M001E BODY COMPUTER (REAR) | 23 | ||
| 3 | LN | X | See M001E BODY COMPUTER (REAR) | 36 | |
| See D040 REAR/BOOT COUPLING | 9 | ||||
G040A – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | L | X | See M001E BODY COMPUTER (REAR) | 23 | |
| See D085A (TAILGATE) | 1 | ||||
| See G040B BOOT COURTESY LIGHT (REAR) | 2 | ||||
| 3 | LN | X | See M001E BODY COMPUTER (REAR) | 36 | |
| See D085A (TAILGATE) | 3 | ||||
| See G040B BOOT COURTESY LIGHT (REAR) | 3 | ||||
G040B – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | L | X | See M001E BODY COMPUTER (REAR) | 23 | |
| See D085A (TAILGATE) | 1 | ||||
| See G040A BOOT COURTESY LIGHT (REAR) | 2 | ||||
| 3 | LN | X | See M001E BODY COMPUTER (REAR) | 36 | |
| See D085A (TAILGATE) | 3 | ||||
| See G040A BOOT COURTESY LIGHT (REAR) | 3 | ||||
