H002 starting push button

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Manual electric controls › H002 starting push button

Connectors and pin-outsH002 starting push button

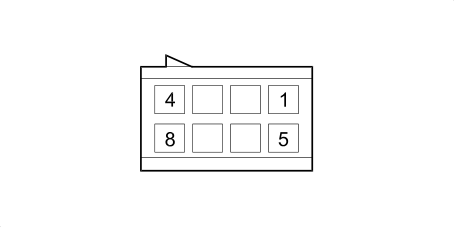

H002 STARTING PUSH BUTTON

from 01/06

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		A	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	3
				See D047 CLOCK SPRING COUPLING	5
				See P020A RADIO (DASHBOARD)	4
				See D075 RADIO PHONE COUPLING	7
2		N		See C020 PASSENGER SIDE DASHBOARD EARTH	4
3		AB		See M089 STEERING LOCK CONTROL UNIT (NBS)	B2
4		RV		See M089 STEERING LOCK CONTROL UNIT (NBS)	B6
5		AG		See M089 STEERING LOCK CONTROL UNIT (NBS)	A8
6		AN		See M089 STEERING LOCK CONTROL UNIT (NBS)	B7
7		CB		See M089 STEERING LOCK CONTROL UNIT (NBS)	C2

up to 12/05

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		A	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	3
				See D047 CLOCK SPRING COUPLING	5
				See P020A RADIO (DASHBOARD)	4
				See D075 RADIO PHONE COUPLING	7
2		N		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	9
3		AB		See M089 STEERING LOCK CONTROL UNIT (NBS)	B2
4		RV		See M089 STEERING LOCK CONTROL UNIT (NBS)	B6
5		AG		See M089 STEERING LOCK CONTROL UNIT (NBS)	A8
6		AN		See M089 STEERING LOCK CONTROL UNIT (NBS)	B7
7		CB		See M089 STEERING LOCK CONTROL UNIT (NBS)	C2
